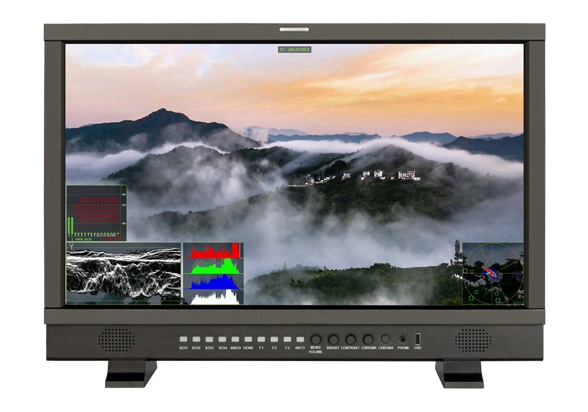

BM-U243 23.8-inch 4K 12GSDI Studio LCD Monitor

› 23.8-inch LCD Panel, 3840×2160 resolution

› 12G-SDI / Quadlink 3G-SDI / HDMI2.0

› SFP Fiber 12G input converted to 12GSDI out

› 3DLUT Auto Self-calibration without PC

› Audio/Video 0 latency for lip-sync

› HLG/PQ HDR capable

› Built-in Multi camera Delog LUTs

› User 3DLUTs upload via USB

› Waveform / Vector / Histogram

› Focus assist / False color / Zebra

› 16-ch audio meters / Lissajous

› IP webserver remote control

› TSL UMD and text TALLY display

› USB firmware upgrade


Features

23.8-inch 4K LCD Monitor

UHD panel, 94.1% DCI-P3

BM-U243 adopts a 23.8 -inch 10-bit LCD panel, UHD 3840×2160 resolution, 300nit LED backlight, 1000:1 contrast, 100% REC709 and 94.1% DCI-P3 color gamut. The viewing angle is Horizontal: 178° / Vertical: 178°.



Multi 4K Interfaces

BM-U243 Monitor supports the following 4K interfaces:
12GSDI (SDI 1&2)
Quadlink 3GSDI (SDI 1-4)
HDMI 2.0 (4K60P)
SFP Fiber 12G (Output by 12GSDI)

* The Quadlink 3GSDI supports both Quad mode and 2SI interleave mode;
* The SFP optical fiber adaptor is optional purchased.



HDR Monitoring

BM-U243 support HLG (Hybrid Log Gamma) and Dolby Vision PQ HDR monitoring.

3DLUT Auto Self-Calibration

By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port.
The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically.
Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0

Audio/Video Zero Latency

Support Zero latency mode (less than 1/100 frame) under 4K input sources, for special image processing mode for lip-sync monitoring.

De-log 3DLUTs

User 3DLUT cube upload

The monitor has built-in multi camera logs to Rec 709 conversion 3DLUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

Multiple Video Analysis Patterns

Audio Meters and Lissajous

Support Max 16-ch embedded audio meters display, with VU/PPM, and display audio abnormal alert. Support select any 2 channels audio to output via speaker or 3.5mm headphone socket. Support audio Lissajous pattern display for post production.

Webserver IP Remote Control

BM-U243 supports webserver remote control by Ethernet LAN connection.
Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

LCD Performance

Size

23.8 inches

Display area

518.4×324mm

Resolution

3840×2160

Aspect ratio

16:9

Brightness

300nit

Contrast

1000:1

Color depth

1.073G colors, 10 bit

Signal process

18 bit

Viewing angle

178°(H)∕178°(V)

Input

BNC ×2

12G/6G/3G/HD/SD-SDI input

BNC ×2

3G/HD/SD-SDI input

HDMI ×1

HDMI 2.0 input

SFP ×1

Optical Fiber 12G input (By optional SFP adaptor)

RS485 ×1

TSL 3.1/4.0 UMD input

RS485 ×1

GPI (Tally) input

RJ45 ×1

1000M Ethernet input for Webserver IP control

Output

BNC ×2

12G/6G/3G/HD/SD-SDI loop output, SFP Fiber input to 12G output

BNC ×2

3G/HD/SD-SDI loop output

RS485 ×1

TSL 3.1/4.0 UMD output

Analog audio

3.5mm headphone and speaker

Video Format

SDI 1&2, SFP

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)

SDI 3&4

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94) 576i (50)

Quad Link SDI (Each channel)

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

HDMI

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

General

Input voltage

DC 12V-17V, AC 100-240V, 50/60Hz

Power consumption

70W

Working temperature

0°C~+50°C

Working humidity

10%~90%

Storage temperature

-15°C~+60°C

Storage humidity

10%~90%

Dimensions

576.2×387.3×97.9mm

Net weight (main body)

9.5kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

  • Desktop feet

  • S-7004S (V-mount) / S-7004A (Gold mount) plate

  • S-7004S

    V-mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable.
  • S-7004A

    Gold mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable.
  • BM-U173

    17.3-inch 4K 12GSDI Studio LCD Monitor
