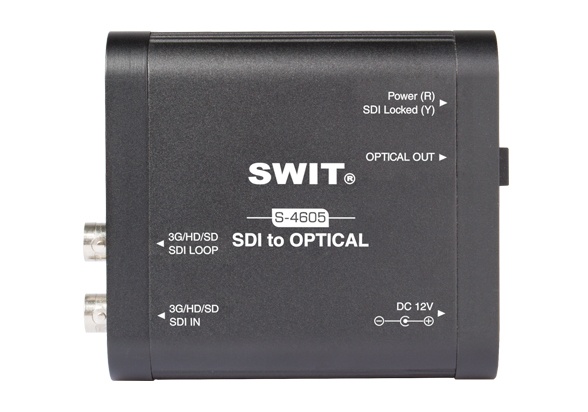

S-4605 SDI to Optical Converter

› Portable 3G/HD/SD-SDI to Optical Fiber Converter

› 1 SDI input, 1 Fiber output, and 1 SDI loop output

› Single mode Optical Fiber, LC connector

› Max 20km reliable transmission

› Support hot swap of the optical module

› Power / SDI input status indicator

› Pole-tap 6-18V DC power input

› Heavy duty aluminium housing

› Bottom screw threads for installing

Features

Portable Mini Converter

SDI to Optical Fiber

S-4605 is a mini converter for SDI to LC single mode Optical Fiber conversion, widely used on trans- mitting SDI in a long distance.

Input and Output

S-4605 offers:
1× 3G/HD/SD-SDI input
1× 3G/HD/SD-SDI loop output (Reclocked)
1× LC Optical Fiber output

Encoder and Decoder

Working together with S-4606

The S-4605 convert SDI to Optical fiber at encoder end, and you can use SWIT S-4606 to convert Optical fiber back to SDI at the decoder end. The reliable transmission distance is up to 20km.

Status Indicators

Power / Input

S-4605 provides 2 LED indictors, to check if the power is connected, and if the input SDI is recognized.

Power Supply

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing

The S-4605 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation

S-4605 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and bind- ing the BNC cables and optical fibers.

Input

BNC×1

3G/HD/SD-SDI input

Output

BNC ×1

3G/HD/SD-SDI loop output

LC ×1

Converted Optical fiber output

Video Format

SDI

1080p (60 / 59.94 / 50)

1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

Optical Fiber

SMPTE 297-2006
1310nm wavelength

General

Power

≤3W

Working Voltage

DC 6-18V

Working Environment

Temperature: 0°C-+70°C, Humidity:10%-90%

Dimensions

98×84×29 mm

Net weight

Net 220g; With package 0.5kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

  • Installation plate

  • AC-DC Adaptor
