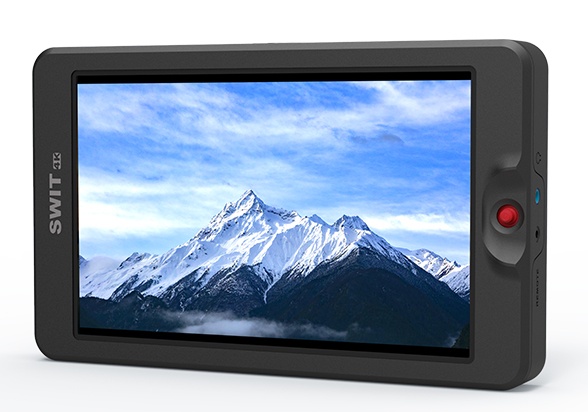

CM-S75F 7 inch 3000nit Super Bright HDR LCD Monitor

›  7-inch IPS LCD, 1920×1200 FHD

›  3000nit super bright, sunlight visible

›  PQ/HLG HDR monitoring

›  3G/HD/SD-SDI input and loop out

›  HDMI® 1.4 (4K30p) input and loop out

›  2x 4x Quick zoom-in and Pan

›  Peaking focus assist and precision adjust

›  Waveform / Vector / Histogram

›  Build-in 30 kinds of De-log 3DLUTs

›  User 3DLUT upload by SD card

›  2-ch HDMI® audio meters display

›  Super False color, Zebra stripes, Anamorphic

›  Built-in NP-F plate, V-mount for option


3000nit Super Bright

Sunlight visible, PQ/HLG HDR

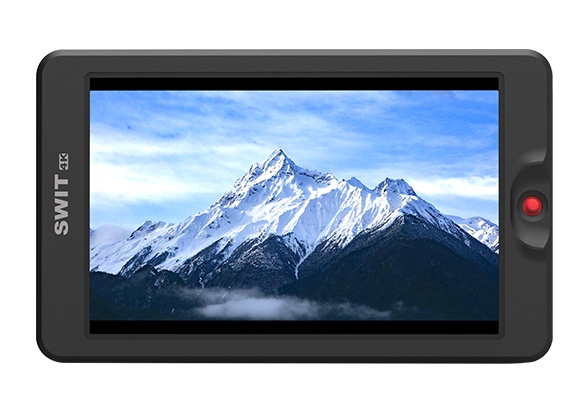

The CM-S75F adopts a 7-inch super high bright LCD, the Max brightness is 3000nit, visible under sunlight, and built-in PQ, HLG HDR.
The native resolution is Full HD 1920×1200, contrast 1200:1

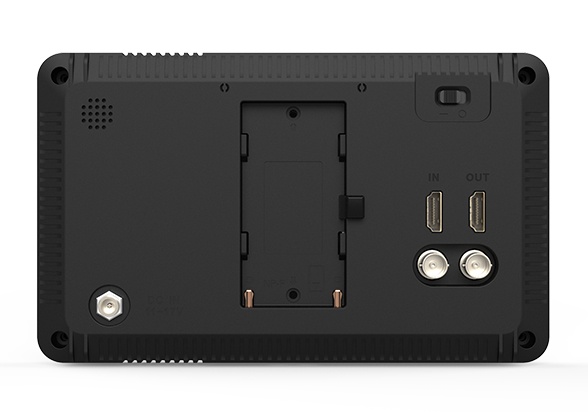

Input/Output Interfaces

3G-SDI and 4K-HDMI®

CM-S75F monitor supports:
3G/HD-SDI input × 1
3G/HD-SDI loop output × 1
HDMI® 1.4 (4K30p) input × 1
HDMI® 1.4 (4K30p) loop output × 1
3.5mm embedded audio output

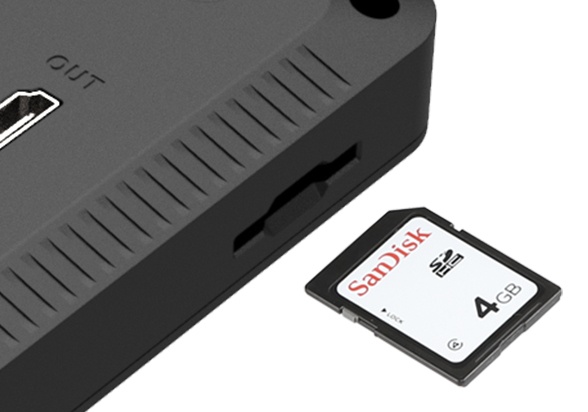

SD card input for 3DLUT upload and Firmware upgrade


Single Joystick Operation

The monitor operation can be easily realized by only one Joystick:
Up: Quick Zoom-in mode
Down: Quick adjust backlight
Long Down: Delete current scene
Left/Right: Preset Scenes switching
Long Left: Enter Menu system
Long Right: Add a new scene
Press down: Edit tools shortcuts / Confirm settings

Scene Layout Edit and Switch

Different from the traditional multi-buttons monitors, the CM-S75F adopts the preset scenes and switching operations. You can add up to 8 scenes, and add 8 function shortcuts to each scene. Scroll the joystick left / right to switch between the layout scenes easily, instead of complex menu buttons operations.

Built-in De-log 3DLUT

CM-S75F has built-in HLG, PQ3000, PQ10000 HDR 3DLUTs and 30 kinds of Rec709 De-log 3DLUT, Includes S-log2/3, V-log, C-log1/2/3, Log-C, J-log1, RedLog, BMD, FujiFilm, GoPro, DJI etc, to convert log mode to REC709 for all major cameras.

User 3DLUT upload

User 3DLUT cube or calibration 3DLUT cube can be uploaded to the monitor by SD card. Support 17^3, 33^3 and 65^3 cubes. Max 16 user 3DLUTs can be restored.


Enables de-squeeze the image from a camera utilizing anamorphic lens, Aspect Formats:
x1.3 Anamorphic De-Squeeze
x2.0 Anamorphic De-Squeeze
x2.0 MAG Anamorphic De-Squeeze

Quick Zoom-in and Pan

Scroll the joystick up, to zoom-in the image by 2x or 4x; and during zoom-in mode, press the joystick, you can easily pan the image up/down/left/right by the joystick.

Video Tools

R/G/B 3-color Focus assist
Aspect ratios, safe area (action & title)
Zebra stripes with level adjustment
Waveform, Vector scope, Histogram
Crosshatch 3x3 to 10x10 selectable
2-ch SDI/HDMI embedded audio meters

Super False Color Exposure Assist

Besides normal spectrum false color, the CM-S75F supports more powerful Super False Color mode, including under-exposure / Over-exposure / 18 degree grey / Skin tone indications, to help you to get a correct exposure easily.
The exposure indicators are calculated for different cameras. You can select the log curves from SONY 709/S-log2/3, Panasonic 709/V-log, BMD/4K, Canon C-log2/3, ARRI 709/Log-C, REDLogfilm, RED RG3/4/RL3G10.

Power Input

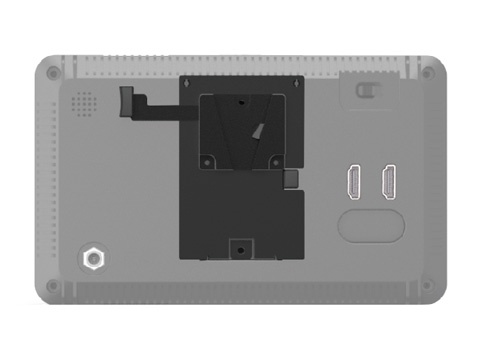

CM-S75F has a built-in NP-F DV battery slot, supports 11-17V DC-IN (5.5/2.1mm pole-tap), and provides an optional V-mount plate to install V-mount batteries.
The Max power consumption is 18.8W with full 3000nit backlight.

Reviewed by Matthew Allard

See CM-S75F/C newsshooter review, by Matthew Allard, the multi-award-winning ACS accredited freelance Director of Photography with 29 years' experience working.
Matthew has won 41 ACS Awards, including four prestigious Golden Tripods. In 2016 he won the Award for Best Cinematography at the 21st Asian Television Awards.

LCD Performance


7 inches

Display area




Aspect ratio



3000 nit




16.77 million colors

Viewing angle

Horizontal: 160°; Vertical: 120°


BNC ×1

3G/HD-SDI input

HDMI®-A ×1

HDMI 1.4 input

SD card ×1

3DLUT upload and Firmware upgrade


BNC ×1

3G/HD-SDI loop output

HDMI®-A ×1

HDMI® 1.4 loop output

3.5mm ×1

SDI, HDMI® embedded audio output


SDI, HDMI® embedded audio output

Video Format


2048×1080p (60 / 59.94 / 50)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
1035i (60 / 59.94)
720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)


4096×2160p (30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
480p / 576p


Input voltage

5.5/2.1mm Pole-tap DC 11-17V input; NP-F battery 6-8.4V input

Power consumption

Max 18.8W

Working temperature


Working humidity


Storage temperature


Storage humidity




Net weight (main body)

Basic Package

Basic Package



Professional Package

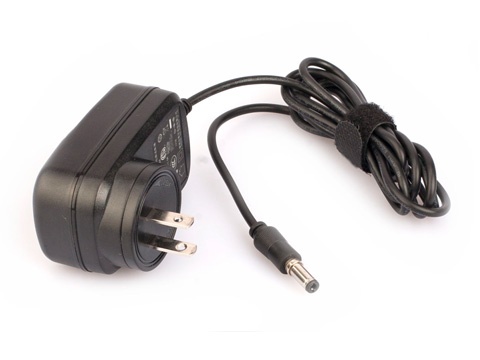

  • AC-DC Adaptor

  • Cold shoe to 1/4" Ball head

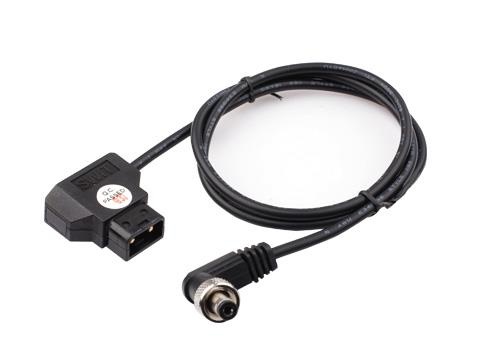

  • D-tap to lockable Pole-tap cable

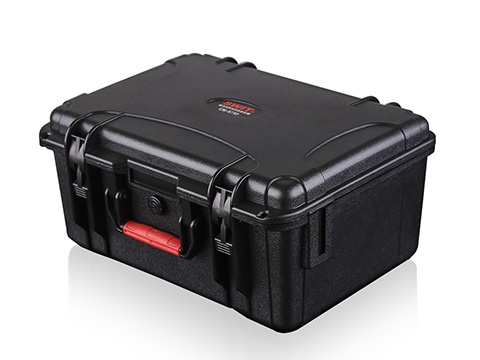

  • Carrying case

  • V-mount plate

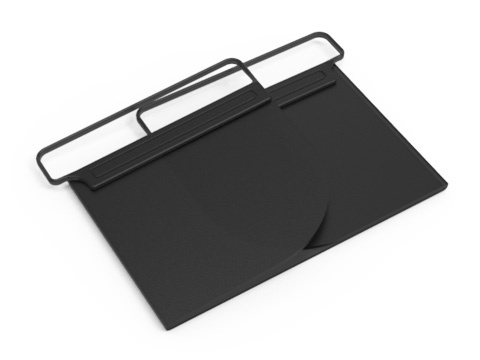

  • Sun hood

  • AC-DC Adaptor

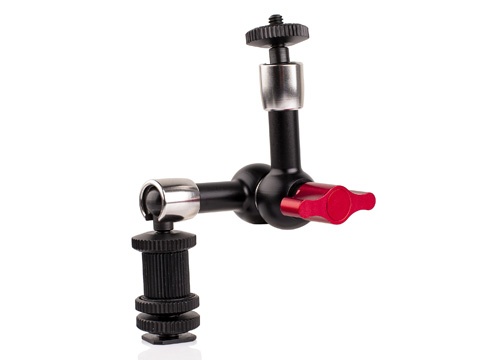

  • Cold shoe and 1/4" Arm Trestle

  • D-tap to lockable Pole-tap cable
