CM-S73H 7-inch 3000nit Super Bright LCD Monitor

›  7” non-glaring LCD, 1920×1200 resolution

›  3000nit super high bright

›  HDR capable: PQ / HLG / S-log3

›  2K/3G/HD/SD-SDI input & loop output

›  HDMI 2.0 (4K60p) input & loop output

›  16-ch embedded audio meters with alert

›  Select any 2 audio channels to output

›  9 steps quick zoom-in and mapping

›  Focus assist with precision adjustment

›  Build-in multi-camera logs to Rec.709

›  User 3DLUT cube file import by USB

›  On-screen TALLY display and GPI

›  Zebra stripes, False color, R/G/B/Mono

›  H/V delay, AFD, Timecode display

›  Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1

›  V/Gold mount or various DV plates option

›  USB firmware upgrade


Features

7-inch 3000nit Super Bright

PQ/HLG/S-log3 HDR capable

The CM-S73H adopts a 7-inch super high bright LCD, the Max brightness is 3000nit, viewable under sunlight, and support PQ, HLG, S-log3 HDR display.

The native resolution is Full HD 1920×1200, contrast 1200:1



Input/Output Interfaces

3G-SDI、4K-HDMI

CM-S73H monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1 (loop SDI IN1 only)
HDMI 2.0 (4K60p) input × 1
HDMI 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI embedded audio output



3DLUT Log to Rec709

User LUT cube import

CM-S73H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

Embedded audio monitoring

Up to 16-ch meters with alert and select output

CM-S73H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

Peaking, R/G/B/Mono only, Zebra, False color

Timecode, H/V delay, AFD, Scale Markers

On-screen Tally

CM-S73H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.

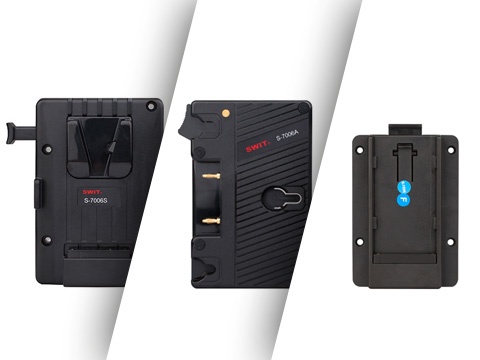

Various DV Plate Install

V-mount / Gold mount / DV mount

CM-S73H supports DC 6.5-17V input via a 5.5mm lockable DC socket, and can install SWIT S-7006 series V-mount / Gold mount / DV battery plates to power.

*Using S-7006F/D/B/I/C, the Max brightness will be reduced to 2000nit.




USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into CM-S73H monitor to upgrade, without PC connection.

LCD Performance

Size

7 inches

Display area

151.2×94.5mm

Resolution

1920×1200

Aspect ratio

16:9 (4:3 adjustable)

Brightness

Max 3000cd/m2

Contrast

1200:1

Color

16.77 million colors

Viewing angle

Horizontal: 160°; Vertical: 160°

Input

BNC ×2

2K/3G/HD/SD-SDI input

HDMI-A ×1

HDMI 2.0 input

USB ×1

Firmware upgrade

RS485 ×1

GPI (Tally) input

Output

BNC ×1

2K/3G/HD/SD-SDI loop output

HDMI-A ×1

HDMI 2.0 loop output

3.5mm ×1

SDI, HDMI embedded audio output

Video Format

SDI

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

2048×1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

HDMI

4096×2160p (60 / 50 / 30 / 25 / 24)
3840×2160p (60 / 50 / 30 / 25 / 24)
480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

General

Input voltage

DC / battery 6.5V-17V

Power consumption

≤26W

Working temperature

-10°C~+50°C

Working humidity

10%~90%

Storage temperature

-15°C~+60°C

Storage humidity

10%~90%

Dimensions

187×137×41mm

Net weight (main body)

500g
Basic Package

Basic Package

MSRP

$8222

Professional Package

MSRP

$8222

MSRP

$8222

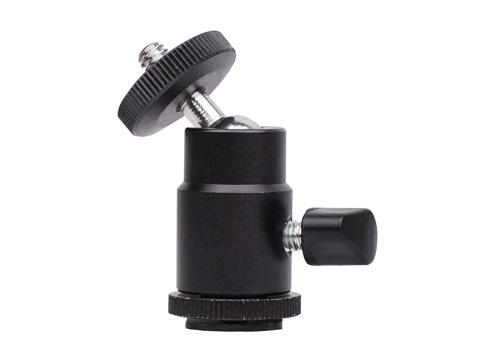

  • Cold shoe to 1/4" Ball head

  • S-7006 battery plate (S/A/U/F/D/B/V/I/C/E selection)

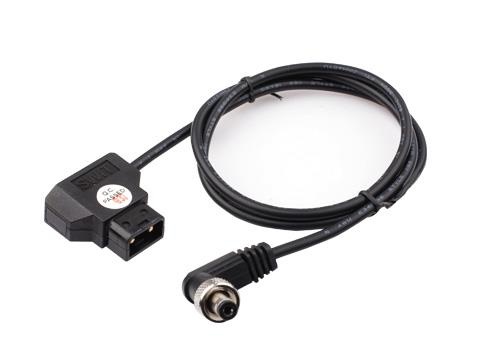

  • D-tap to lockable Pole-tap Cable

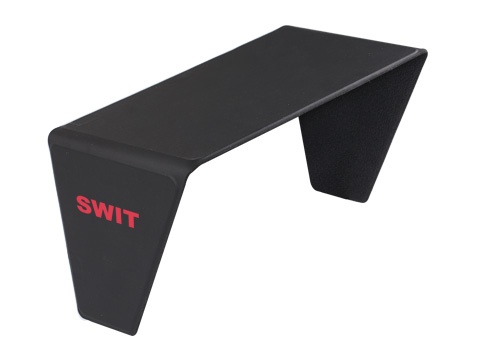

  • Sun hood

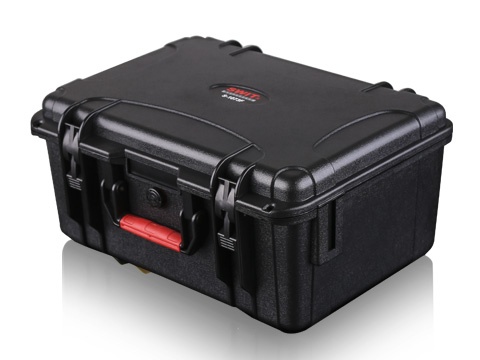

  • Carrying case

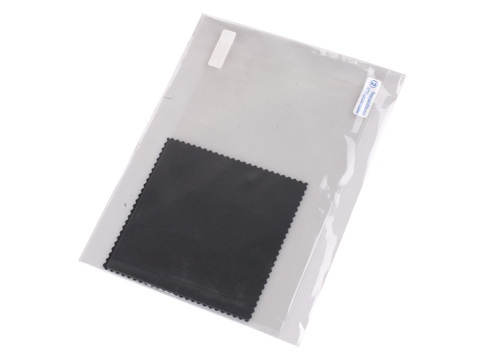

  • LCD Protector

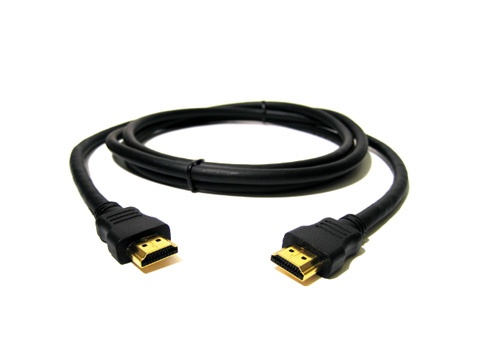

  • HDMI A-A cable

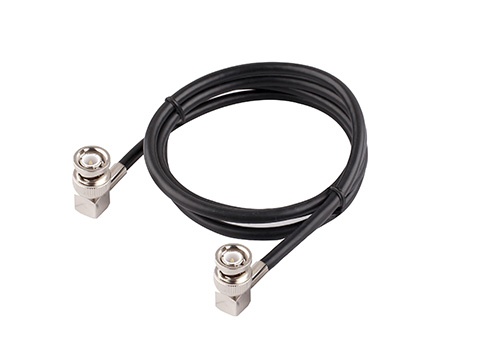

  • BNC HD cable

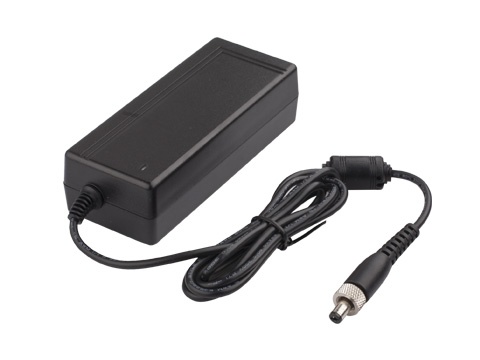

  • AC-DC Adaptor

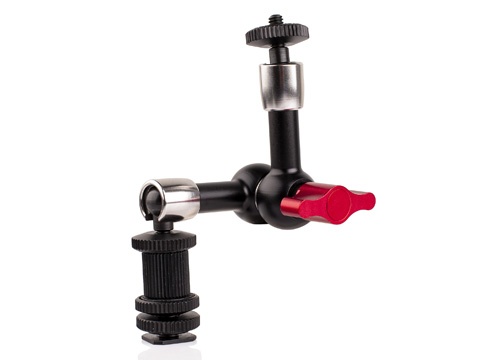

  • Cold shoe and 1/4" Arm Trestle

  • S-7006 battery plate (S/A/U/F/D/B/V/I/C/E selection)

  • D-tap to lockable Pole-tap cable

  • Sun hood

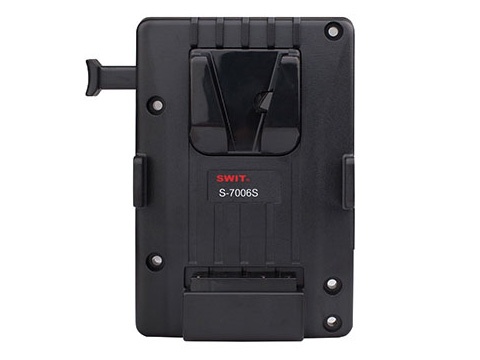

  • S-7006S

    V-mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable.

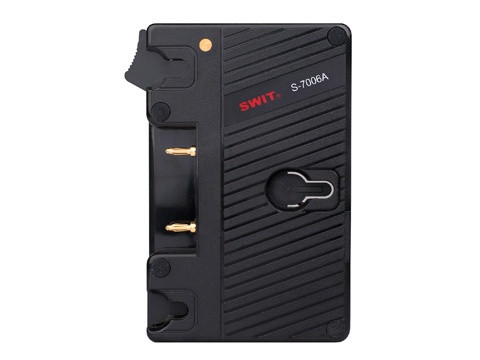

  • S-7006A

    Gold mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable.

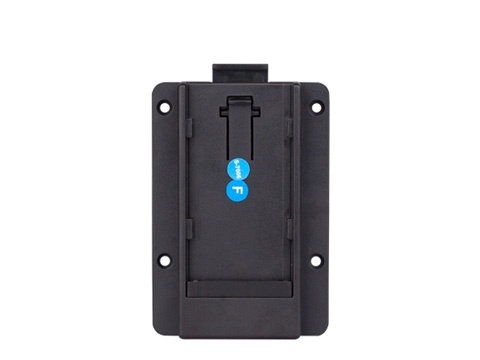

  • S-7006F

    SONY NP-F970/770 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable.

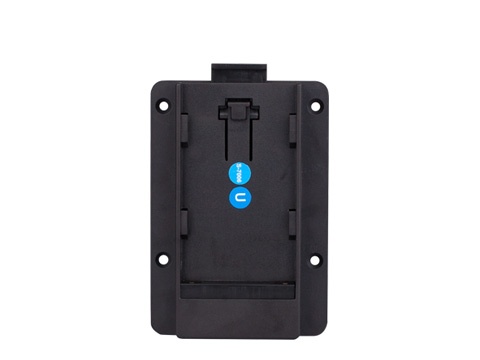

  • S-7006U

    SONY BP-U30/U60 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable.

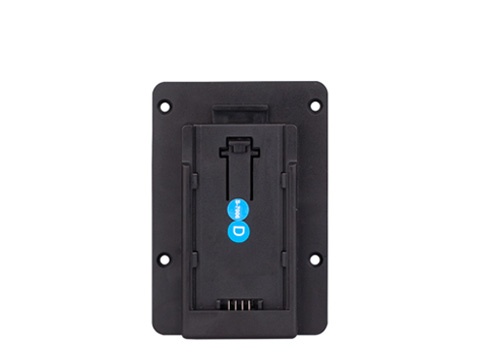

  • S-7006D

    Panasonic CGA-D54, VW-VBD58, AG-VBR59 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable.

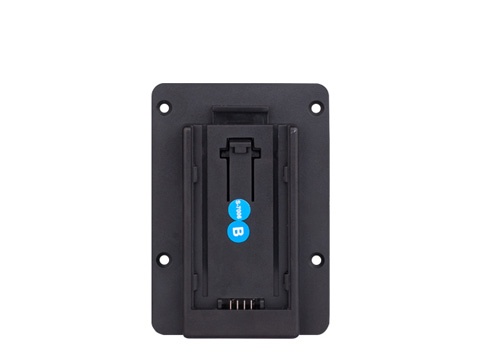

  • S-7006B

    Panasonic VW-VBG6 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable.

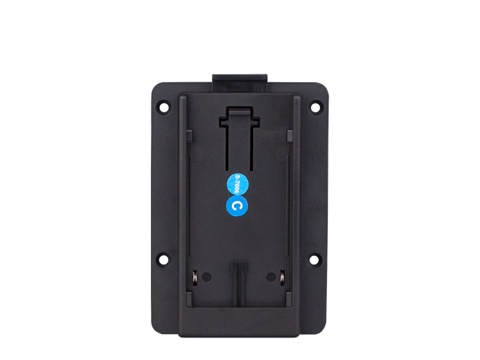

  • S-7006C

    Canon BP945/970G DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable.

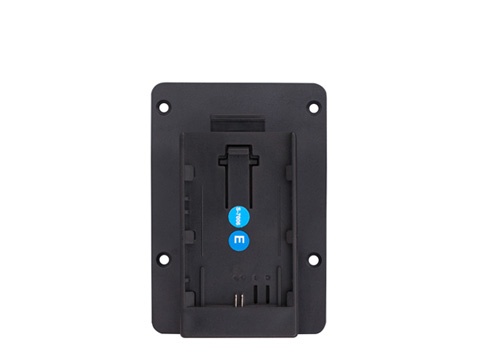

  • S-7006E

    Canon DSLR LP-E6 Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable.

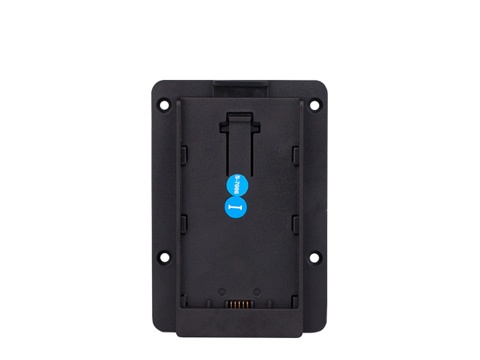

  • S-7006i

    SSL-JVC50 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable.

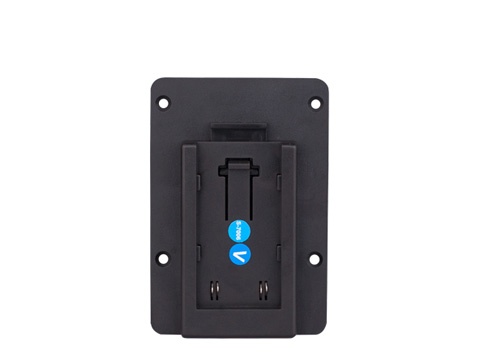

  • S-7006V

    JVC BN-VF823 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable.
