› Encode camera 3G-SDI to high bandwidth NDI®
› Decode PGM NDI® source to HDMI® output
› Local video and PGM return video switching
› Intercom with ET-N80 control panel
› Intercom mute, call, headphone connector
› On-board TALLY and external TALLY light
› DC 11-17V 1.5A and V-mount power input
› Support 42-57V 0.5A PoE power input
› Provide clamp to fix RJ45 network cable
› 15mm rod rail system to install ENG cameras
› Webserver configuration and firmware update
NDI® EFP Production System
EC-N200 is the camera adaptor of SWIT NDI® EFP
Multi-camera Production System. The camera adaptor
will encode camera SDI to high bandwidth NDI®, and
also decode PGM NDI® source to display as return
video. The system has on-board and external TALLY
light and support full duplex intercom between
cameramen and director.
Full Duplex Intercom
The camera adaptor EC-N200 supports
5-pin headset connection, and working
together with SWIT ET-N80 Intercom
control panel, the system supports full
duplex intercom between director and
cameramen. You can control intercom
volume and initiate the call to director
on the camera adaptor.
Interfaces
The EC-N200 camera adaptor supports 3G-SDI
input and loop out, high bandwidth NDI® connected
to the network, and HDMI® monitor output for local
video and return video.
The camera adaptor provides 5-pin XLR headset
connector and 3.5mm jack for external TALLY light,
powered by V-mount or Gold mount, or through
5.5mm DC-IN, or powered by PoE.
TALLY Lights
There’ s an on-board bi-color TALLY light to
display Red (PGM); Green (PVW). The package
also provides an external TALLY light to install
on the front of the camera, for the anchor.
Return NDI® Video Switch
The camera adaptor also decode the PGM NDI® source
and output through HDMI®. You can use any monitors
with HDMI® to display local video and return video in
Pic-in-Pic mode, or full screen return video mode, by
press the Return button on the camera adaptor.
RJ45 Cable Clamp
The camera adaptor provides a clamp to fix any
standard RJ45 cables, which ensure the reliability
of connection during video productions.
15mm Rod System
The EC-N200 camera adaptor package provides the 15mm Rod system to install
between camera and tripod. The Rod system is universally compatible with all kinds
of ENG cameras and video tripods, and easy to install.
System Diagram
Video Input | 3G/HD/SD-SDI ×1 |
Video Output | 3G/HD/SD-SDI ×1 HDMI® ×1 High bandwidth NDI ×1 |
SDI Format | 1080p (60/59.94/50/30/29.97/25/23.98); 1080i (60/59.94/50); 720p (60/59.94/50) |
NDI Format | 1080p (60/59.94/50/30/29.97/25) 1080i (60/59.94/50) 720p (60/59.94/50) |
HDMI® Format | 1080p (60/59.94/50/30/29.97/25/23.98); 1080i (60/59.94/50) 720p (60/59.94/50) |
NDI bandwidth | 1080p 150Mbps - 200Mbps |
NDI Codec latency | 60ms |
DC/Battery Input | 11-17V, 1.5A |
DC output | 14.4V D-tap×1 8.4V(Reg) 3A Pole ×1 |
PoE Power Input | 42-57V, 0.5A |
Power Consumption | 16W |
| Working Temperature | 0-40°C |
| Dimension | 139.23×176×52.5mm |
Net weight | 742g |
MSRP
MSRP
MSRP
-
5-pin single ear headset
-
15mm rods rail with camera base
-
15mm rail clamp (Pre-installed)
-
External Tally Light with cable and codeshoe
-
RJ45 network cable fixer (Pre-installed)
-

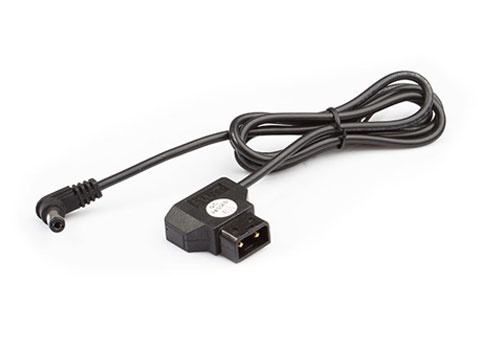

D-tap to 5.1/2.1mm DC cable
-
Carrying case
-
