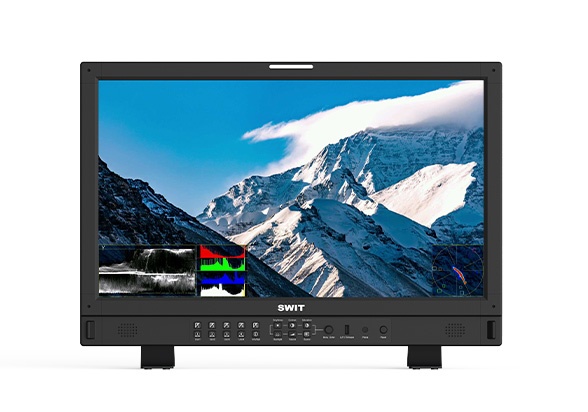

BM-U245 23.8-inch 4K/8K 12GSDI Studio Monitor

› 23.8-inch LCD Panel, 3840×2160 resolution

› 12GSDI 4-in 4-out, 8K input ready, HDMI®2.0 input

› 12GSDI via SFP Fiber input (Optional)

› ST2110 IP via SFP Fiber input (Optional)

› 3DLUT Auto Self-calibration without PC

› Audio/Video 0 latency for lip-sync

› HLG/PQ/S-log3 HDR EOTF

› Payload ID auto setting

› Built-in Multi camera Delog LUTs

› User 3DLUTs upload via USB

› Waveform / Vector / Histogram

› Focus assist / False color / Zebra

› 16-ch audio meters / Lissajous

› IP webserver remote control

› TSL UMD and text TALLY display

› USB firmware upgrade

Features

23.8-inch 4K Monitor

UHD panel, 94.1% DCI-P3

BM-U245 adopts a 23.8-inch 10bit LCD
panel, UHD 3840×2160 resolution, 300nits LED
backlight, 1000:1 contrast, 94.1% DCI-P3 color gamut. The viewing angle is H178° / V178°.


Multi 4K/8K Interfaces

12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K
HDMI® 2.0 (4K60P)

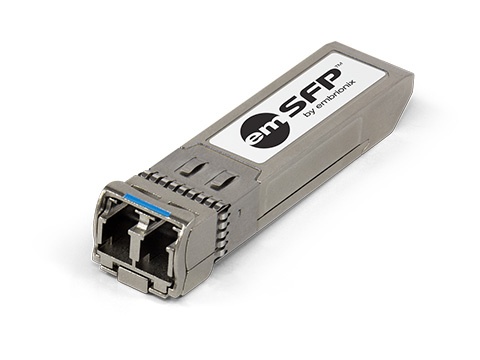

12GSDI via SFP Fiber (Optional)

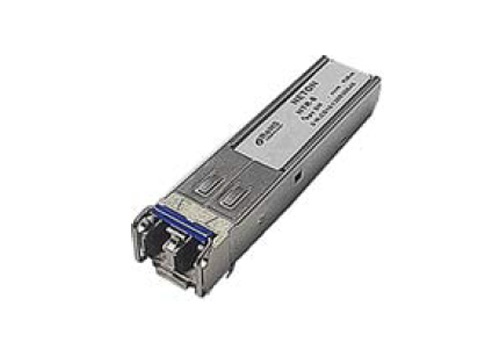

ST2110 IP via SFP Fiber (Optional)

* The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode;
* The SFP optical fiber adaptor is optional purchased.


Display Modes


Supports Single link 4K input including 12GSDI, HDMI®2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs.
You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.

HDR/SDR EOTFs

BM-U245 provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, BT.709, DCI-P3 and BT.2020.

Payload ID Auto Setting

Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID info.

Multi CG & EOTF Viewing


Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.

3DLUT Auto Self-Calibration

By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port.
The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically.
Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0

Audio/Video Zero Latency

Support Zero latency mode (less than 1/100 frame) under 4K input sources, for special image processing mode for lip-sync monitoring.

HDR/SDR De-log LUTs

The monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc.
You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files.

Multiple Video Analysis Patterns

Audio Patterns

Max 16-ch embedded audio meters display, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.
Moreover, BM-U monitors support Lissajous and 5.1+2 surround sound patterns.

Eye Pattern

Built-in eye pattern to check input video transmission quality via SDI cable, especially the 12GSDI quality.

Webserver IP Remote Control

BM-U245 supports webserver remote control by Ethernet LAN connection.
Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

LCD Performance

Size

23.8 inches

Display area

527.04×296.46mm

Resolution

3840×2160

Aspect ratio

16:9

Brightness

300nits

Contrast

1000:1

Color depth

1.073G colors, 10-bit

Signal process

18-bit

Viewing angle

178°(H) /178°(V)

Input

BNC ×4

12G/6G/3G/HD/SD-SDI input

HDMI® ×1

HDMI® 2.0 input

SFP ×1

Optical Fiber input (By optional SFP adaptor)

RS485 ×1

TSL 3.1/4.0 UMD input

RS485 ×1

GPI (Tally) input

RJ45 ×1

1000M Ethernet input for Webserver IP control

Output

BNC ×4

12G/6G/3G/HD/SD-SDI loop output

RS485 ×1

TSL 3.1/4.0 UMD output

Analog audio

3.5mm headphone and speaker

Video Format

SDI 1/2/3/4

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)

Quad Link 4K (Each channel)

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

Quad Link 8K (Each channel)

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

HDMI®

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

General

Input voltage

DC 12V-17V, AC 100-240V, 50/60Hz

Power consumption

70W

Working temperature

0°C~+50°C

Working humidity

10%~90%

Storage temperature

-15°C~+60°C

Storage humidity

10%~90%

Dimensions

580.9×392.3×88.8mm

Net weight (main body)

Net 8.87kg; With package 12.7kg
Basic Package

MSRP

MSRP

MSRP

  • V-mount or Gold mount plate

  • Desktop feet

  • X-rite i1 Display

    Colormeter Probe, EODIS3-DCOE, the dedicated OEM version for SWIT monitors
  • BM-U275HDR

    27-inch 4K/8K 12GSDI HDR Studio Monitor

    UHD panel, 1000nits PQ/HLG, 4x12GSDI (8K), HDMI® 2.0, SFP Fiber, Self Calibration

  • BM-U175

    17.3-inch 4K/8K 12GSDI Studio Monitor

    UHD panel, 4x12GSDI (8K), HDMI® 2.0, SFP Fiber, HLG/PQ-HDR, Self Calibration

  • BM-U245HDR

    23.8-inch 4K/8K 12GSDI HDR Studio Monitor

    UHD panel, 1000nits PQ/HLG, 4x12GSDI (8K), HDMI® 2.0, SFP Fiber, Self Calibration
