S-8183S+ 270Wh High Load V-mount Battery Pack
› High-load Li-ion cells
› At east 250W, 20A constant load
› 14.4V, 270Wh capacity
› 6A super fast charging
› D-tap output socket
› 4-level LED power indicator
› V-mount connection
› Multiple circuit protections
250W/20A High-Load
Even only 1% capacity remains, S-8183S+ still can output at least 250W/20A high load, for high power equipment like cine cameras and cine lights, and will not reduce battery life during long time high power output.
270Wh High Capacity
Updated from S-8183S, the S-8183S+ provides 270Wh/18.75Ah higher capacity, to prolong the running time on equipments.
6A Fast Charging
S-8183S+ supports 6A fast charging, to save more
than 50% charging time, can be charged from 0 to
80% after 2.5 hours, and fully charged within 3.8
hours.
Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8183S+ battery, for DC14.4V (Nominate) connection, such as on-camera
lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.
4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power
indicators to check the battery remaining capacity. You
can get a quick view of capacity before using.

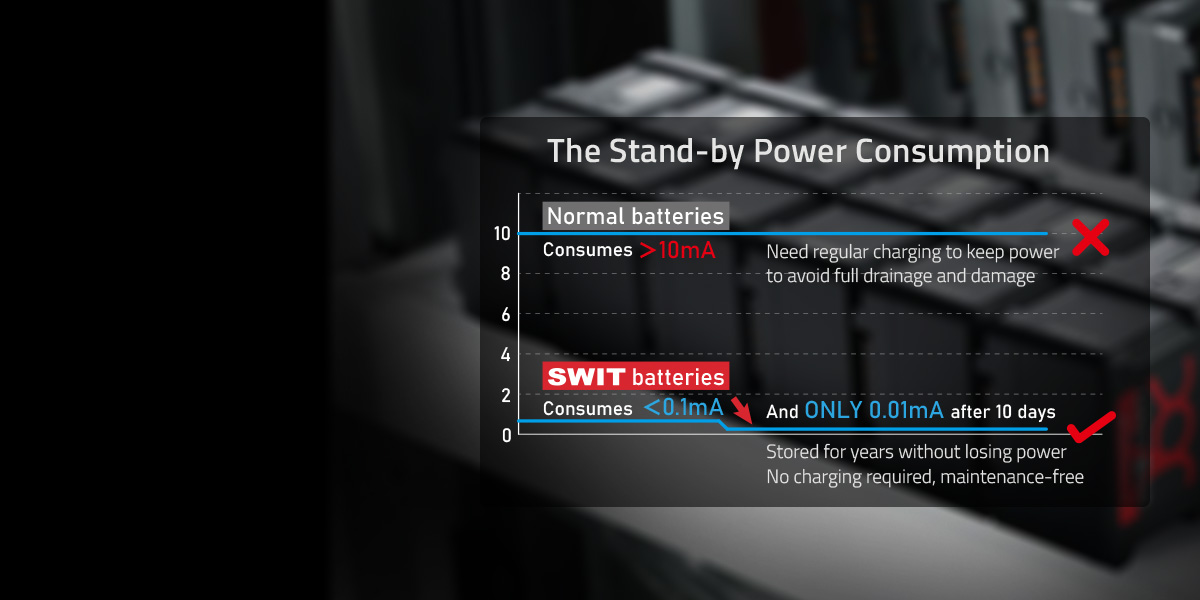

Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Nominal Voltage | 14.4V |
Capacity | 270Wh/18.75Ah |
Max output power | In total:250W |
| Electrodes:250W,20A | |
| D-tap:120W,10A | |
Mount Type | V-mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 1.3kg; With package1.45kg |
Dimensions | 165×90×66mm |
MSRP
MSRP
MSRP
-
S-8183A+
270Wh High Load Gold Mount Battery Pack
High Load Li-ion cells with Max 250W, 20A constant output; D-tap DC output, LED power indicators
We provide 2 year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Battery performance declines, cannot be charged or any charging errors caused by using third-party chargers.
(3) Battery capacity naturally decreased after a certain cycle times of charging and discharging.
(4) The capacity loss caused by over 6-month’s storage, and not charging the battery to re-active it during the period.
(5) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(6) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
