S-3602D 2-ch Panasonic VW-VBD and CGA series Charger and Adaptor
› Charger for SWIT S-8D58/8D98 battery
› Charger for SWIT S-8D62 battery
› Compatible with Panasonic VW-VBD58
› Compatible with Panasonic AG-VBR59
› Compatible with Panasonic D54/D28
› 2-ch simultaneous charging
› 2 DC adapting output sockets
› 4-level LED charging indicators
Panasonic DV battery Charger
For VW-VBD58, AG-VBR59 and CGA-D54/D28

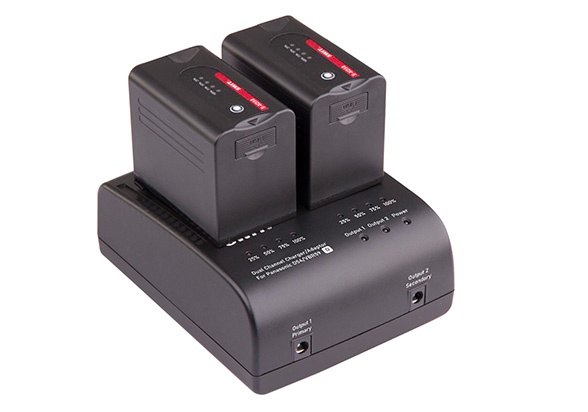

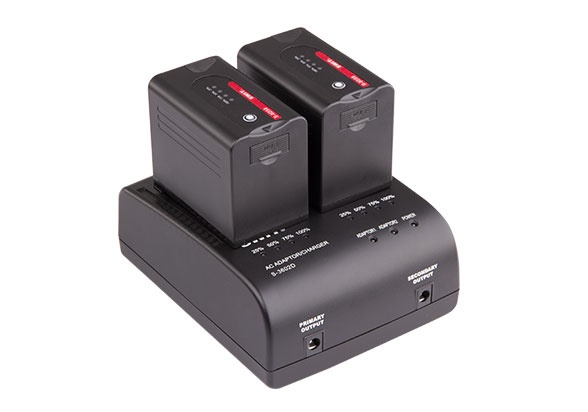

S-3602D is a dual channel charger for SWIT S-8D98, S-8D58
and S-8D62, and compatible with Panasonic VW-VBD58,
AG-VBR59 and CGA series D54, D28 DV batteries.
Dual Channel Simultaneous Charging
S-3602D has 2 charging channels, with DC 8.4V, 1.8A
charging output for each channel, and can charge 2 batteries simultaneously.
The 4-level LED charging indicators are provided for each
channel, which indicate the real time capacity by percentage
when charging.
AC-DC Adapting Output

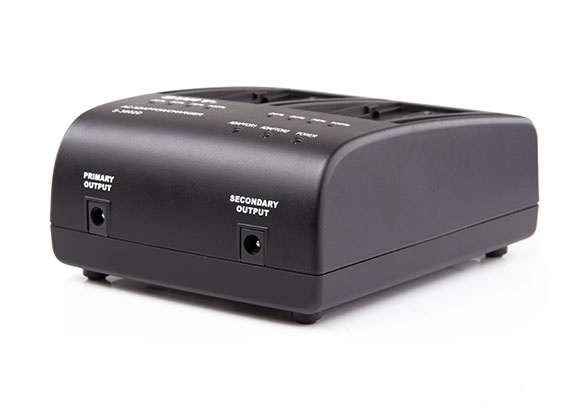

S-3602D has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs
work simultaneously and provides DC 8.4V, 3.5A in total.

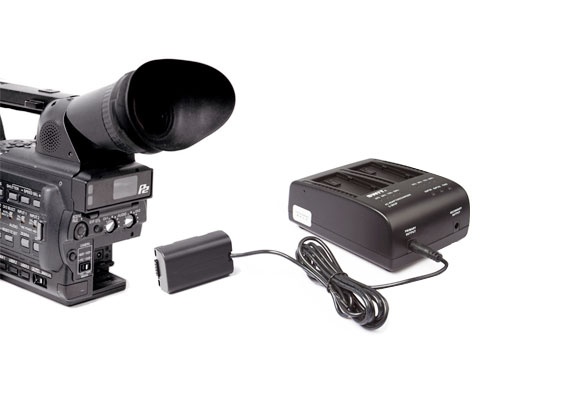

Optional accessory: S-7500P dummy Panasonic CGA series battery adaptor for adapting Panasonic DV cameras that use VW-VBD58, AG-VBR59 or CGA-D54/D28
series batteries, or the equipments with the above battery mounts.
Power input | AC 100V-240V 50/60Hz |
Charging output | DC 7-8.4V, 1.8A×2 |
Adapting output | DC 8.4V, 3.5A |
Applicable battery | SWIT S-8D98, S-8D58, S-8D62 |
Panasonic VW-VBD58, AG-VBR59, CGA D54S/D28S | |
Dimensions | 136×110×47mm |
Net weight | Net 0.36kg; With package 0.65kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

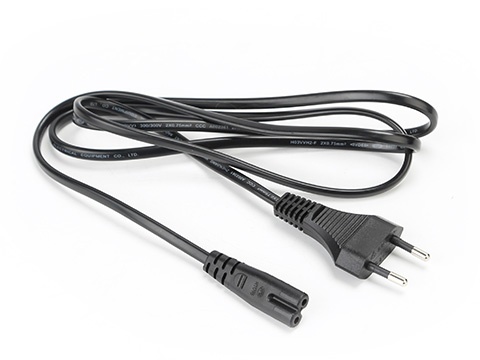

AC power cable
-
S-7500F
SONY NP-F Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SONY NP-F970/770 fit -
S-7500E
Canon LP-E6 Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon LP-E6 fit -
S-7500P
Panasonic Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Panasonic CGA-D54, VW-VBD58, AG-VBR59 fit -
S-7500C
Canon BP Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon BP-945 BP-970G fit -
S-7500i
JVC SSL Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SSL-JVC50 type fit
We provide 2 years conditional warranty for battery chargers and power adaptors
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Damage caused by input voltage beyond the limited range of AC 100V-240V.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
