S-8180A 220Wh High Load Gold Mount Battery Pack

›  High-load Li-ion cells

›  At least 200W, 16A constant load

›  14.4V, 220Wh capacity

›  D-tap output socket

›  4-level LED power indicator

›  Gold mount type connection

›  0.8m drop-off proof

›  Multiple circuit protections


Features

Adopt High-Load Li-ion Cells

Max 200W, 16A constant power output Perfect for high draw power application

Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be re- duced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely.
Using S-8180S high-load battery, you can get MAX 200W/16A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output.

220Wh / 15.3Ah High Capacity

Consists of 24pcs 18650 battery cells, and reaches 220Wh / 15.3Ah high capacity.
Can run approx 7 hours for normal 30W ENG cameras; and approx 2.5 hours for ARRI Alexa camera

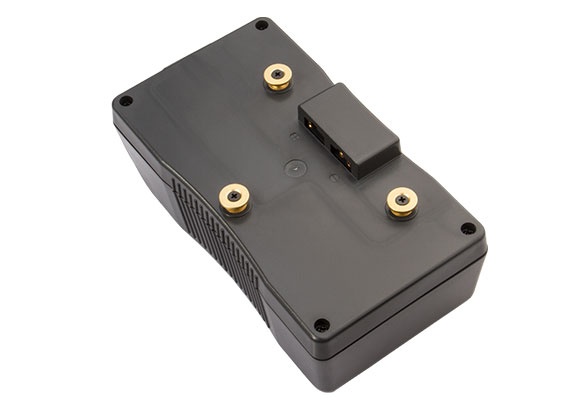

AntonBauer Gold Mount Connection

S-8180A is compatible with AntonBauer Gold mount type power system and we adopt the high quality connection bolts that ensure the reliable mounting.

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8180A battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

无标题文档

Nominal Voltage

14.4V

Capacity

220Wh/15.3Ah

Max output power

In total:200W

Electrodes:200W,16A
D-tap:120W,10A

Mount Type

Gold mount

Charging Temperature

0-40°C
      Discharging Temperature-20°C-50°C(Capacity and Max Load may decrease when operating below 0°

Net weight

Approx 1.3kg

Dimensions

165×90×68mm
