› Aluminum alloy heavy duty material
› Strong 23kg load
› 0.5m - 2m expansion length
› 7 steps counter balance adjust
› Stay in any position with precision
› Provide cable organizer on rear side
› Connect with hook by screw bolt
› Connect with studio light by screw bolt
0.5m-2m Studio Light Pantograph
GA-PT20P pantograph is an overhead support system that offers precise control over the positioning and orientation of studio lights. It helps videographers achieve the desired lighting effects by allowing them to easily adjust the height, angle, and distance of the light source from the subject.
The expansion length is 0.5m - 2m.
Counter Balance Adjustment
GA-PT20P pantograph provides 7 steps of counter balance adjustment, for different weight of the light fixtures. Max load 23kg.
Rear Cable Organizer
On the rear side of the pantograph, it allows you to fix light power cable or DMX cables on to each section, and when the light is moving up and down, the cables will be well organized, stretching together with the pantograph.
Precise Positioning
GA-PT20P allows precise positioning at any desired height from 0.5m to 2m, and you can easily adjust the pulling strength by the knobs on both sides of the top box.
Ceiling Hook Connect
GA-PT20P pantograph can be connected with ceiling hook easily by screw bolts. SWIT provides the hook GA-DG75 perfectly matches with the pantograph.

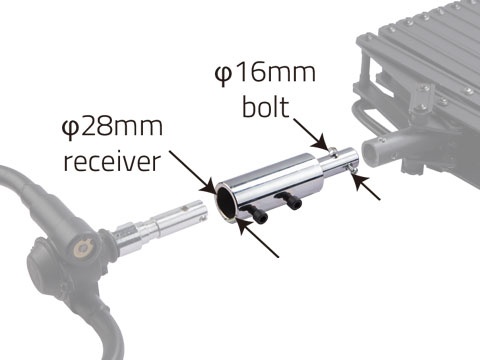

Studio Light Connect
On the bottom end of the pantograph, it provides a screw bolt and a nut. You can fix it on the yoke of studio light fixtures conveniently.
* Please remove the baby pin socket on the yoke of SWIT lights, and then install pantograph.
Model | GA-PT20P |
Max Load | 23kg |
Stretch height | 0.5m - 2m |
| Spring thickness | 0.73mm |
Spring width | 22mm |
Net weight | 3.28kg |
