MONET-400 400W RGBWW Professional Panel LED Light

›  400W RGB + 400W Warm + 400W Cold LEDs
›  Time-Division drive, 100% power color lights
›  1×1' size, 11500Lux @ 1meter
›  Only 40dB sleeping silent
›  IEC 62471 Photobiological Safety certificate
›  2800K-10000K, G/M±1.00 adjustment
›  CRI Ra 95, TLCI 95, SSI(D55) 75
›  CCT/HSI/RGB/CIE/GEL/EFF color modes
›  20x Rosco and 20x LEE Gels
›  3.5-inch color LCD visualized color pick
›  DMX512 channels settings for various modes
›  Built-in Lumenradio CRMX Receiver
›  EtherCON Art-Net IP control
›  IOS/Android APP bluetooth control
›  PowerCON TRUE1 AC in and loop
›  3-Pin XLR DC 48V power input
›  Open face accessory quick install
›  With diffuser board and 4-leaf barn door
›  Optional honeycomb, soft box, Pole-operated Yoke

Features

400W RGBWW Pro Studio Panel

MONET-400, an 1x1 size ultimate 400W high power RGBWW Studio Panel Light designed for broadcast studios, virtual studios, live events and film sets, soft and high bright output, provides with advanced control options and versatile accessory mounting and power supply for professional setup.



High Bright Soft Diffusing Output

MONET-400 boasts an impressive high illuminance of 11,500 Lux @ 1 meter, makes it an ideal choice for various large-scale studio lighting applications, ensuring that every corner of your set can be sufficiently illuminated.



Full Power R/G/B Color Output

SWIT Patent Tech - CTDM Drive

The ordinary RGB lights can only output 30%-60% power when they are in color modes.
With SWIT patented - CTDM (Color Light Time Division Multiplexing) technology, MONET-400 can output 100% full power at any pure R/G/B colors, 3 times brighter than other RGB panels with the same power.

Control Panel

The rear control panel of MONET-400 provides multiple power and control interfaces, supports 5-pin DMX in & out, RJ45 Art-Net connection, USB-A 5V power out and firmware update, 3-pin XLR DC48V power in, PowerCON True1 AC in and out, and a large color LCD with menu and hot keys for convenient color picking.

On-board 3.5-inch Color LCD

Visualized color selection



DMX, Art-Net,
CRMX Receiving

MONET-400 supports DMX-512 in and out, Art-Net IP control over ethernet, and has CRMX Rx Built-in, giving you the flexibility to manage your lighting from various platforms.

Bluetooth APP Control

Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control MONET lights via Bluetooth.

SWIT Console APP

The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.



True 1 AC and 48V DC Power

MONET-400 provides PowerCON True1 100-240V AC in and loop out, for chain connection in the studio setup, and a 3-pin XLR DC 48V power input for convenient mobile lighting setup.



Studio Yoke

MONET-400 comes with a studio yoke of both 5/8” (16mm) baby pin female and 1-1/8” (29mm) junior pin male head, fit for all kinds of light stands, studio hooks or pantographs.



Open Face Accessory Mounting

MONET-400 has an open face structure for multiple accessories, includes diffuser, honeycomb, and 4-leaf barndoor, of convenient quick-release sliding mounting.



Optional Soft Box

Foldable quick mounting soft box, optional purchase, illuminance 7,500Lux@1m.
SKU: LA-BX400

LED

392pcs RGB + 392pcs cold white + 392pcs warm white

Illuminance

11,500Lux @ 1m

Beam angle

120° (65° half peak)

Color Temperature

2800K~10000K, G/M±1.00

Color Render

CRI Ra95, TLCI 95, SSI(D55) 75, Rg 106, Rf 96

DMX

DMX512, 5-pin XLR IN & OUT

Art-Net

EtherCON LAN connection

CRMX

Built-in CRMX Receiver

USB

USB-A 5V power out & firmware update

Power

400W

AC

PowerCON TRUE1 AC 100-240V 50/60Hz input & output

DC

3-pin XLR DC 48V input

Dimension

357×354×170mm

Lighting area

298.85×316mm

Weight

Net 7.8kg
Basic Package

MSRP

MSRP

MSRP

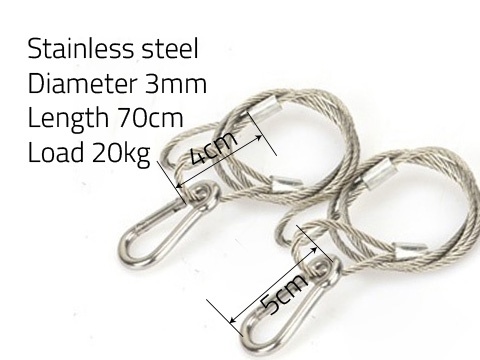

  • Safety rope ×2

  • PowerCON TRUE1 AC cable

  • Diffuser board

  • Barn door kit

  • PA-LC20

    PowerCON TRUE1 loop out cable, 2meters, 16A load

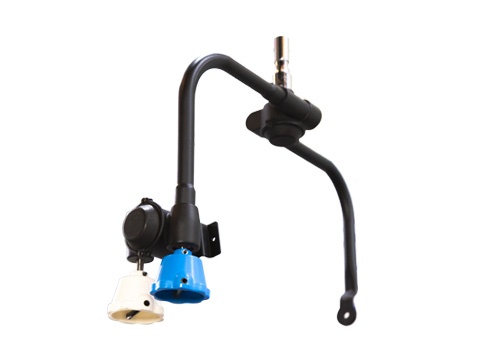

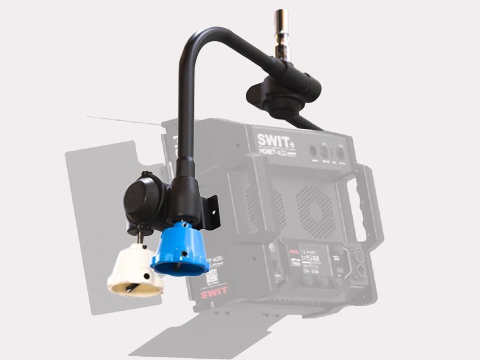

  • LA-POM400

    2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head.
  • LA-BX400

    Softbox diffuser, 7500Lux@1m on MONET-400

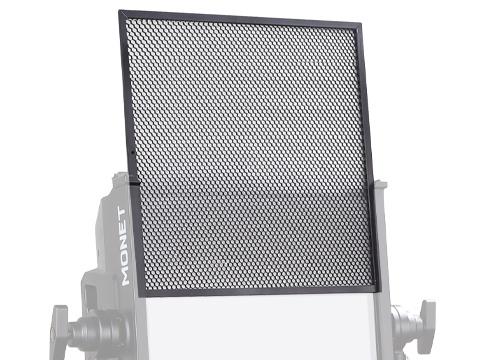

  • LA-G400

    40° HoneyComb, quick slide install with diffuser board or barn door kit.
  • VANGO-70

    70W 1:1 Ultra Slim RGBW Panel Light

    Equivalent to a 200W color light, 21mm slim, on board LCD, APP control

  • VANGO-100

    100W 2:1 Ultra Slim RGBW Panel Light

    Equivalent to 300W color light, 21mm slim, on board LCD, APP control

  • VANGO-100L

    100W Long Ratio Ultra Slim RGBW Light

    3x0.5 size, Equivalent to 300W color light, 21mm slim, on board LCD, APP control

  • CL-M100C

    100W Mini Size Studio RGBW Light

    1:1/2 size, no fan no noise, 3000Lux@1m, CTDM high intensity color light

  • PL-S300D

    300W Bi-color Studio SMD Panel LED Light

    2:1 size, 10000Lux@1m ultra bright, 2700-6500K, DMX, CRI 97 TLCI 99, True1 AC IN & OUT

  • MONET-700

    700W RGBWW Professional Panel LED Light

    2×1 size, 20000Lux@1m, Full power RGB, Built-in CRMX receiver and Artnet, 3.5" color LCD, True 1 AC in and DC48V power

  • PL-S300H

    300W Hard Bi-color Studio Panel LED Light

    47,000Lux@1m ultra bright, large studio applications
