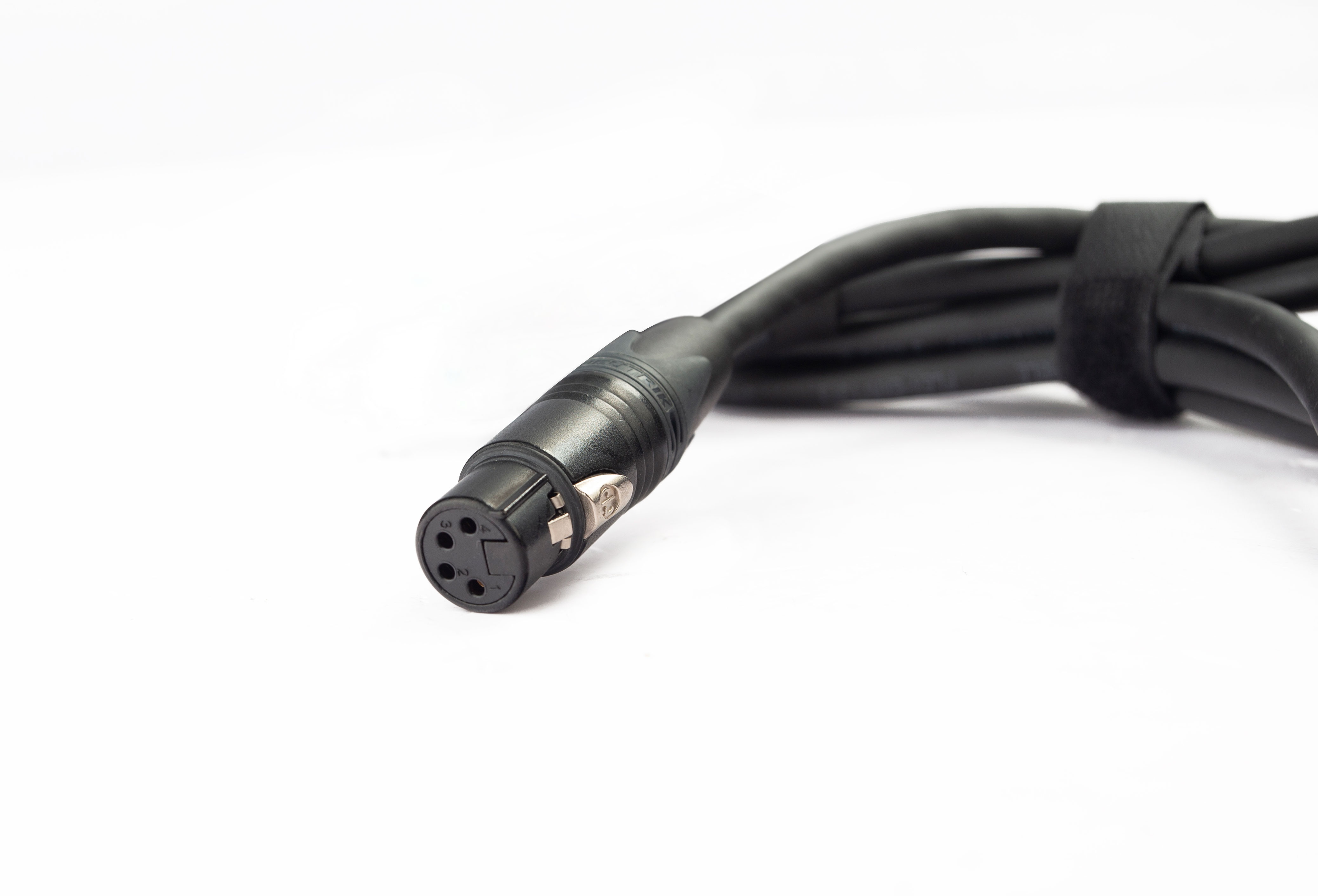

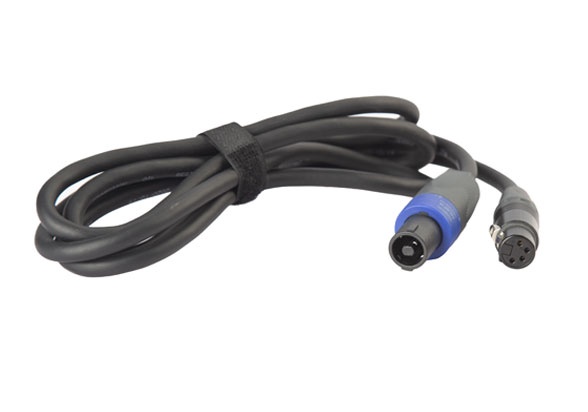

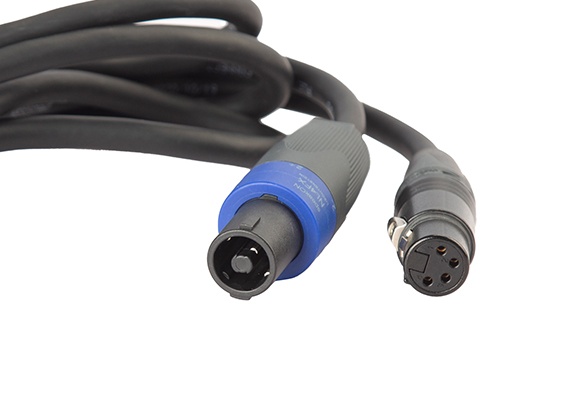

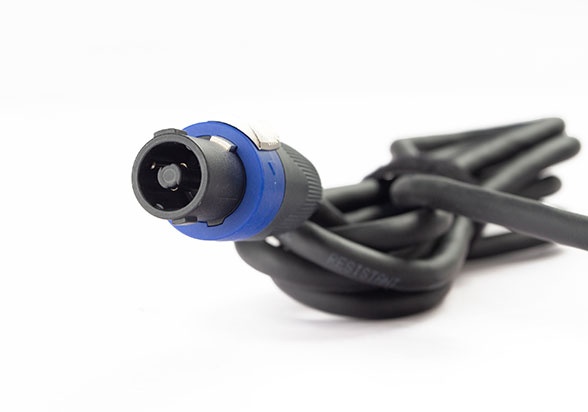

PA-706 SpeakON NL4FX to 4-pin XLR Cable
› SpeakON NL4FX to 4-pin XLR cable
› VOLTA-DC1600 24V power output
› For ARRI L5-C, Prolights EclPanel TWCJR
› 10A power load
› 2 meters cable length
SpeakON NL4FX to 4-pin XLR
PA-706 is a SpeakON NL4FX to 4-pin XLR power cable,
with 10A power load and 2 meters cable length. You can
connect to SpeakON NL4FX DC24V power sources like
SWIT VOLTA-DC1600 and TD-R230S, and supply power
to 4-pin XLR devices like ARRI L5-C, Prolights EclPanel
TWCJR, etc.
MSRP
MSRP
MSRP
-
VOLTA-DC1600
Modular Add-on Floor Battery
1600Wh large capactiy, 15V/24V/48V/USB-C output, 1700W load, solar panel charging, AC charging, Add-on 1600Wh battery packs.
We provide a 1-year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or malfunction caused by use, maintenance, or installation not in accordance with the User Manual's instructions, including improper insertion into camera or power device, incorrect polarity connection, cable bending beyond recommended radius, or disassembly/repair without authorization of SWIT.
(2) Any damage caused by using third-party power supplies, batteries, chargers, or accessories that do not comply with the recommended electrical specifications, or by operating the product beyond its rated current, voltage, or load limits as stated in the technical specifications — including but not limited to melted insulation, burnt contacts, internal short circuits, or blown fuses resulting from over-current, over-voltage, or excessive load.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning, flood, etc.) or human factors including crushing, pulling with excessive force, pinching, dropping, or improper storage in contact with sharp or heavy objects.
(4) Any damage or malfunction not caused by the product's design, workmanship, or manufacturing quality — including normal wear and tear of cable jackets, connector plating, strain relief boots, or contact spring tension.
(5) Physical damage to plugs, sockets, connector housings, locking tabs, or terminal pins resulting from violent use, improper insertion/removal, forced connection with incompatible ports, or pulling on the cable body instead of the connector is specifically excluded from warranty coverage. This includes bent, snapped, or cracked plug shells, broken latch mechanisms, separated solder joints from excessive strain, and deformed pin contacts.
(6) Electrical damage (including melted connectors, scorched dummy battery casings, deformed DC jacks, or cable insulation shrinkage) that is determined to be caused by connection to a power source or device exceeding the product's specified voltage, current rating, or duty cycle shall not be covered under this warranty.
