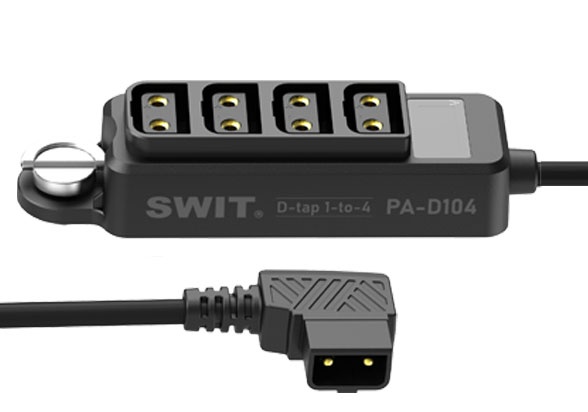

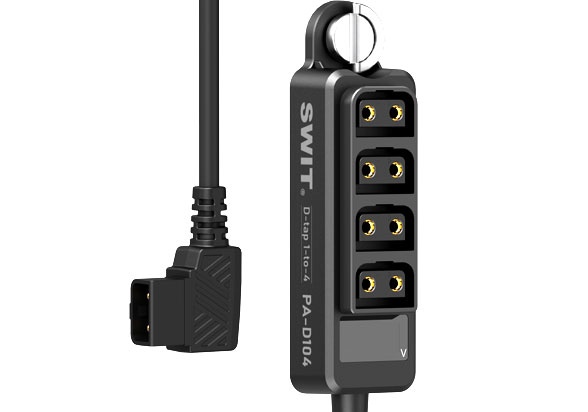

PA-D104 D-tap 1×4 Splitter Hub
› 1× D-tap plug 12-16.8V input
› 4× D-tap sockets 12-16.8V output
› Provide 1/4" screw bolt for install
› LED input voltage display
› Cabel Length 50cm

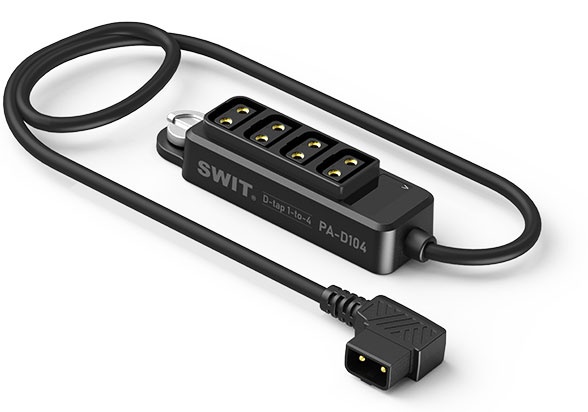

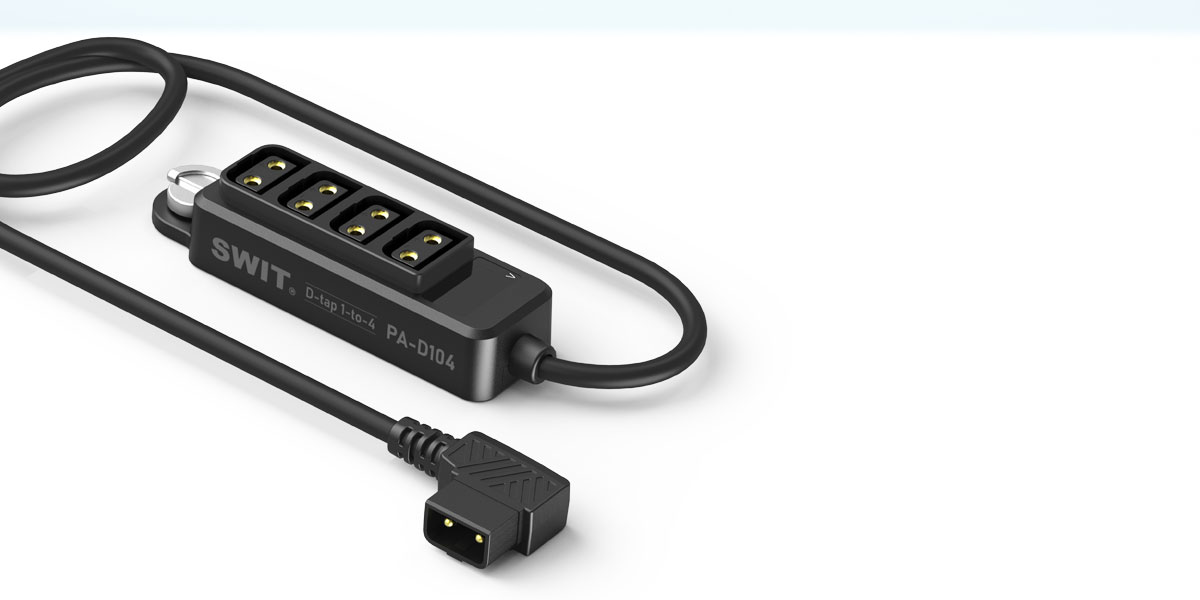

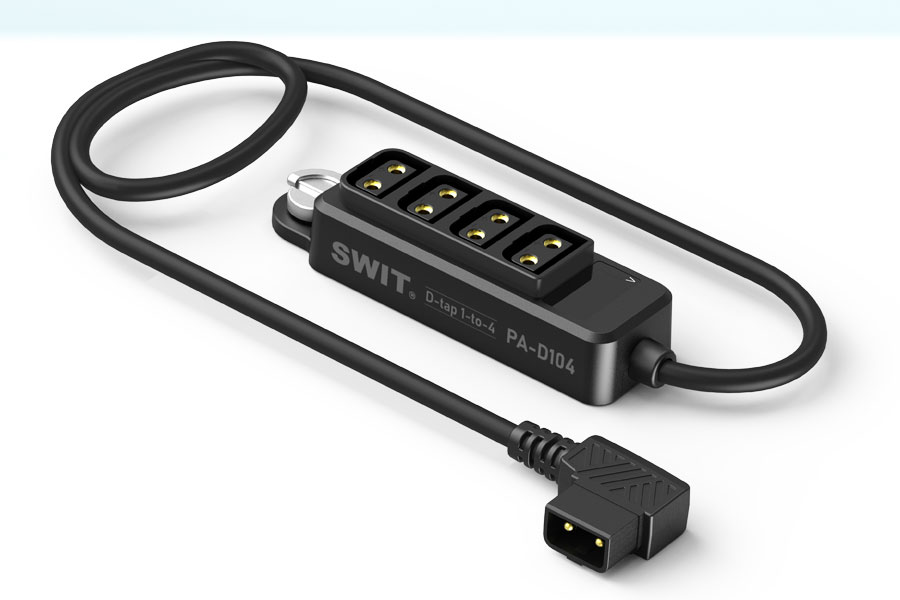

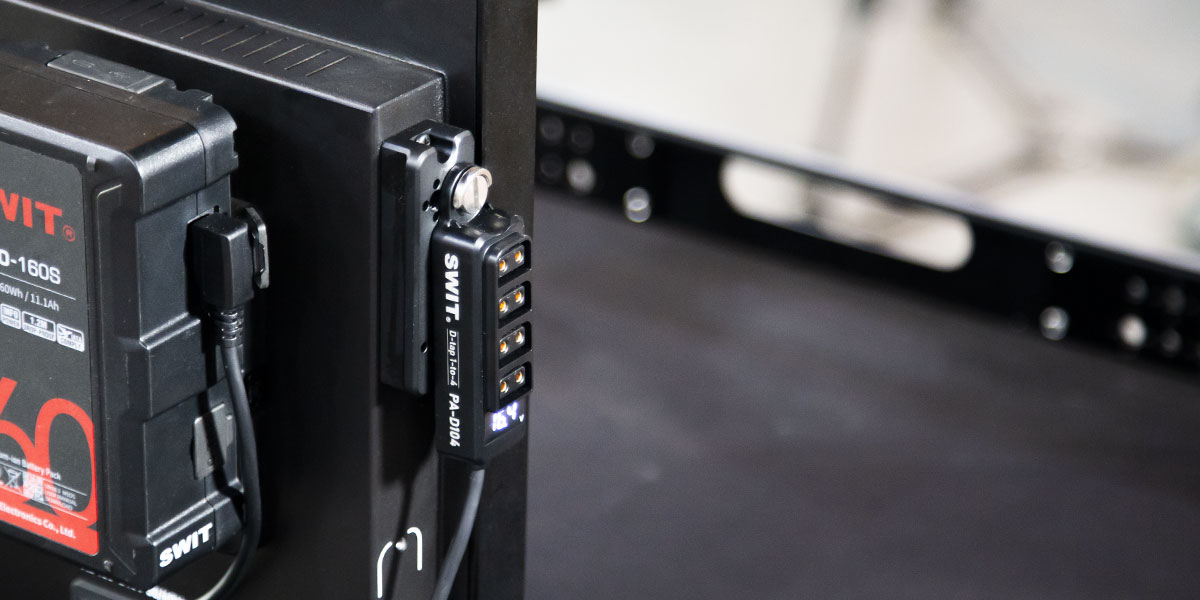

D-tap 1 × 4 Splitter Hub
The PA-D104 is a compact power distribution
solution designed to expand your battery's
D-tap connectivity. Featuring 1× D-tap plug
input and 4× D-tap sockets output, to power
multiple video devices simultaneously. Cable
length 50cm.

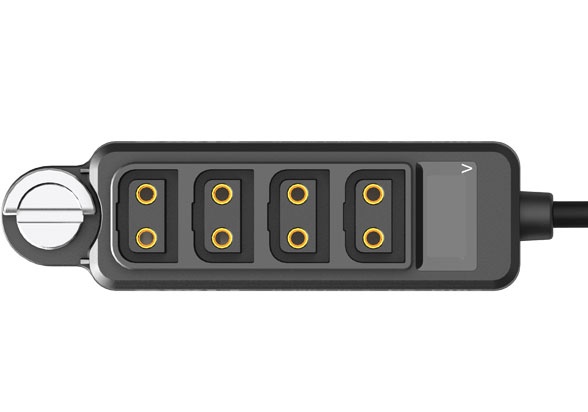

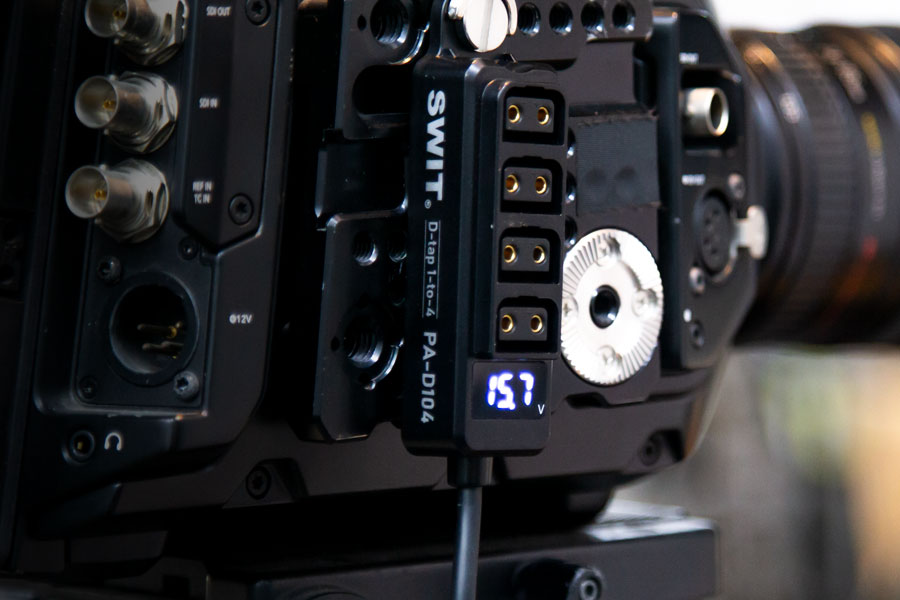

D-tap Voltage Display
The LED display can show the real-time
voltage of the D-tap input & outputs.

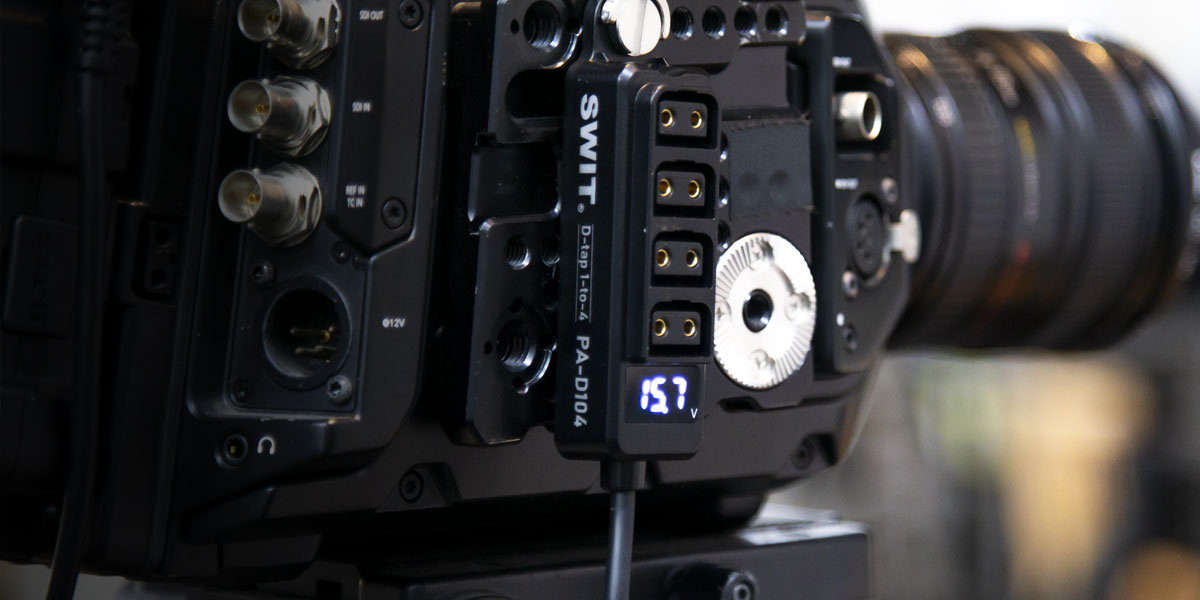

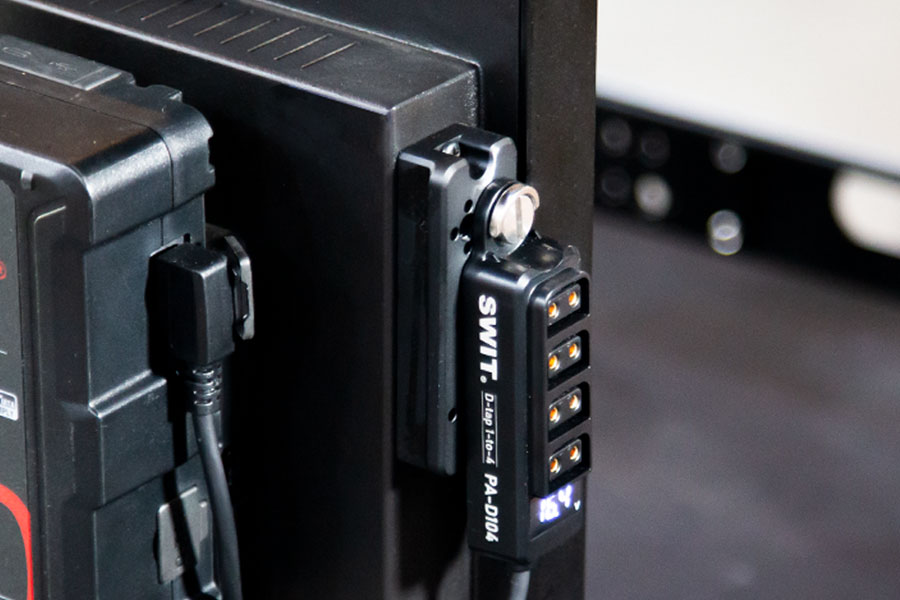

1/4” Screw Mounting
The PA-D104 provides with a 1/4” screw bolt
that allows you to install it on camera cage,
monitor cheese plate or any rig system easily.
Input | 1×D-tap plug, 12-16.8V |
Output | 4×D-tap sockets 12-16.8V |
Power Load | 10A |
Cable Length | 50cm |
MSRP
MSRP
MSRP
We provide a 1-year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or malfunction caused by use, maintenance, or installation not in accordance with the User Manual's instructions, including improper insertion into camera or power device, incorrect polarity connection, cable bending beyond recommended radius, or disassembly/repair without authorization of SWIT.
(2) Any damage caused by using third-party power supplies, batteries, chargers, or accessories that do not comply with the recommended electrical specifications, or by operating the product beyond its rated current, voltage, or load limits as stated in the technical specifications — including but not limited to melted insulation, burnt contacts, internal short circuits, or blown fuses resulting from over-current, over-voltage, or excessive load.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning, flood, etc.) or human factors including crushing, pulling with excessive force, pinching, dropping, or improper storage in contact with sharp or heavy objects.
(4) Any damage or malfunction not caused by the product's design, workmanship, or manufacturing quality — including normal wear and tear of cable jackets, connector plating, strain relief boots, or contact spring tension.
(5) Physical damage to plugs, sockets, connector housings, locking tabs, or terminal pins resulting from violent use, improper insertion/removal, forced connection with incompatible ports, or pulling on the cable body instead of the connector is specifically excluded from warranty coverage. This includes bent, snapped, or cracked plug shells, broken latch mechanisms, separated solder joints from excessive strain, and deformed pin contacts.
(6) Electrical damage (including melted connectors, scorched dummy battery casings, deformed DC jacks, or cable insulation shrinkage) that is determined to be caused by connection to a power source or device exceeding the product's specified voltage, current rating, or duty cycle shall not be covered under this warranty.
