› PP+ Fiber glass case, strong and durable
› Install 4 x V-mount batteries
› 2-ch 3-pin XLR 28.8V DC output
› LED voltage display and warning
› Charging without take out batteries
› Intelligent protective circuit design
![](https://www.swit.cc/uploads/image/S-4030/S-4030-5.jpg)
![](https://www.swit.cc/uploads/moimage/mS-4030/S-4030-5.jpg)
Long-lasting power solution for high draw devices
S-4030 power station box can install 4 pieces of
V-mount batteries which can provide more power
and longer power supply time comparing to single
Li-ion battery. It can meet the demand of different
users, and is very suitable for Cine cameras, lightings
for Film & Television and mobile studios.
![](https://www.swit.cc/uploads/image/S-4030/S-4030-6.jpg)
![](https://www.swit.cc/uploads/moimage/mS-4030/S-4030-6.jpg)
PP+ Fiber glass case
S-4030 adopts PP+ Fiber glass case which is high intensity,
high toughness and high temperature resistant.
![](https://www.swit.cc/uploads/image/S-4030/S-4030-7.jpg)
![](https://www.swit.cc/uploads/moimage/mS-4030/S-4030-7.jpg)

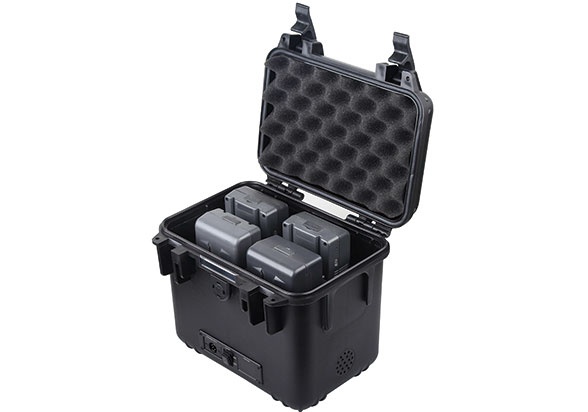

Power with 4 V-lock batteries
Considering the size, weight, power effeciency, and usability, S-4030 is designed to be powered with 2-4 V-lock bat-
teries. With auto-balanced circuite design, the different
models and capacities batteries can be mixed. The max
output power is limited by battery inside.
![](https://www.swit.cc/uploads/image/S-4030/S-4030-8.jpg)
![](https://www.swit.cc/uploads/moimage/mS-4030/S-4030-8.jpg)
2-ch 4-pin XLR DC output
With 2-ch 3-pin XLR output sockets, S-4030 is capable of outputing 2-ch 22-33.6V, max 15A power simultaneously.
And S-4030 is designed with multiple circuit protections, such as over load, over voltage, and etc.
![](https://www.swit.cc/uploads/image/S-4030/S-4030-9.jpg)
![](https://www.swit.cc/uploads/moimage/mS-4030/S-4030-9.jpg)
LED panel display status
With a LED panel, S-4030 can display real-time voltage, and when battery capacity is too low,
the LED panel will keep flashing to remind you to change or charge batteries.
![](https://www.swit.cc/uploads/image/S-4030/S-4030-10.jpg)
![](https://www.swit.cc/uploads/moimage/mS-4030/S-4030-10.jpg)

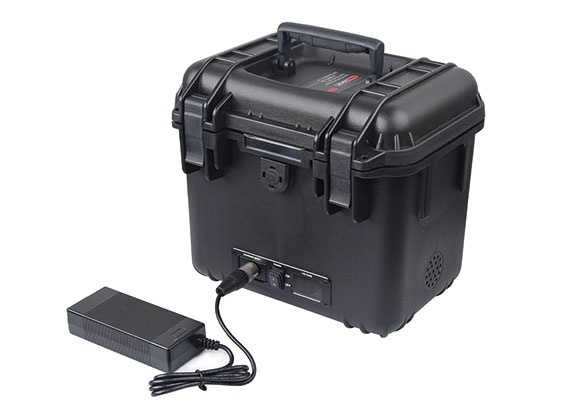

Charging with batteries inside

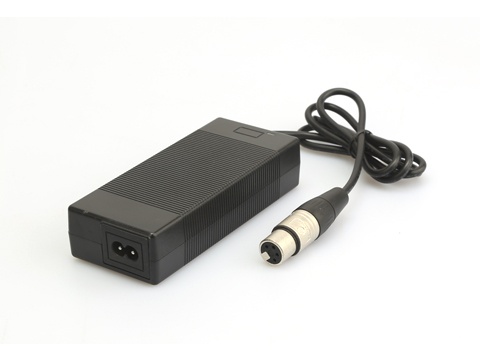

With the supplied 5A charger, user can charge the batteries
in the S-4030 directly, without taking out of them.
![](https://www.swit.cc/uploads/image/S-4030/S-4030-11.jpg)
![](https://www.swit.cc/uploads/moimage/mS-4030/S-4030-11.jpg)
Cooling fan design
The fan keeps dissipating heat from the box, and
makes it safe when working in high temperature
environment.
Input | DC 16.8V 5A (Charging) |
Output | DC 22-33.6V 15A(360W) |
Working temperature: | 0°C~+40°C |
Working humidity: | 10%~90% |
Storage temperature: | -15℃~﹢60℃ |
Dimensions | 290mm x 221mm x 278mm |
Net weight | Net 3.45kg; With package 4.05kg |
