S-3812S 2-ch V-mount Super Fast Charger

›  2-ch simultaneous charging

›  Identify battery type and adjust charging method

›  6A fast charging for SWIT over 160Wh batteries

›  3A charging for other batteries

›  Support AC to 4-pin XLR output

›  Support battery to 4-pin XLR output

›  LCD display charging/adapting info

Features

Dual-channel Fast Charger

Max charging current: 6A

S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging current, to SWIT over 160Wh capacity batteries. The charging speed is quite faster than normal chargers.
And for other batteries, the charging current is limited to 3A.

Charging time comparation

AC-DC Adapting Output

S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.
When adapting load is less than 100W, S-3812S can still charge battery simultaneously. (2 batteries sequential) Remark: S-7102 cable is optional purchased.

Battery-DC Adapting Output

You can also mount batteries onto S-3812S, and output DC power via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.
Remark: S-7102 cable is optional purchased.

LCD Charging Info Display

S-3812S has an LCD screen to display the real time charging/adapting information, includes:
Battery Charging/Discharging status
Real time capacity and percentage
Real time Voltage/Current
Remaining time to fully charged
Remaining time to fully discharged
Battery cycle times
Adapting output current and power

Remark: The battery info display only available with digital Li-ion batteries: PB-H, PB-R, PB-S, PB-M series. For other non-digital batteries, the charger will only display real time voltage and current.

3-color LED Indicators

S-3812S has the 3-color LED indicators for both 2 channels:
Red light slowly flashes: The battery is charging
Red light fast flashes: The battery is about to fully charged
Green light constant: The battery is fully charged
Green light flashes: The battery is adapting output
Orange light flashes: Battery or Charger abnormal alert

Input

100~240VA, 50/60Hz

Power consumption

Max 260W

Charging output

DC 16.8V, Max 6A×2-ch

Adapting output

DC 16.8V, 3A×2

Working temperature

0°C~+40°C

Working humidity

10%~90%

Dimensions

272mm×246mm×97mm

Net weight

Net 1.85kg; With package 2.45kg

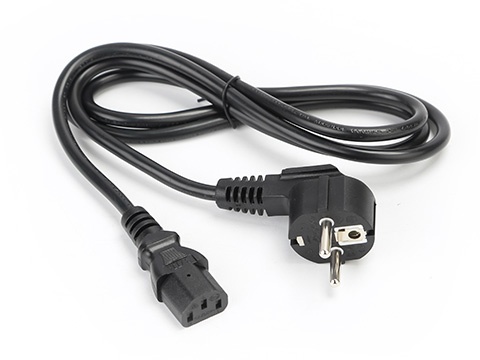

Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

  • S-7102

    4-pin XLR female to male cable, for 4-pin DC adapting output
  • S-7102

    4-pin XLR female to male cable, for 4-pin DC adapting output
