› 280pcs ultra bright surface mounted LEDs
› Flexible 10°-360° lighting
› 50W power, 1200Lux @ 1 meter center
› 3000K-5600K continuously adjustable
› 0-100% flick-free dimming
› Super high CRI Ra 97, TLCI 97
› Separate controller with LCD touch screen
› 2.4G wireless interactive control
› Support DC / V-mount battery 11-17V input
› Water proof fabric for outdoor using
› Portable X bracket for lighting tripod mounting
Flexible SMD-LED Light
S-2620 is a flexible LED light with 280pcs
SMD surface mounted LEDs, and can be
curved to any shapes to output 10°-360°-
various lighting angles, which can be widely
used on field video production especially
the lighting in narrow space.
Rain-proof Fabric
For outdoor using
The flexible fabric has rain-proof cover to protect
the LED from water during outdoor using. And the
fabric is easy to clean by water.
50W Light Output
1200Lux @ 1 meter
S-2620 outputs 50W power, feeds 1200Lux
luminance at 1 meter distance (center),
supports 0% to 100% PWM digital dimming,
smoothly and non-flickering.
Bi-color temperature
3000K-5600K continuously adjustable
S-2620 alternated with 5600K and 3000K LEDs, and the output color temperature can be continuously adjustable
between 3000K and 5600K.
High Color Reveal Ability
CRI Ra 97; TLCI 97
CRI (Color Rendering Index) is a measure of the ability of a
light source to reveal the colors of various objects faithfully in
comparison with a natural light source. And TLCI (Television
Lighting Consistency Index) is special for the color reveal
ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while S-2620
offers the super high CRI at 97 and TLCI at 97, and will not
lost the object original colors.
LCD screen display
Dimmer / color temperature value
S-2620 control box is equipped with an LCD panel, to
display dimmer value, color temperature value, battery
status and wireless channel. Touch up/down buttons to
control.
DC 11-17V Power Supply
By V-mount battery / AC-DC adaptor
S-2620 supports 11-17V 3-pin XLR DC input, and
equipped with a battery plate to power by V-mount
battery.
Wireless Interactive Control
2.4G wireless networking
S-2620 supports 2.4G wireless networking. The
control box provides A, B, C, D 4 wireless channels,
and you can set several S-2620 lights at the same
channel, so that you can control all the lights by
any of the control box.
X bracket
For lighting tripod
S-2620 standard package provides a foldable X bracket,
to set the light on tripod. Support 0°-180° tilt angle.
Model | S-2620 |
LED | 280pcs |
Color Temperature | 3000K-5600K |
Brightness | 0%-100% |
Luminance | 1200 Lux/1m |
Beam Angle | 10º-360º |
CRI | ≥97 |
TLCI | ≥97 |
Input | 50W |
Voltage | DC 11-17V |
Dimensions | 455mm x 315mm |
weight | Light: 0.29Kg, Control box: 0.81Kg, AC-DC adaptor: 0.29Kg; With package 3.1kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

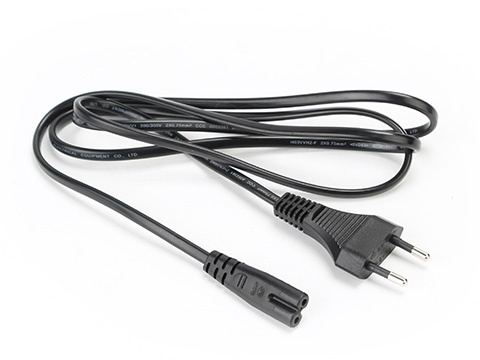

AC power cable
-
Carrying case
-
Antenna x1
-
Diffusing cover
-
Rotatable light stand connector
-
X bracket
-
AC-DC adaptor
-
Light Controller
-
Light Head
-
LA-D620
Ball diffuser, spread the light to a wider angle, installed on the light fabric by Velcro tape. -
LA-B620
Box diffuser with Egg crate, install onto the light fabric by provided Velcro tape. -
PA-UL04/06/08/10
Extension cable between light fabric and control box, 4 meters / 6 meters / 8 meters / 10 meters for option.
1. Warranty Period
We provide 1 year conditional warranty for lighting products.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents, including but not limited to damage to LED emitters, circuits, or housings, personal injury, or property loss, are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with Operating Procedures
Operation, installation, or removal of equipment and accessories not in accordance with the User Manual; forcible removal of connection cables or power cables; obstruction of heat dissipation vents; direct visual exposure to LED emitters; failure to follow the prescribed sequence for startup/shutdown or wiring.
(2) Non-Compliant Power Supply and Accessories
Use of non-original SWIT power supplies, power cables, chargers, optical accessories, or other uncertified third-party accessories; powering the product with third-party power adaptors; use of extension cables or power adaptors with mismatched rated parameters.
(3) Unauthorized Modification and Repair
Unauthorized disassembly, modification, or repair of the equipment; tampering with core components or circuits; failure to contact SWIT authorized after-sales service upon equipment malfunction, resulting in unauthorized repair or aggravated damage by non-authorized personnel.
(4) Misuse and Adverse Environmental Conditions
Damage resulting from dropping, impact, compression, puncture, water immersion, exposure to high temperatures or direct sunlight, extreme cold, humidity, excessive dust, or other non-normal use environments or human-inflicted damage.
(5) Failure to Address Abnormal Conditions
Continued operation despite abnormal conditions such as overheating, abnormal odor, or abnormal noise, resulting in damage or safety incidents; use of damaged or malfunctioning accessories or batteries in violation of regulations.
(6) Out-of-Specification and Incompatible Use
Operation beyond the equipment's rated parameters; use in incompatible systems or environments; failure to implement protective measures during outdoor use, resulting in damage from severe weather conditions.
(7) Force Majeure and External Factors
Damage caused by irresistible factors (including but not limited to earthquake, flood, or typhoon), sudden voltage fluctuations, or external circuit short circuits.
(8) Natural Wear and Tear
Normal aging of LED emitters, wear of accessories, and other natural degradation of the product.
(9) Improper Storage
Failure to store equipment and accessories in accordance with prescribed specifications, resulting in moisture ingress, dust accumulation, or component corrosion.
(10) Non-Authentic Products and Ineligibility
Products not purchased through official SWIT channels, or products with altered or missing serial numbers that preclude verification of authenticity and warranty eligibility.
(11) Liability Disclaimer
All risks and consequences arising from improper use, human factors, or external factors shall be borne entirely by the user.
(12) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
