S-1093F 9-inch Full HD Reference LCD Monitor

› 9” IPS LCD, 1920×1200, H/V 170°viewing

› Build-in LCD protective glass

› 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring

› 16-ch Embedded audio meters with alert

› Select any 2 audio channels to output

› Waveform Y/Cb/Cr/R/G/B and single line

› Vector scope, histogram R/G/B/Y

› AFD, H/V delay, R/G/B/Mono, False color

› TSL UMD and text TALLY display

› Zebra stripes, Peaking focus assist

› SDI timecode display

› Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1


Features

9-inch Full HD LCD

IPS panel with LED backlight

The S-1093F adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°

LCD Protective Glass

The LCD of S-1093F is overlaid with a glass, protects the screen against scratch or broken.

Input/Output Interfaces

SDI / HDMI / CVBS / Analog Audio

S-1093F monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 2
HDMI input × 1
HDMI loop output × 1
CVBS input × 1
CVBS loop output × 1
3.5mm analog audio input × 1
3.5mm analog audio output × 1

Video Analysis Assistant Pattern

Waveform / Vector scope / Histogram

S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

Embedded audio monitoring

Up to 16-ch meters with alert and select output

S-1093F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display

TSL 3.1 / 4.0 Protocol

S-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1093F monitor to upgrade, without PC connection.

Peaking, R/G/B/Mono only, Zebra, False color

3-color TALLY Light

RJ45(RS485) input signal

There are front and rear TALLY lights of Red, Green and Yellow colors, and users can define the pins of RJ45 port to control the TALLY lights.

Multiple Power Sources

AC adaptor / V-mount / Gold mount / Snap-on DV mount

The monitor provides a 4-pin XLR socket of DC 6.5-24V power input, and can be fixed on V-mount, Gold mount or DV battery plate. Various types of DV battery plates are provided for optional, with snap-on designed, quick released and interchangeable with each other. There’re following DV plates for selection:

PlateCompatible batteries
S-7004AGold mount batteries
S-7004SV-mount batteries
S-7004FSONY NP-F970/770
S-7004USONY BP-U60/U30
S-7004DPanasonic D54/D28
Panasonic VW-VBD58, AG-VBR59
S-7004BPanasonic VW-VBG6
S-7004VJVC BN-VF823
S-7004ISSL-JVC50
S-7004CCanon BP-945/970G
S-7004ECanon LP-E6



Sun Hood

For outdoor using, you can apply a sun hood on the monitor. The sun hood can be easily installed via the left and right screw threads, or directly by Velcro tapes.
The sun hood is provided in the monitor package.

LCD Performance

Size

9 inches

Display area

191.52×119.70mm

Resolution

1920×1200

Aspect ratio

16:9 (4:3 adjustable)

Brightness

450cd/m2

Contrast

1000:1

Color

16.77 million colors

Viewing angle

Horizontal: 170°; Vertical: 170°

Input

BNC ×2

2K/3G/HD/SD-SDI input×2

BNC ×1

Composite input

HDMI ×1

HDMI input

3.5mm ×1

Analog audio input

Output

BNC ×2

2K/3G/HD/SD-SDI loop output ×2

BNC ×1

Composite loop output

HDMI ×1

HDMI loop output

3.5mm ×1

SDI, HDMI, Analog audio output

Video Format

SDI

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

HDMI

480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)

CVBS

PAL / NTSC

General

Input voltage

DC / battery 6.5V-24V

Power consumption

≤18W

Working temperature

0°C~+40°C

Working humidity

10%~90%

Storage temperature

-15°C~+60°C

Storage humidity

10%~90%

Dimensions

241×178×52mm

Net weight (main body)

960g
Basic Package

Basic Package

MSRP

$8222

Professional Package

MSRP

$8222

MSRP

$8222

  • Cold shoe and 1/4" Arm Trestle

  • S-7004 battery plate (S/A/U/F/D/B/V/I/C/E selection)

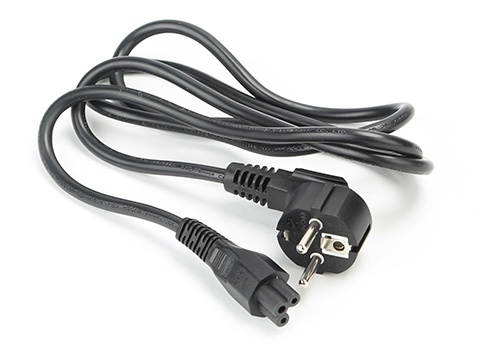

  • AC-DC Adaptor

  • Sun hood

  • Carrying case

  • A-US92 Desktop Stand

  • S-7101 D-tap to 4-pin XLR cable

  • Cold shoe and 1/4" Arm Trestle

  • S-7004 battery plate (S/A/U/F/D/B/V/I/C/E selection)

  • AC-DC Adaptor

  • Sun hood

  • S-7004S

    V-mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable.
  • S-7004A

    Gold mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable.
  • S-7004F

    SONY NP-F DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004U

    SONY BP-U DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004D

    Panasonic CGA/VBD DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004B

    Panasonic VBG DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004C

    Canon BP DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004E

    Canon DSLR Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004i

    JVC SSL DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004V

    JVC BN-VF DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-1093F

    9-inch Full HD Reference LCD Monitor

    1920×1200 full HD, 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring; Waveform/Vector scope, 16-ch embedded audio meters, focus assist, etc

    $8222
  • S-1053F

    5.5-inch FHD Cine Camera Top LCD Monitor

    1920×1080 full HD Optical bonding LCD, All Metal housing, 2K/3G/HD/SD-SDI in and loop, HDMI in and convert to SDI out; Waveform/Vector scope, 16-ch embedded audio meters, focus assist, etc

    $8000
