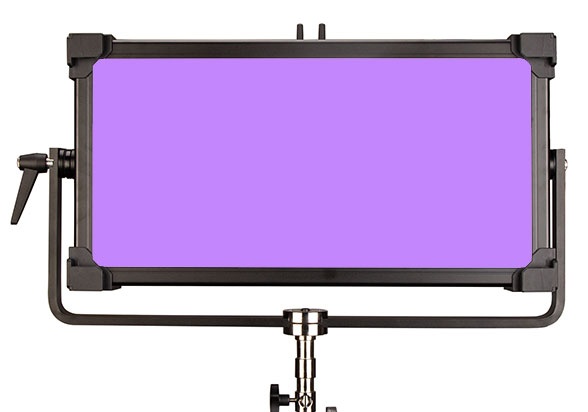

S-2840 400W RGBW LED Panel Light

›  560pcs RGBW SMD LEDs

›  400W light output

›  10000Lux @ 1 meter

›  2800-10000K color temperature

›  CCT mode with G/M adjustment

›  HIS / CIE / RGB color mode

›  20x Rosco and 20x Lee Gels

›  CRI 95, TLCI 93

›  8-ch DMX control

›  IOS/Android APP control


400W RGBW 2:1 Panel

560pcs SMD LEDs

S-2840 is an RGBW 2:1 panel LED light, adopts 560pcs SMD LEDs, 400W power output, 10000Lux @ 1 meter.


Smart Phone APP control

IOS and Android

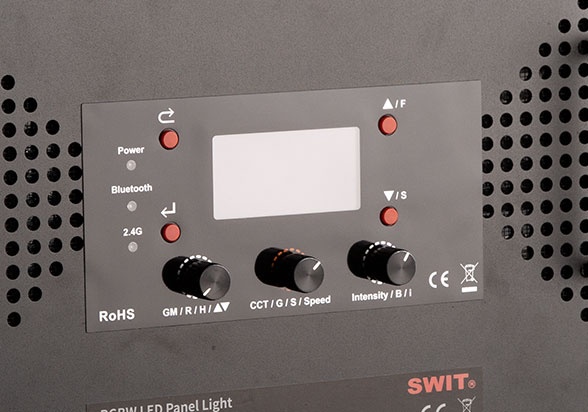

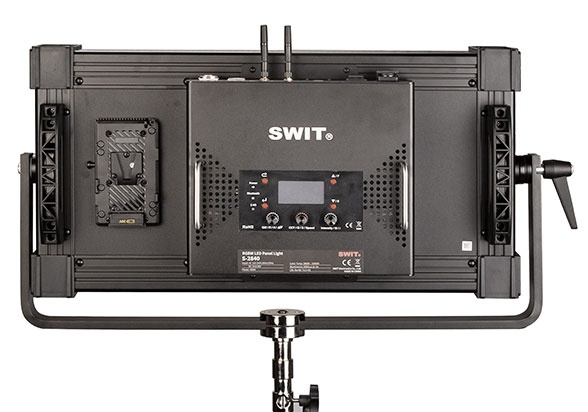

S-2840 has a control panel on the rear side, and can also be operated by Smart Phone APP.
IOS APP: App Store, search “RGB Panel”
Android APP: Download HERE.


CCT Mode

2800K-10000K, G/M adjustment

The color temperature mode achieves 2800K-10000K continuous adjustment and Green / Magenta ±1.00 adjustment.

RGB Mode

HSI, CIE and RGB pick

Support HSI mode, CIE mode, RGB mode to pick colors, by rear control panel value setting or smart phone APP.

GEL Mode

Built-in Rosco and Lee Gels

S-2840 has built-in 20x Rosco Gels and 20x Lee Gels to easily switch by rear control panel or smart phone APP.

Power Input

AC, V-mount DC

S-2840 supports SpeakOn AC power input and 4-pin XLR DC 14.8-26V input. Provides with standard V-mount plate. (The output power will be limited to 200W if using DC-IN or V-mount battery)




Color Temperature


G/M adjustment



10000Lux @ 1meter

Beam Angle


Color rendering

CRI 95; TLCI 93

Input voltage

AC 100-240V, 50/60Hz; DC 14.8-26V

Power output

AC-IN 400W; DC-IN 200W


629mm × 331mm × 195mm


Net 14.4kg; With package 27.18kg
Basic Package

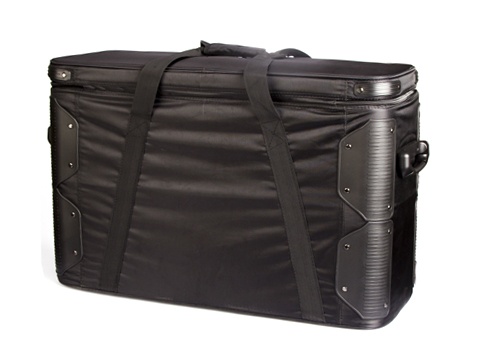

  • Carrying case

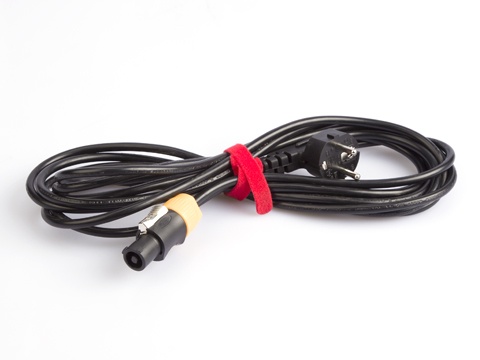

  • AC to SpeakON power cable

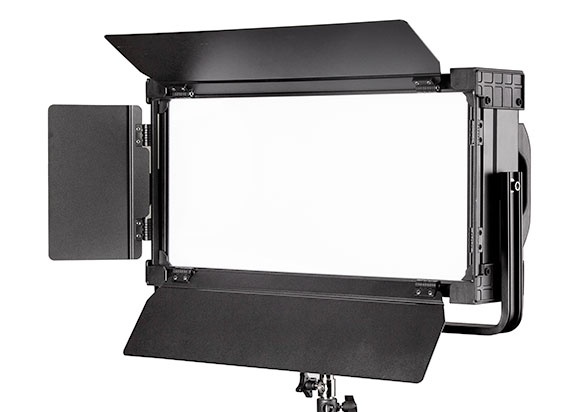

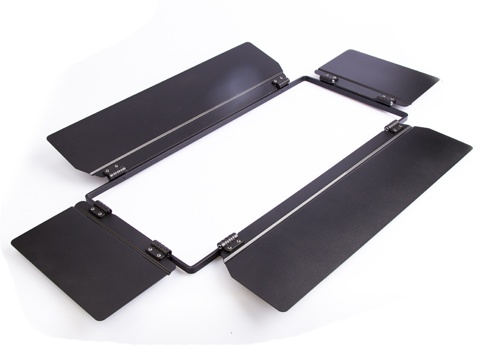

  • Barn door kit

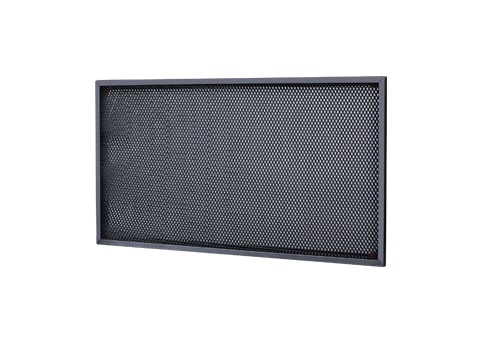

  • LA-G840

    Honeycomb 40°, metal, Snap onto the front frame of the light

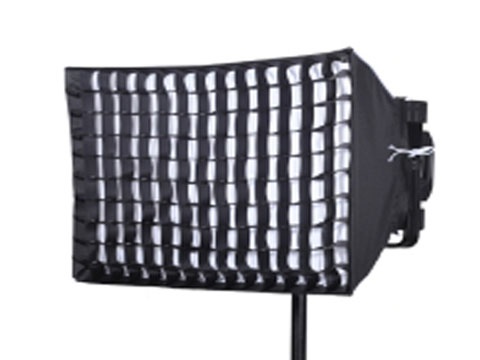

  • LA-B840

    Diffuser Box with eggcrate

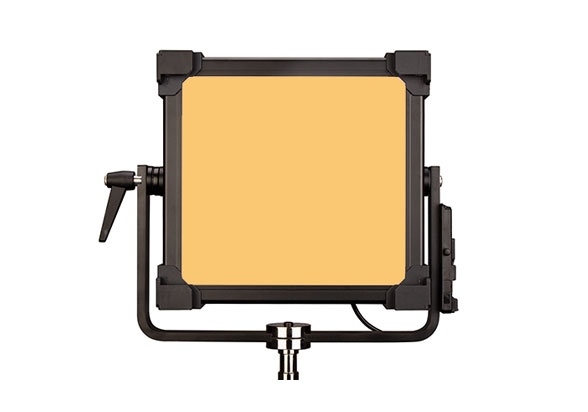

  • S-2820

    200W RGBW LED Panel Light

    280pcs RGBW LED, CCT/HSL/RGB modes, Rosco/Lee GELs, IOS/Android APP control
