› 280pcs RGBW SMD LEDs
› 200W light output
› 5000Lux @ 1 meter
› 2800-10000K color temperature
› CCT mode with G/M adjustment
› HIS / CIE / RGB color mode
› 20x Rosco and 20x Lee Gels
› CRI 95, TLCI 93
› Strong filter mounting bracket
› 8-ch DMX control
› IOS/Android APP control
200W RGBW 1:1 Panel
280pcs SMD LEDs
S-2820 is an RGBW 1:1 panel LED light, adopts 280pcs
SMD LEDs, 200W power output, 5000Lux @ 1 meter.
Smart Phone APP control
IOS and Android

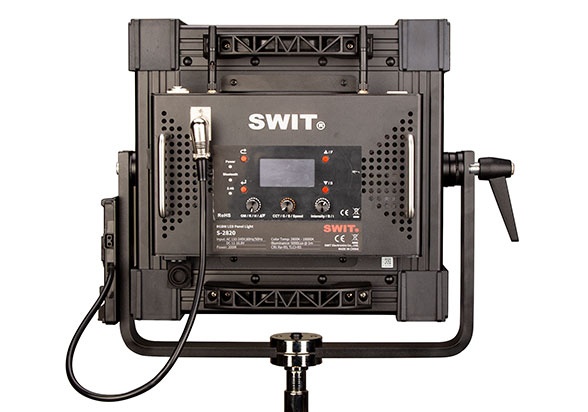

S-2820 has a control panel on the rear side, and can also be
operated by Smart Phone APP.
IOS APP: App Store, search “RGB Panel”
Android APP: Download HERE.
CCT Mode
2800K-10000K, G/M adjustment
The color temperature mode achieves
2800K-10000K continuous adjustment and
Green / Magenta ±1.00 adjustment.
RGB Mode
HSI, CIE and RGB pick
Support HSI mode, CIE mode, RGB mode to pick
colors, by rear control panel value setting or
smart phone APP.
GEL Mode
Built-in Rosco and Lee Gels
S-2840 has built-in 20x Rosco Gels and 20x Lee Gels to easily switch by rear control panel or smart phone APP.
Power Input
AC, V-mount DC
S-2820 supports SpeakOn AC power input and
4-pin XLR DC 14.8-26V input. Provides with
standard V-mount plate.
Model | S-2820 |
Color Temperature | 2800K-10000K |
G/M adjustment | ±1.00 |
Luminance | 5000Lux @ 1meter |
Beam Angle | 65° |
Color rendering | CRI 95; TLCI 93 |
Input voltage | AC 100-240V, 50/60Hz; DC 14.8-26V |
Power output | AC-IN 200W; DC-IN 200W |
Dimension | 351mm × 331mm × 195mm |
weight | Net 9.26kg; With package 18.8kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

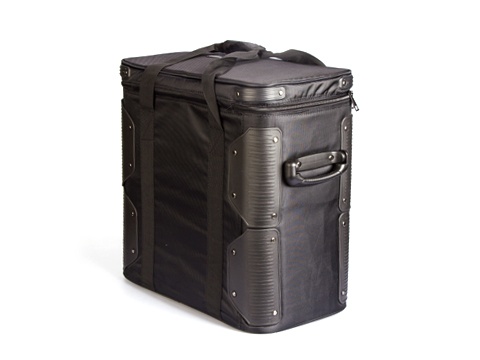

Carrying case
-

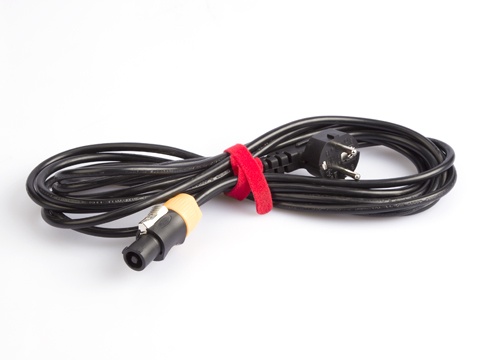

AC to SpeakON power cable
-

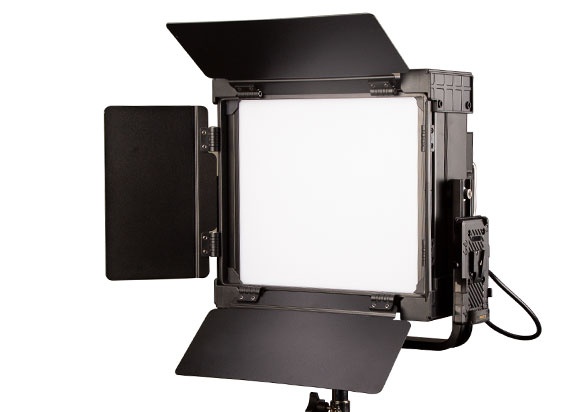

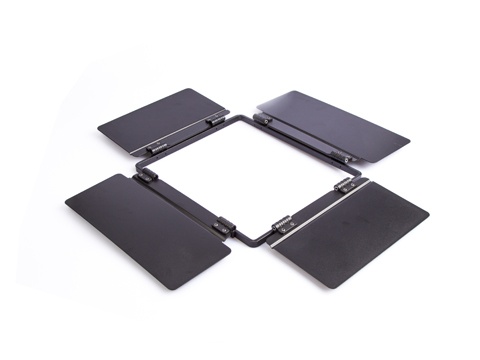

Barn Door kit
-
LA-G820
Honeycomb 40°, metal, Snap onto the front frame of the light -
LA-B820

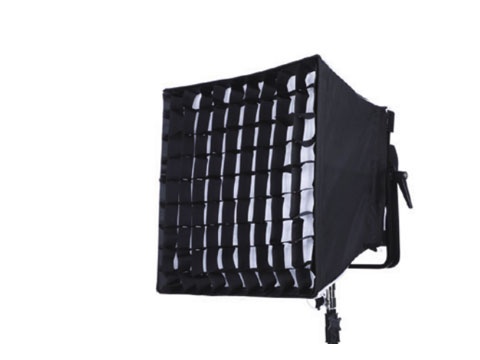

Diffuser Box with eggcrate
We provide 1 year conditional warrant for light products.
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual's instructions, or disassemble, repair without authorization of SWIT.
(2) Any damage caused by powering the product with third-party power adaptors.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
