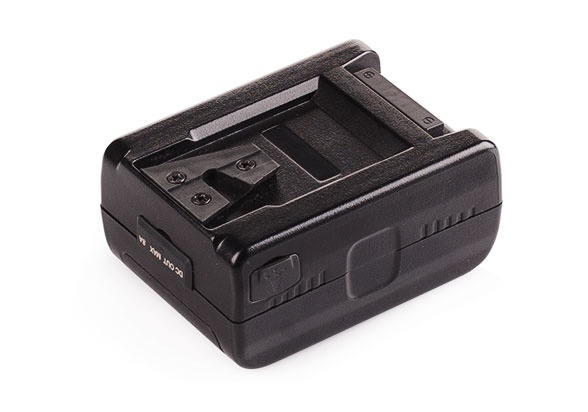

PB-M98S 98Wh Pocket V-mount Battery Pack

› Tiny V-mount battery, Pocket fit

› 98Wh/6.8Ah fly-friendly capacity

› 150W/12A constant high load

› 1x D-tap output & charging input

› 1x USB 5V/2A output

› 5-step LED power indicator

› Power info for both SONY & RED

› Wire-Free internal technic

› Multiple circuit protections

Features

Tiny V-mount battery

Pocket fit size

The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabi- lizers, focus puller monitor, portable LED panel, or small cameras.
PB-M98S Pocket V-mount battery is designed for the above applications!
It’s only a DV battery size, with high capacity cells and still reaches 98Wh, and without any compromise on the DC sockets!

98Wh Fly Friendly

150W/12A constant high load

PB-M98S consists of 8pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.8Ah high capacity. You can take this battery in carry-on luggage to board airplane.
The constant load is as high as 150W, 12A, applicable for high power devices.

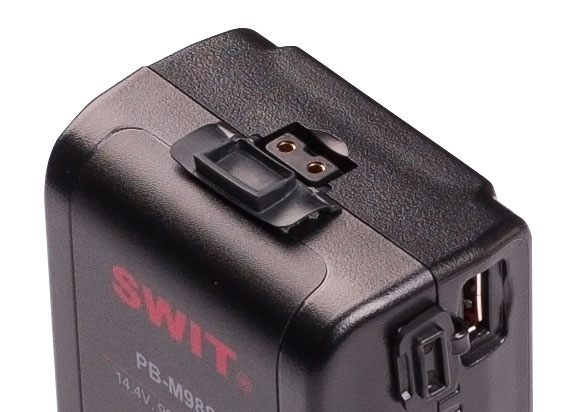

Built-in D-tap and USB

The pocket size PB-M98S still has D-tap and USB sockets built-in. The D-tap socket has 100W/8A load, and support charging input by SWIT PC-U130B2 dual D-tap charger.
The USB socket outputs 5V/2A for smart phone fast charging.

5-LED Power Indicator

Low battery warning

PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.

3A Fast Charging

PB-M98S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A.
The following chargers are recommended:
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M98S: Approx. 3 hours
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M98S: Approx. 3 hours
Charge 2x PB-M98S: Approx. 5 hours and 15 minutes

Hot-Swap Adaptor

You can use 2x PB-M98S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.

Wire-Free Internal Tech

PB-M98S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

Transparent Special Version

Provide the special transparent PB-M98S to show the internal technic of this battery, includes:
1. Wire-free technical
2. Class A high grade cells
3. Wider Nickel plate to solder the cells

* The transparent housing has the same intensity than regular housing.

Battery plate

V-mount

Nominal voltage

14.4V

Capacity

98Wh, 6.8Ah

Max output

In total: 150W

Electrodes: 150W, 12A

USB:10W, 5V/2A
D-tap: 100W / 8A

Dimension

100×74×48mm

      Charging Temperature0-40°C
      Discharging Temperature

-20°C-50°C(Capacity and Max Load may decrease when operating below 0°)

Net weight

Net 0.51kg; With package0.55kg

Max charging current

3A
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

  • KA-M20S

    Dual Pocket V-mount Batteries Hot Swap Plate, Installed with 2x PB-M series batteries, and the KA-M20S plate can draw the 2 batteries one-by-one as hot swap mode, or use together as high load mode.
  • PB-S98S

    98Wh Multi-sockets Digital Battery Pack

    Compact designed for Cine-cameras, 150W high load, 2x D-tap, 1x USB, OLED displays remaining time.

    $8222
  • S-8082S

    95Wh V-mount Battery Pack

    Adpot high performance Li-ion battery cells with intelligent safety protection circuit; D-tap output, LED power indicators

    $8222

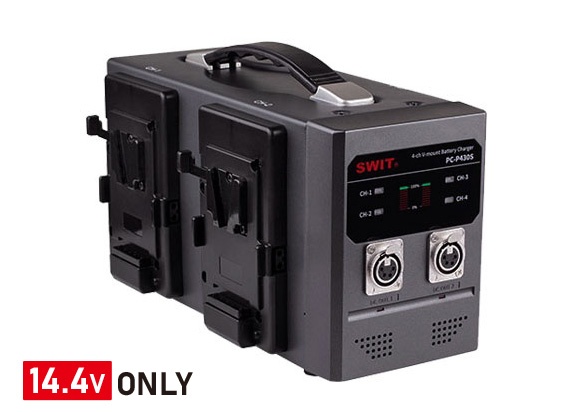

  • PC-P430S

    4-ch V-mount Fast Charger

    3A×4 fast charging current; AC-DC adapter output, LED charging indicators

    $8222
  • PC-U130B2

    Portable Dual D-tap Heads Fast Charger

    Ultra portable 3A charging via battery D-tap sockets

    $8222

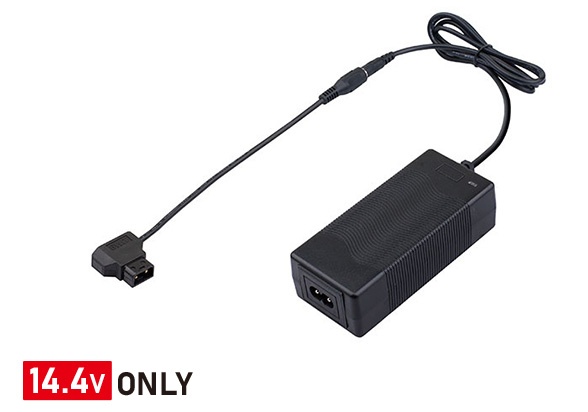

  • PC-U130B

    Portable D-tap Socket Fast Charger

    Ultra portable single channel 3A charging via battery D-tap socket

    $8222

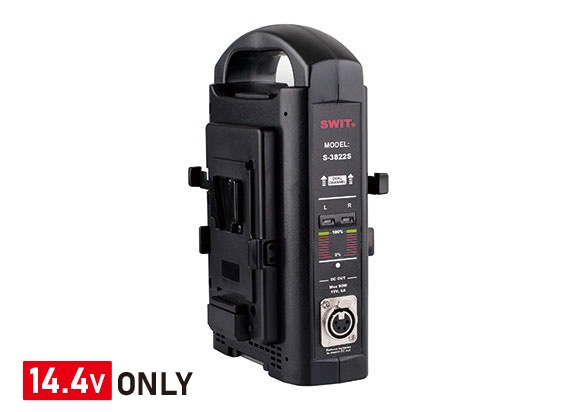

  • S-3822S

    2-ch V-mount Fast Charger

    2-ch simultaneous charging, 3A fast charging, Portable, support AC-DC adaptor output

    $8222
  • S-7005S

    Gold mount to V-mount battery Adaptor

    Adapt V-mount batteries to Panasonic gold mount cameras; D-tap DC socket

    $8222
  • S-7104

    D-tap to Pole-tap DC Cable

    Pluged into D-tap socket and output DC via 5.5mm pole-tap

    $8222
  • S-7101

    D-tap to 4-pin XLR DC Cable

    Pluged into D-tap socket and output DC via 4-pin XLR connector

    $8222
  • S-7100S

    V-mount to 4-pin XLR DC Cable

    Attached to V-mount battery pins and output DC via 4-pin XLR connector

    $8222
