› 720pcs Surface mounted LEDs
› 2:1 size, 100W, 3300Lux @ 1meter
› Half-peak 65° wide beam angle
› 5600K daylight color temperature
› 0-100% flick-free dimming
› CRI Ra 97, TLCI 99, SSI (D55) 75
› DMX512 controlled dimmer
› USB power out for wireless DMX receiver
› LCD display color, dimmer and DMX addr
› PowerCON TRUE1 AC in and loop out
› 4-leaf metal barn doors and Yoke bracket
› Optional 40° honeycomb (LA-G100)
100W Studio Panel LED Light
Brighter, softer, wider beam angle
CL-100 is a 100W 2:1 SMD LED panel light of daylight
color temperature, with DMX control, high CRI/TLCI and
accurate color performance, for broadcast studio,
mobile studio, live streaming studio install applications.
3300 Lux @ 1 meter
CL-100 has 720pcs long life SMD LEDs, outputs 100W power,
feeds 3300Lux luminance at 1 meter distance (center), supports
0 to 100% PWM digital dimming, smoothly and non-flickering.
The SMD LEDs featured high uniformity of illuminance, soft and
bright, an ideal light source for Broadcast studios, green keyer,
live streaming etc.
Wider Beam Angle
The CL-100 SMD LEDs have wider
beam angle comparing to the
traditional DIP LED bulbs. It will
generate an equally spread area light
from center to edge, instead of a
glaring light spot that suddenly
declined from center to edge.
The wider angle equally spread light
produces a nature light environment
in studio.
5600K Daylight Color Temp
CL-100 adopts 4-step MacAdam Ellipse SMD-LEDs,
outputs accruate 5600K color temperature for
daylight studio application.
Accurate Color Render
CRI 97; TLCI 99
CRI (Color Rendering Index) is a measure of the
ability of a light source to reveal the colors of various
objects faithfully in comparison with a natural light
source. And TLCI (Television Lighting Consistency
Index) is special for the color reveal ability by camera
sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while
CL-100 offers the super high CRI at 97 and TLCI at
99, and will not lose the object original colors.
DMX, AC IN & LOOP
CL-100 provides 5-pin XLR DMX512 in and out,
with a 5V USB-A socket to power wireless DMX
receiver. For convenient studio installation, the
CL-100 provides PowerCON True 1 AC in and loop
out sockets, which will loop through more than 25x
CL-100 lights under 220V AC voltage, and 13x
CL-100 lights under 110V voltage.
Optional Honeycomb
CL-100 provides a 40° metal honeycomb plate for
optional purchase. The honeycomb can be used
together with barndoors.
Honeycomb Part number: LA-G100
LED | 720pcs SMD LEDs |
Illuminance | 3300Lux @ 1m |
Beam angle | 65° half peak |
Color Temperature | 5600K |
CRI | 97 |
TLCI | 99 |
Power | 100W |
USB | 5V USB-A power out |
DMX | DMX512, 5pin XLR IN & OUT |
AC Power | PowerCON TRUE1 AC 100-240V 50/60Hz input & output |
Dimension | 480×240×87mm |
Lighting area | 435×195mm |
weight | 3.2kg |
MSRP
MSRP
MSRP
-

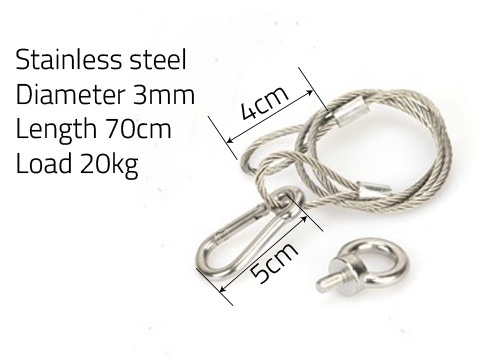

Safety rope
-
PowerCON TRUE1 AC cable
-
LA-PO100
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT CL-100 and CL-100D studio panel lights -
PA-LC20
PowerCON TRUE1 loop out cable, 2meters, 16A load, AC 220V: Max 25x CL-100 looped AC 110V: Max 13x CL-100 looped -
LA-G100
Honeycomb 40°, metal, install to the front frame of the light, can work together with barndoors
-
CL-100D
100W Bi-color Studio SMD Panel LED Light
2:1 size, 3300Lux@1m, 2700-6500K, DMX, CRI 97 TLCI 99, AC IN & OUT
