› 1440pcs Surface mounted LEDs
› 2:1 size, 100W, 3300Lux @ 1meter
› Half-peak 65° wide beam angle
› 2700K-6500K continuously adjust
› 0-100% flick-free dimming
› CRI Ra 97, TLCI 99, SSI (D55) 75
› DMX512 controlled color and dimmer
› Dimmer/Color Temp independent DMX addr
› USB power out for wireless DMX receiver
› LCD display color, dimmer and DMX addr
› PowerCON TRUE1 AC in and loop out
› 4-leaf metal barn doors and Yoke bracket
› Optional 40° honeycomb (LA-G100)
100W Studio Panel LED Light
Brighter, softer, wider beam angle
CL-100D is a 100W 2:1 Bi-color SMD LED panel light,
with DMX control, high CRI/TLCI and accurate color
performance, for broadcast studio, mobile studio, live
streaming studio install applications.
3300 Lux @ 1 meter
CL-100D has 1440pcs long life SMD LEDs, outputs 100W
power, feeds 3300Lux luminance at 1 meter distance (center),
supports 0 to 100% PWM digital dimming, smoothly and
non-flickering.
The SMD LEDs featured high uniformity of illuminance, soft and
bright, an ideal light source for Broadcast studios, green keyer,
live streaming etc.
Wider Beam Angle
The CL-100D SMD LEDs have wider
beam angle comparing to the
traditional DIP LED bulbs. It will
generate an equally spread area light
from center to edge, instead of a
glaring light spot that suddenly
declined from center to edge.
The wider angle equally spread light
produces a nature light environment
in studio.
2700K-6500K Continuously
CL-100D adopts 4-step MacAdam Ellipse SMD-LEDs,
consists of 100W 2700K LEDs and 100W 6500K
LEDs, and can be continuously adjusted between
2700K and 6500K.
Accurate Color Render
CRI 97; TLCI 99
CRI (Color Rendering Index) is a measure of the
ability of a light source to reveal the colors of various
objects faithfully in comparison with a natural light
source. And TLCI (Television Lighting Consistency
Index) is special for the color reveal ability by camera
sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while
CL-100D offers the super high CRI at 97 and TLCI at
99, and will not lose the object original colors.
DMX, AC IN & LOOP
CL-100D provides 5-pin XLR DMX512 in and out,
with a 5V USB-A socket to power wireless DMX
receiver. For convenient studio installation, the
CL-100D provides PowerCON True 1 AC in and loop
out sockets, which will loop through more than 25x
CL-100D lights under 220V AC voltage, and 13x
CL-100D lights under 110V voltage.
Independent DMX Addr Setting
The regular Bi-color lights use N and N+1 to set Dimmer
and Color temp DMX addresses, which means 1x light
occupy 2x DMX sliders on the console.
Now the CL-100D can set independent DMX addresses
for Dimmer and Color temp. For example you can set Color
temp DMX 024 for every light, and Dimmer DMX 001,
002, 003... sequentially, to save sliders on the console.

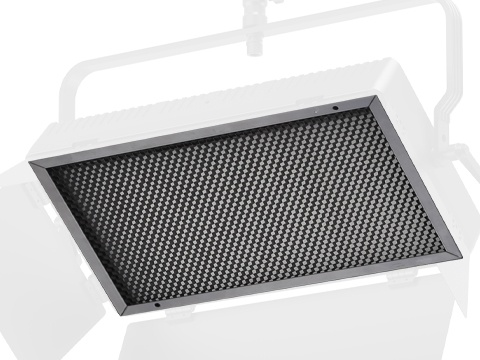

Optional Honeycomb
CL-100D provides a 40° metal honeycomb plate
for optional purchase. The honeycomb can be used
together with barndoors.
Honeycomb Part number: LA-G100
LED | 1440pcs SMD LEDs |
Illuminance | 3300Lux @ 1m |
Beam angle | 65° half peak |
Color Temperature | 2700K-6500K |
CRI | 97 |
TLCI | 99 |
Power | 100W |
USB | 5V USB-A power out |
DMX | DMX512, 5pin XLR IN & OUT |
AC Power | PowerCON TRUE1 AC 100-240V 50/60Hz input & output |
Dimension | 480×240×87mm |
Lighting area | 435×195mm |
weight | 3.2kg |
MSRP
MSRP
MSRP
-

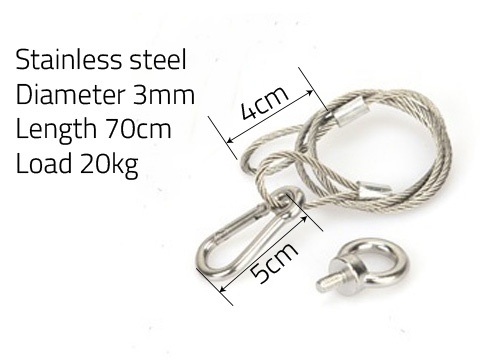

Safety rope
-
PowerCON TRUE1 AC cable
-
LA-PO100
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT CL-100 and CL-100D studio panel lights -
PA-LC20
PowerCON TRUE1 loop out cable, 2meters, 16A load, AC 220V: Max 25x CL-100D looped AC 110V: Max 13x CL-100D looped -
LA-G100
Honeycomb 40°, metal, install to the front frame of the light, can work together with barndoors
-
