› 400W COB LED Fresnel studio light
› 15-50° Flood/Spot angle adjust
› Optional E-motor adjust spot angle by DMX
› 130,000Lux@1m high bright hard light
› Fresnel and Fly's eye compound lens
› 2700K-6500K continuously adjust
› 0-100% flick-free dimming
› CRI Ra 97, TLCI 99, SSI(D55) 75
› DMX512 In & out dimmer control
› Dimmer/Color Temp/Fan off DMX addresses
› USB power out for wireless DMX receiver
› LCD display menu operation system
› PowerCON TRUE1 AC in and loop out
› 4-leaf metal barn doors and Yoke bracket

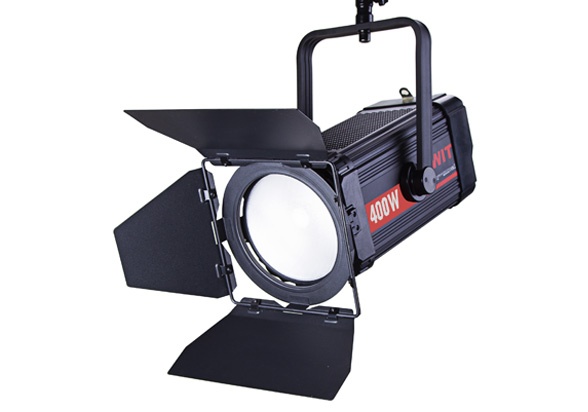

400W COB-LED Fresnel Light
High intensity 130,000Lux @ 1m
FL-C400D is a 400W Bi-color COB-LED fresnel light, 130,000Lux @1m high bright, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, theatre, film set install applications.
15°-50° Spot/Flood Adjust
FL-C400D outputs 15°- 50° beam angle by adjusting
position of LED board internally, 0 to 100% PWM digital
dimming, smoothly and non-flickering.
Fresnel and Fly's Eye Lens
FL-C400D is equipped with double side compound lens - front fresnel rings to converge the lights and rear fly's eye array to eliminate yellow halo, and get an even distributed spot light.
2700K-6500K Continuous
FL-C400D COB-LED includes 400W 2700K and 400W 6500K LED, and can be continuously adjusted between 2700K and 6500K. The light outputs 400W
at any color temperature.
Accurate Color Render
CRI 97; TLCI 99
CRI (Color Rendering Index) is a measure of the
ability of a light source to reveal the colors of various
objects faithfully in comparison with a natural light
source. And TLCI (Television Lighting Consistency
Index) is special for the color reveal ability by camera
sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while
FL-C400D offers the ultra high CRI at 97 and TLCI at
99, and will not lose the object original colors.
DMX, AC IN & LOOP
FL-C400D provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver, and support PowerCon True1 AC input and loop output for easy cable works when building studio.
Menu Operating System
Optional Spot Angle E-motor
FL-C400D supports external electro-motor installed to adjust the spot/flood angle by Menu knob or by DMX control. The optional E-motor is easily user installed (Part number LA-M50).
You can also order the light with factory pre-installed E-motor, SKU model FL-C400DM.
4-leaf Metal Barn Door
FL-C400D is equipped with 4-leaf metal barn
doors, dismountable and rotatable.
Optional Diffuser Box
Provide Octangle Diffuser Box as optional
accessory. Compatible with all 90mm
diameter fresnel lights includes SWIT
FL-C100, FL-C100D, FL-C200D, FL-C400D,
etc, with dual diffuser layers and eggcrate.
Part Number: LA-BC90.
LED | COB Chip-on-board LED |
Spot angle | 15° - 50° adjust |
Illuminance | 130,000Lux@1m/Spot |
Color Temperature | 2700K - 6500K |
CRI | 97 |
TLCI | 99 |
Power | 400W |
USB | 5V USB-A power out |
DMX | DMX512, 5pin XLR IN & OUT |
AC Power | PowerCON TRUE1 AC 100-240V 50/60Hz input & output |
Dimension | 175×175×400mm |
Weight | 6.2kg |
MSRP
MSRP
MSRP
-
PowerCON AC cable
-
Barn door kit
-
Black out cloth
-

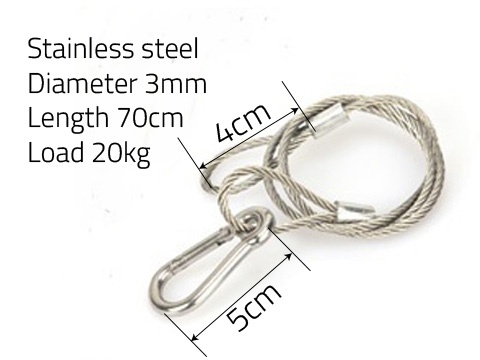

Safety rope
-
LA-BC90
Octangle Diffuser Box with dual diffuser layers and eggcrate, Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc -
LA-POC200
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT FL-C200D and FL-C400D studio fresnel lights -
LA-M50
Optional Electro-motor to adjust Spot/Flood angle by Menu knob or by DMX. Easy to install by users.
