› 200W COB LED Fresnel studio light
› 15-50° Flood/Spot angle adjust
› Optional E-motor adjust spot angle by DMX
› 65,000Lux@1m high bright hard light
› Fresnel and Fly's eye compound lens
› 2700K-6500K continuously adjust
› 0-100% flick-free dimming
› Preset simulated light effects
› CRI Ra 97, TLCI 99, SSI(D55)75
› DMX512 In & out dimmer control
› Dimmer/Color Temp/Fan off DMX addresses
› USB power out for wireless DMX receiver
› LCD display menu operation system
› PowerCON TRUE1 AC in and loop out
› 4-leaf metal barn doors and Yoke bracket
200W COB-LED Fresnel Light
High intensity 65,000Lux @ 1m
FL-C200D is a 200W Bi-color COB-LED fresnel light,
65,000Lux @1m high bright, with DMX control, high
CRI/TLCI and accurate color performance, for broadcast studio, theatre, film set
install applications.
15°-50° Spot/Flood Adjust
FL-C200D outputs 15°-50° beam angle by adjusting
position of LED board internally, and supports optional E-motor to adjust spot angle by DMX. 0 to 100% PWM digital
dimming, smoothly and non-flickering.
Fresnel and Fly's Eye Lens
FL-C200D is equipped with double side compound lens - front fresnel rings to converge the lights and rear fly's eye array to eliminate yellow halo, and get an even distributed spot light.
2700K-6500K Continuous
FL-C200D COB-LED includes 200W 2700K and
200W 6500K LED, and can be continuously adjusted
between 2700K and 6500K. The light outputs 200W high intensity at any color temperature.
Accurate Color Render
CRI 97; TLCI 99
CRI (Color Rendering Index) is a measure of the
ability of a light source to reveal the colors of various
objects faithfully in comparison with a natural light
source. And TLCI (Television Lighting Consistency
Index) is special for the color reveal ability by camera
sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while
FL-C200D offers the ultra high CRI at 97 and TLCI at
99, and will not lose the object original colors.
DMX, AC IN & LOOP
FL-C200D provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver, and support PowerCon True1 AC input and loop output for easy cable works when building studio.
Menu Operating System
Optional Spot Angle E-motor
FL-C200D supports external electro-motor installed to adjust the spot/flood angle by Menu knob or by DMX control. The optional E-motor is easily user installed (Part number LA-M50).
You can also order the light with factory pre-installed E-motor, SKU model FL-C200DM.
4-leaf Metal Barn Door
FL-C200D is equipped with 4-leaf metal barn
doors, dismountable and rotatable.

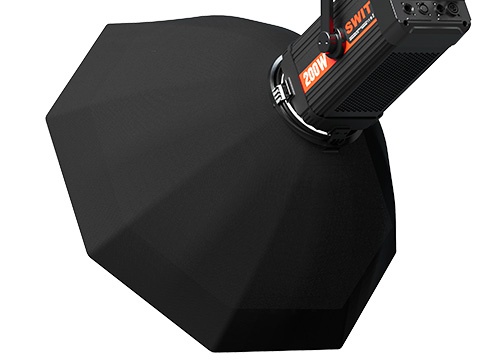

Optional Diffuser Box
Provide Octangle Diffuser Box as optional
accessory. Compatible with all 90mm
diameter fresnel lights includes SWIT
FL-C100, FL-C100D, FL-C200D, FL-C400D,
etc, with dual diffuser layers and eggcrate.
Part Number: LA-BC90.
LED | COB Chip-on-board LED |
Spot angle | 15° - 50° adjust |
Illuminance | 65,000Lux@1m/Spot |
Color Temperature | 2700K - 6500K |
CRI | 97 |
TLCI | 99 |
Power | 200W |
USB | 5V USB-A power out |
DMX | DMX512, 5pin XLR IN & OUT |
AC Power | PowerCON TRUE1 AC 100-240V 50/60Hz input & output |
Dimension | 175×175×400mm |
Weight | 6.2kg |
MSRP
MSRP
MSRP
-

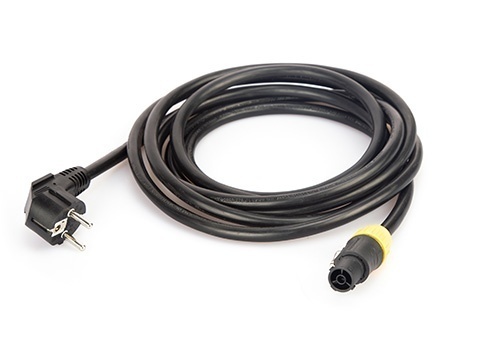

PowerCON AC cable
-
Barn door kit
-
Black out cloth
-

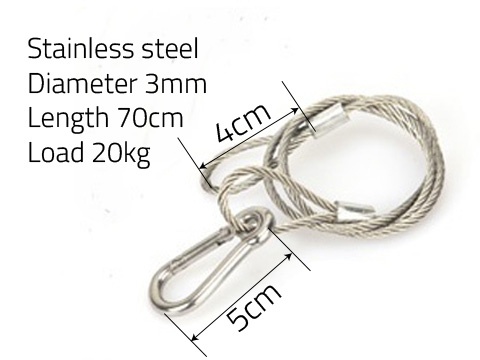

Safety rope
-
LA-BC90
Octangle Diffuser Box with dual diffuser layers and eggcrate, Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc -
LA-POC200
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT FL-C200D and FL-C400D studio fresnel lights -
LA-M50
Optional Electro-motor to adjust Spot/Flood angle by Menu knob or by DMX. Easy to install by users.
