DB-F570 NP-F type USB-C Dummy Battery
› USB-C PD Power Input
› NP-F type Pins 8.4V (Reg.) 3A output
› For SONY ENG cameras with NP-F plate
› For BMPCC 6KG2 / 6KPRO
› For ZCAM E2/E2-M4/S6/S6G/F6/F8
› For any Video Devices with NP-F plate
› Display power info in SONY viewfinder
› Cable length 50cm

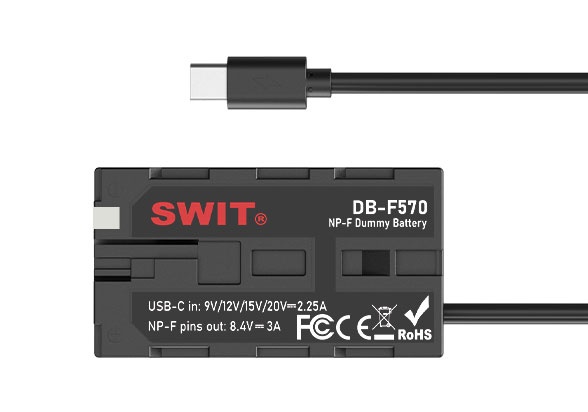

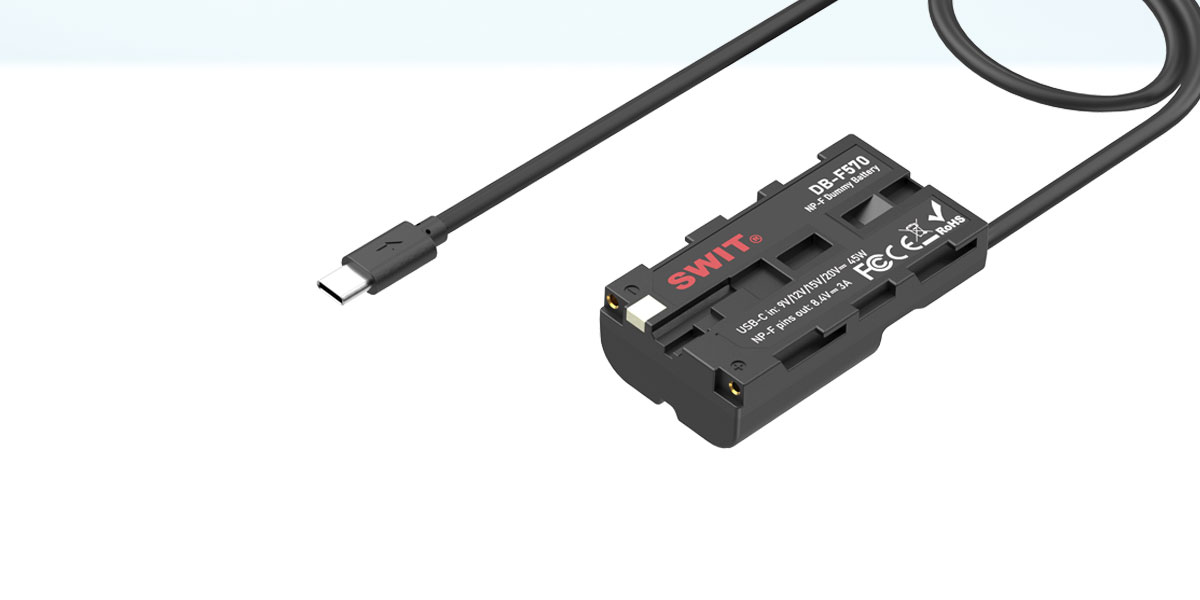

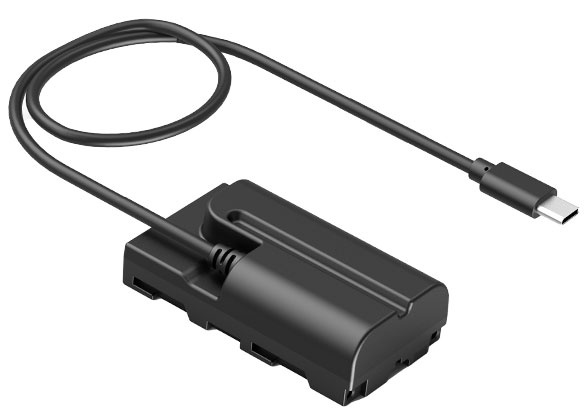

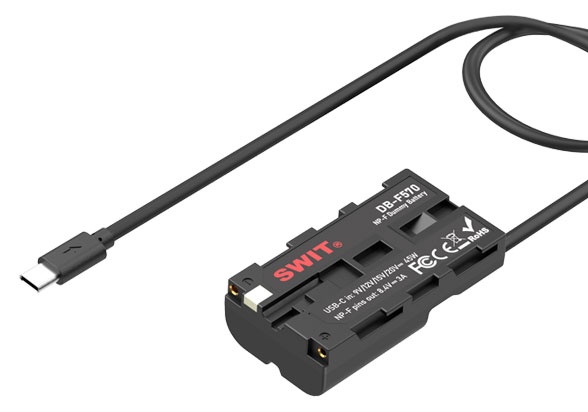

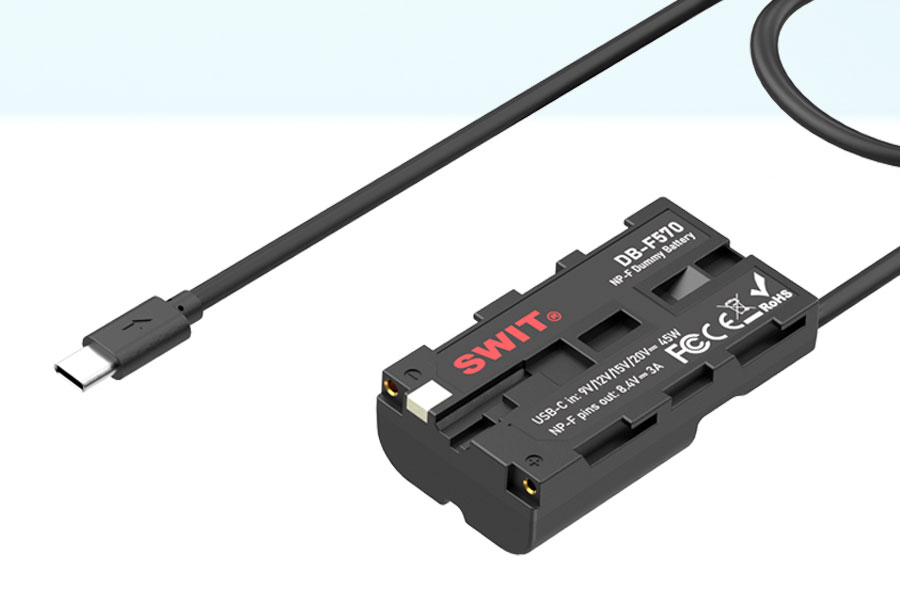

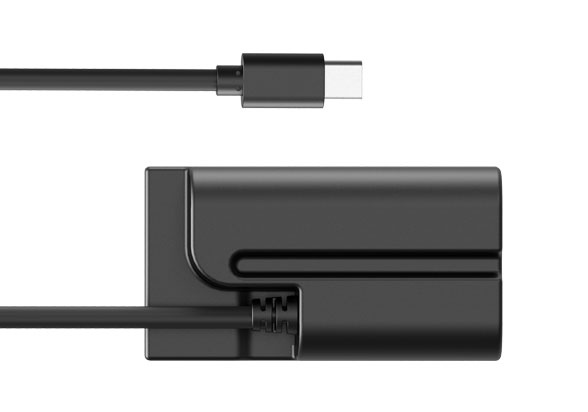

NP-F Type USB-C Dummy Battery
DB-F570 is the NP-F type dummy battery with USB-C port,
allows you to power SONY ENG cameras, and all 3rd party
cameras and video devices that use NP-F battery, by external
USB-C power source.

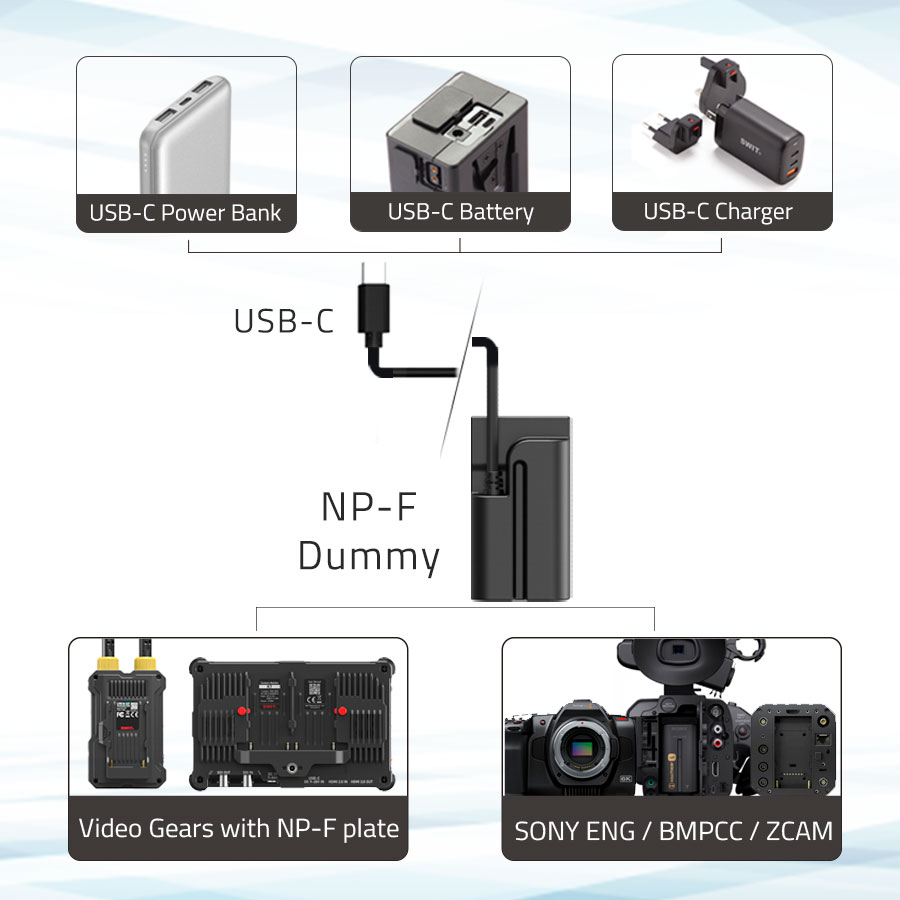

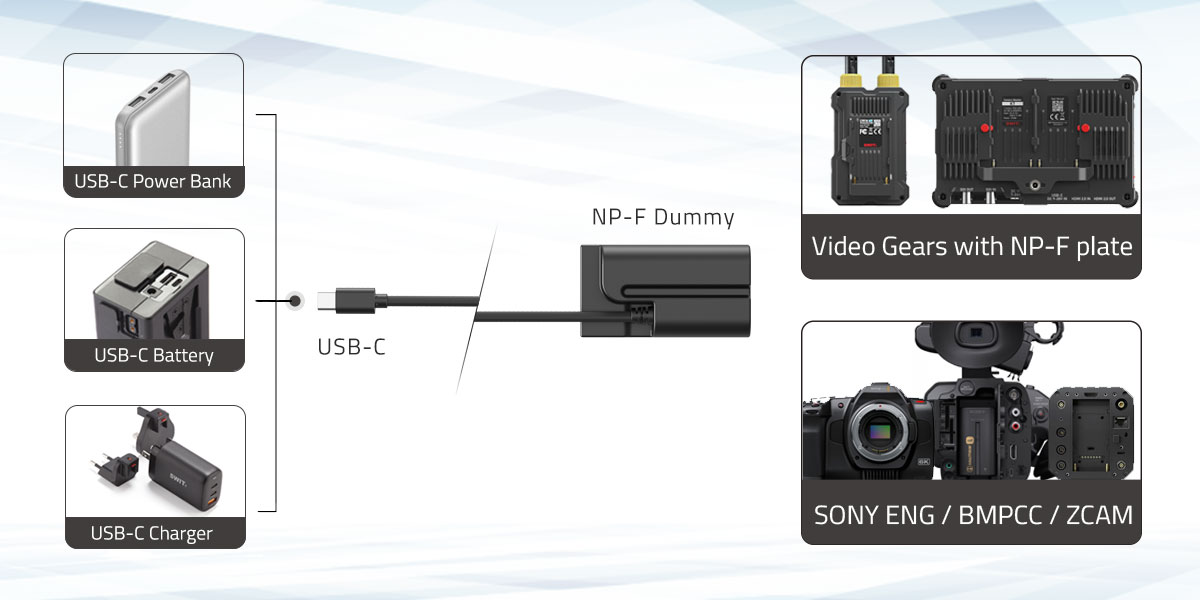

Power Cameras by USB-C Source
You can use USB-C power bank, USB-C V-mount batteries or
USB-C power adaptor to provide continuous power for
cameras and video devices, extend runtime and ensure
continuous power without interruption.

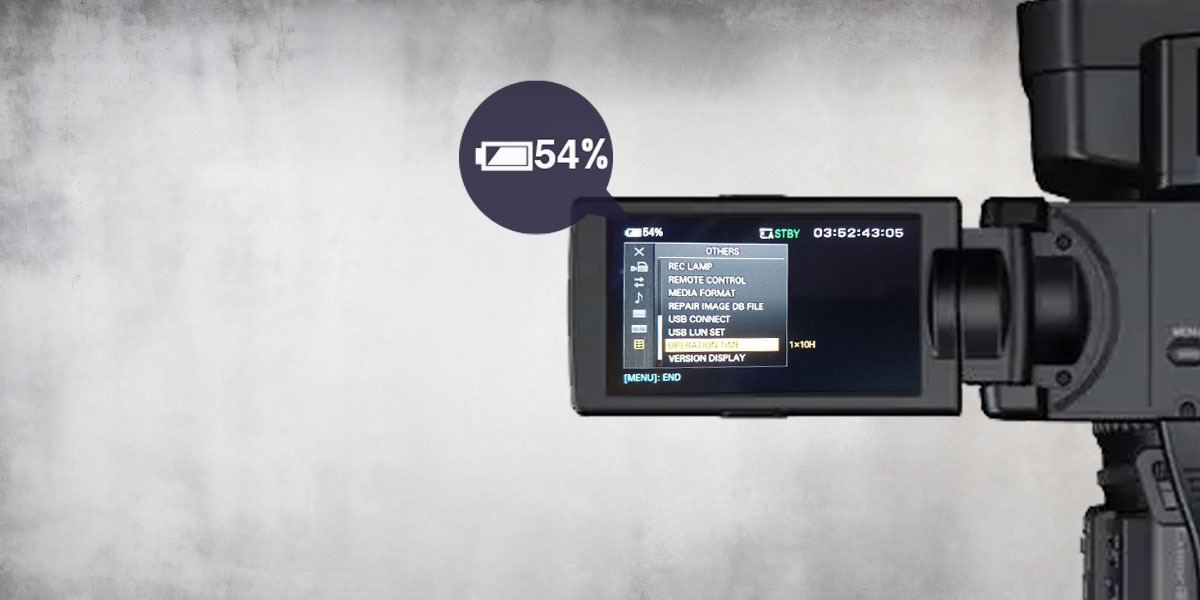

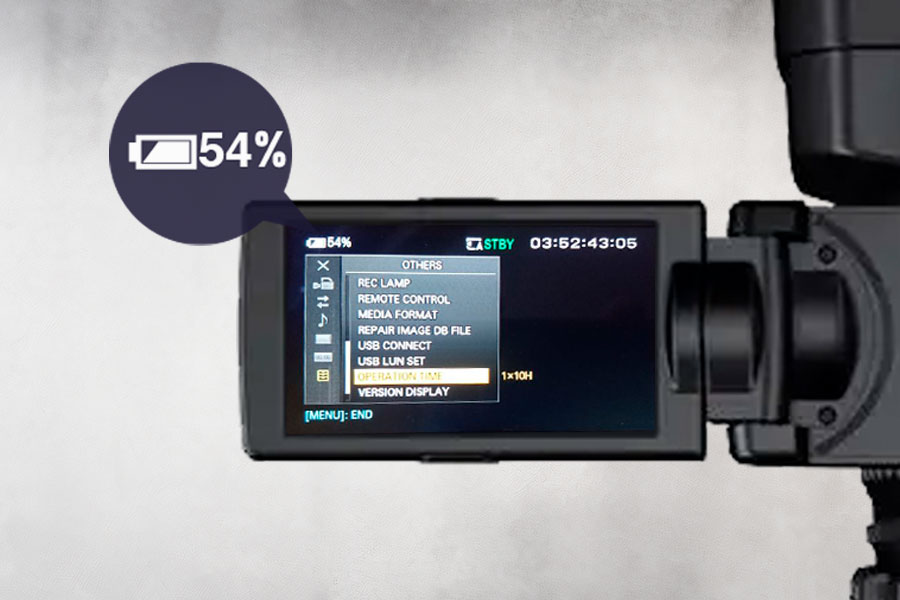

Power Info Read by Cameras
The DB-F570 dummy battery features a digital power
management chip that enables data exchange with
SONY ENG camcorders, displaying remaining battery
level information in the Viewfinder.
USB-C input | 9V/12V/15V/20V 2.25A |
Battery pins output | 8.4V (Reg.), 3A |
Compatible cameras | SONY HXR-NX100/200, HXR5R/NX3 SONY HXR-MC2500 SONY HDR-FX1000/1000E, AX2000 BMD BMPCC 6KPRO / 6KG2 ZCAM E2/E2-M4, E2-S6/S6G, E2-F6/F8 and all video devices with NP-F plate |
Cable length | 50cm |
MSRP
MSRP
MSRP
-
DB-DF570
Dual Side NP-F Dummy Battery with USB-C
D-tap or USB-C input, to dual side NP-F output and USB-C output.
-
DB-E6P
Canon LP-E6P USB-C Dummy Battery
USB-C input to LP-E6P dummy, for Canon EOS DLSR and mirroless cameras
-
DB-FZ100
SONY NP-FZ100 USB-C Dummy Battery
USB-C input to NP-FZ100 dummy, for SONY FX3, FX2, A7 series
-

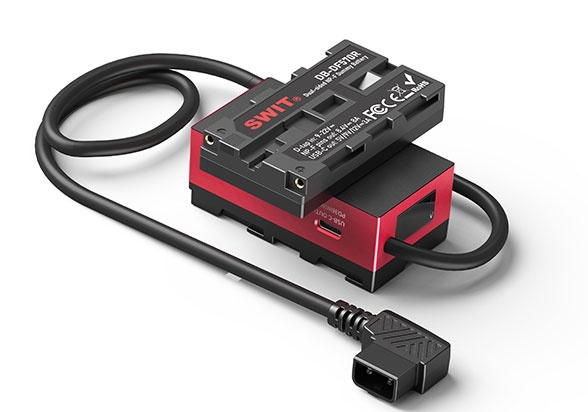

DB-DF570R
