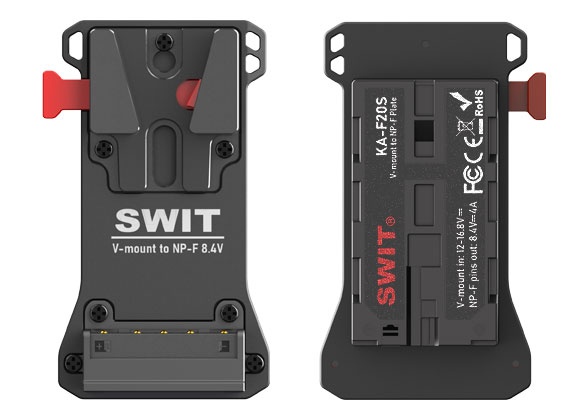

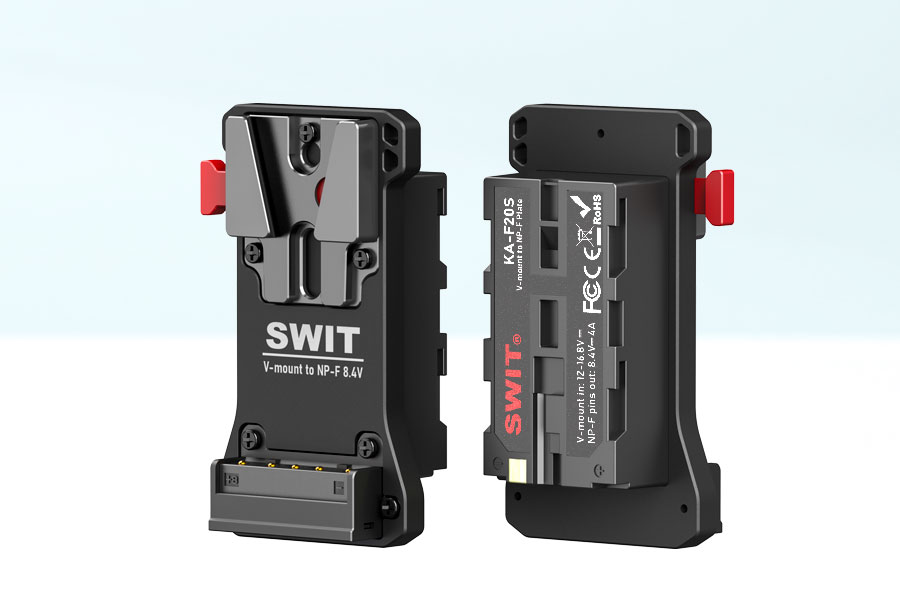

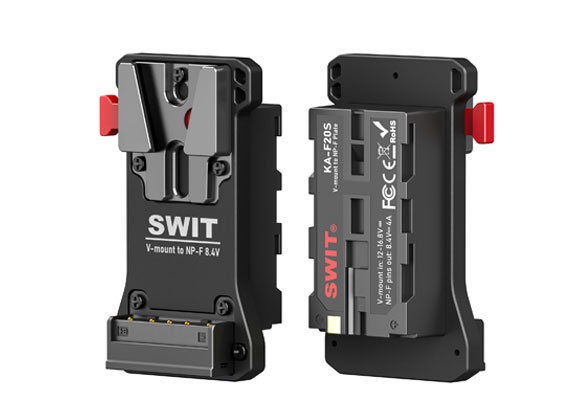

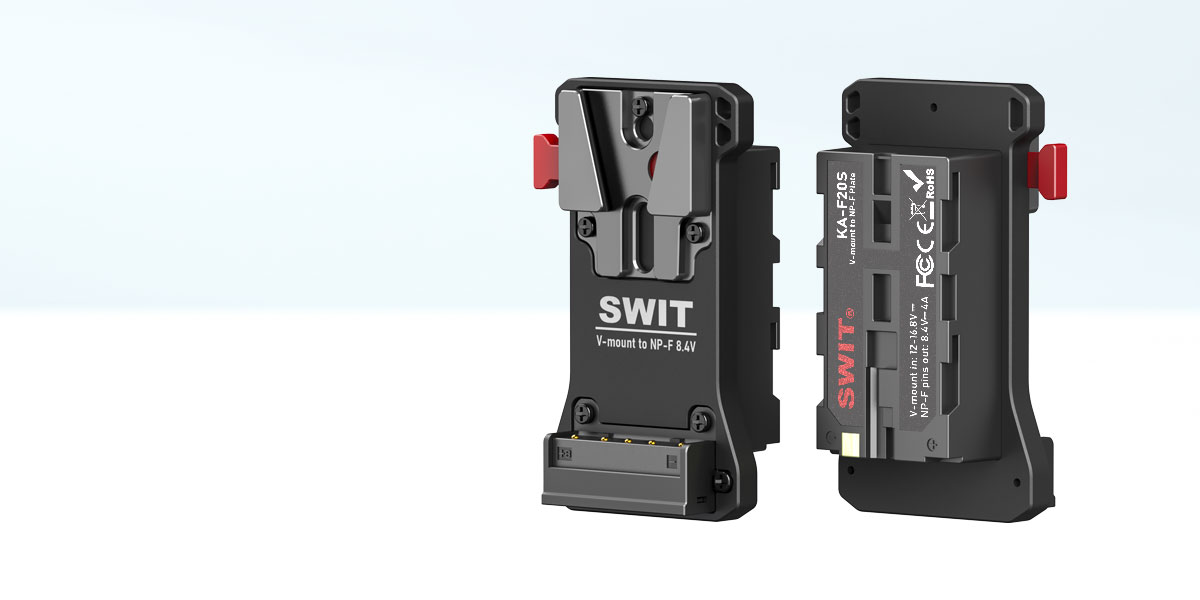

KA-F20S V-mount to NP-F 8.4V Plate
› V-mount battery 12-16.8V input
› NP-F pins Regulated 8.4V 4A output
› All metal housing, solid and reliable
› V-mount step-down design to keep balance
V-mount to NP-F 8.4V Reg.
The KA-F20S is a V-mount to NP-F conversion plate
that transforms standard 12–16.8V V-mount
batteries into regulated 8.4V NP-F power output.
Universally compatible with all NP-F equipped video
devices, to extend runtime by a higher capacity
V-mount battery.

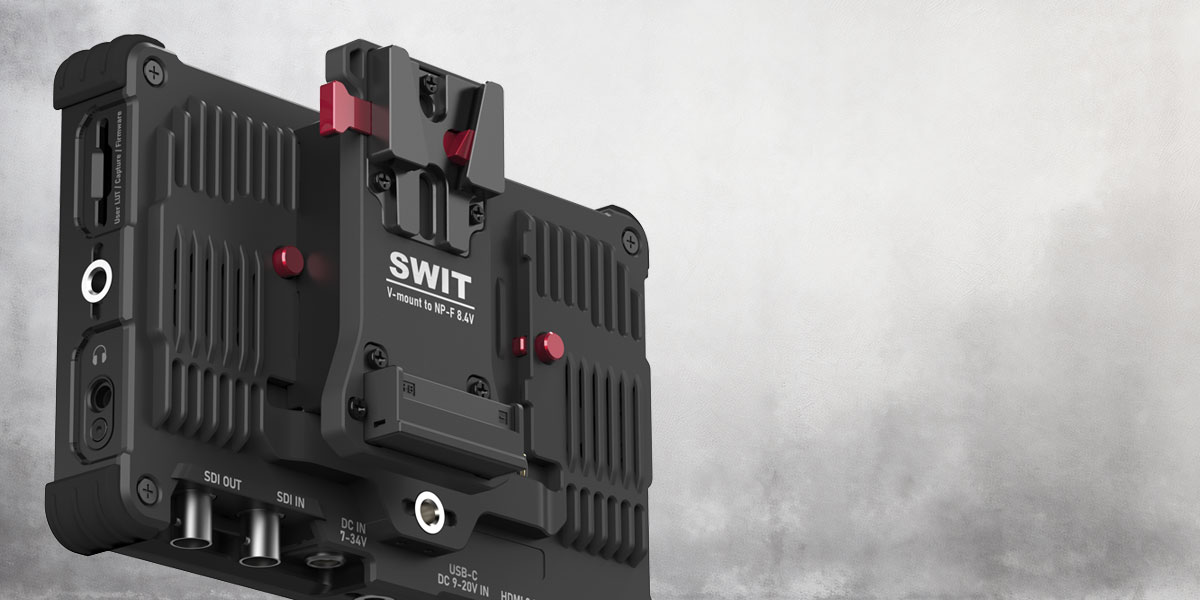

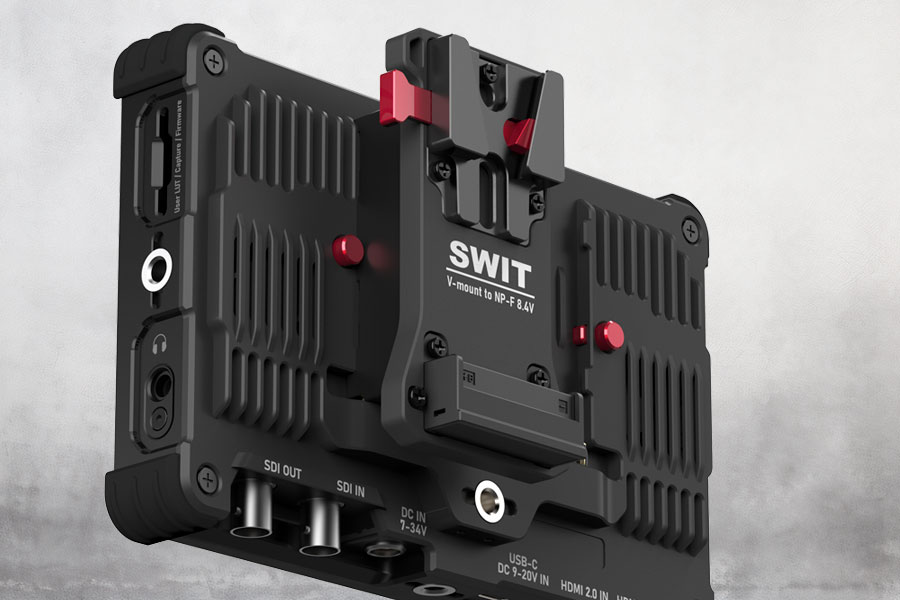

Solid All Metal Housing
The KA-F20S features a rugged all-metal
construction, providing solid support for
larger V-mount batteries with reliable
durability.

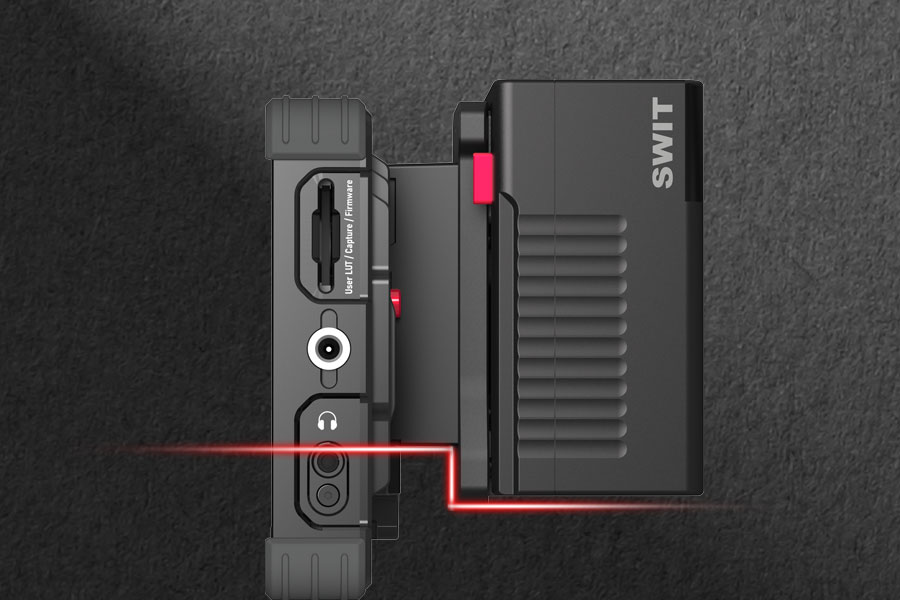

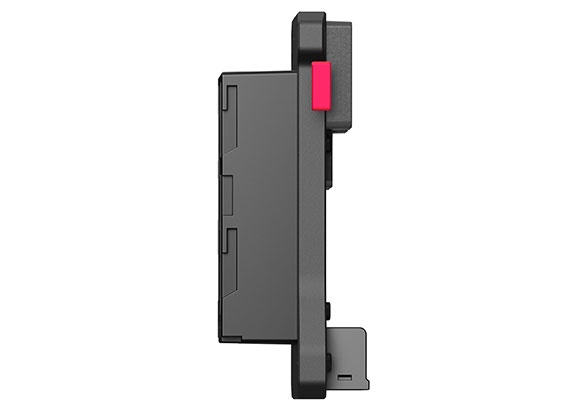

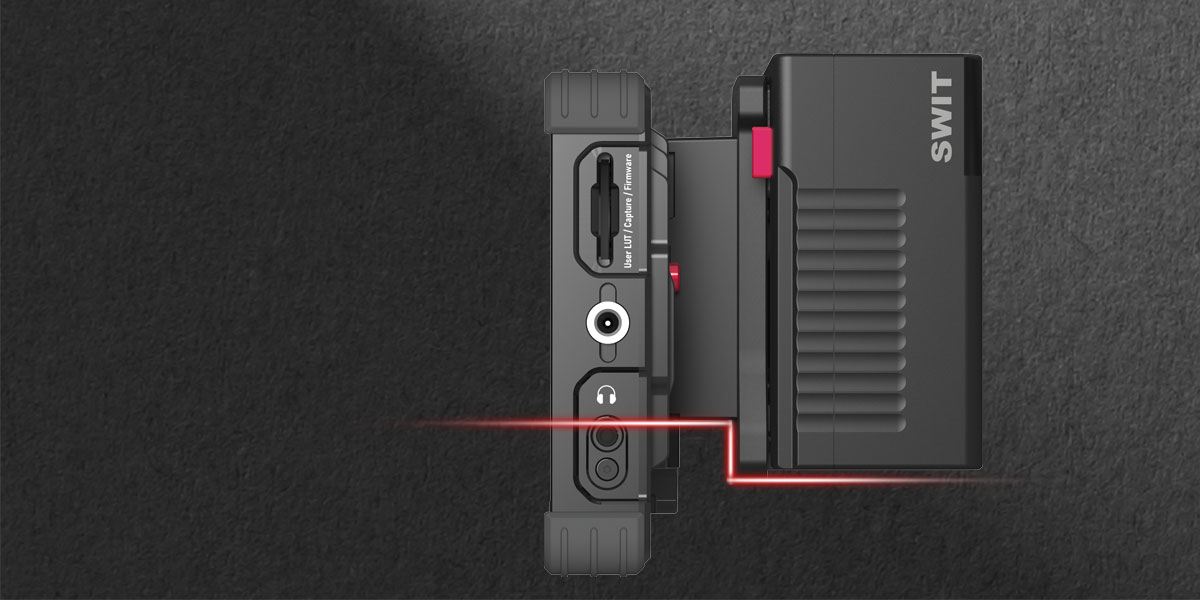

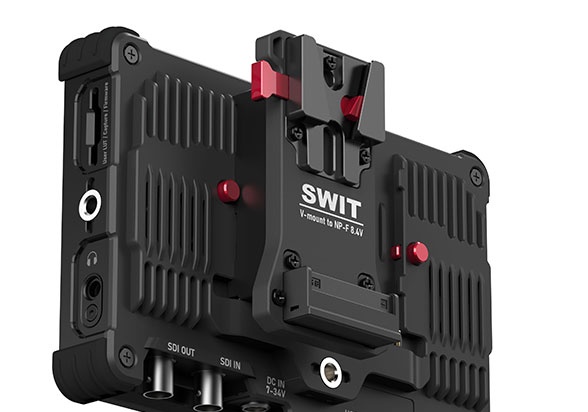

V-mount Step-Down Design
The KA-F20S employs a unique height-differential
design that reduces V-mount battery elevation,
ensuring balanced weight distribution and stable
operation.
V-mount input | 12-16.8V |
NP-F output | 8.4V (Reg.) 4A |
Dimension | 100×55×37mm NP-F part: 20mm deep |
MSRP
MSRP
MSRP
We provide a 1-year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or malfunction caused by use, maintenance, or installation not in accordance with the User Manual's instructions, including improper battery insertion or removal, incorrect polarity connection, exposure to moisture or conductive debris, or disassembly/repair without authorization of SWIT.
(2) Any damage caused by using third-party batteries, power sources, or accessories that do not comply with the recommended electrical specifications (e.g., voltage, current, or contact pin configuration), including but not limited to electrode overheating, melting, arcing, or short circuits resulting from incompatible battery design or poor battery quality.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning, flood, etc.) or human factors including dropping the plate, impact damage, forced battery removal at incorrect angles, or insertion of damaged or deformed batteries.
(4) Any damage or malfunction not caused by the product's design, workmanship, or manufacturing quality — including normal wear and tear of spring-loaded electrodes, contact pins, locking mechanisms, or surface finish scratching.
(5) Electrode breakage, bending, or deformation resulting from violent use, excessive force during battery attachment or detachment, or improper alignment of the battery onto the plate is specifically excluded from warranty coverage. This includes snapped, crushed, or pushed-in contact pins caused by user mishandling.
(6) Electrical or thermal damage (including melted plastic around electrodes, burnt contacts, or discoloration from heat) that is determined to be caused by a third-party battery's internal short circuit, over-current draw, overheating, or defective connector design shall not be covered under this warranty. Such conditions are the responsibility of the battery manufacturer.
