› 7-inch 1920×1080 optically bonded display
› Multi-touch screen and physical control buttons
› 2,800nits ultra bright for sunlight viewing
› All-metal with protective rubber corners guards
› 3G/HD-SDI and HDMI 2.0 (4K60p) in & out
› Support SDI ↔ HDMI cross conversion
› Support SDI / HDMI output with LUT
› Built-in Multiple Camera Delog Luts
› Up to 50× User Luts import via SD card
› Include a free 4GB SD card
› Image Capture and overlay with transparency
› Anamorphic desqueeze custom ratio 0.5x - 2x
› Menu orientation rotate and image rotate/mirror
› Peaking, Zebra, False color and full assist scopes
› 4-ch audio meters and a 3.5mm audio output
› Built-in dual NP-F battery slots with hot-swap
› Battery level on-screen display
› 2-pin LEMO 7-34V DC input
› USB-C PD 9V/12V/15V/20V DC input
› Optional monitor cage and sunhood kit
7-inch 2800nits Touch
3G-SDI and HDMI 2.0

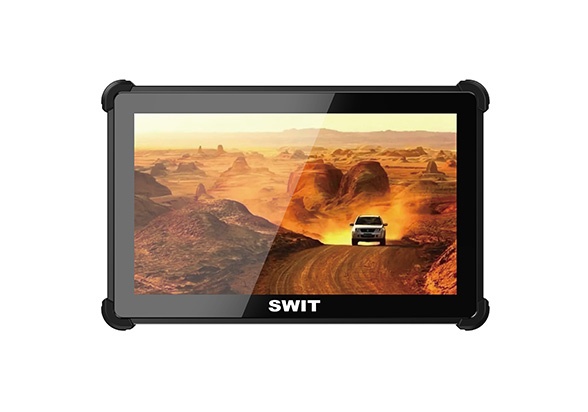

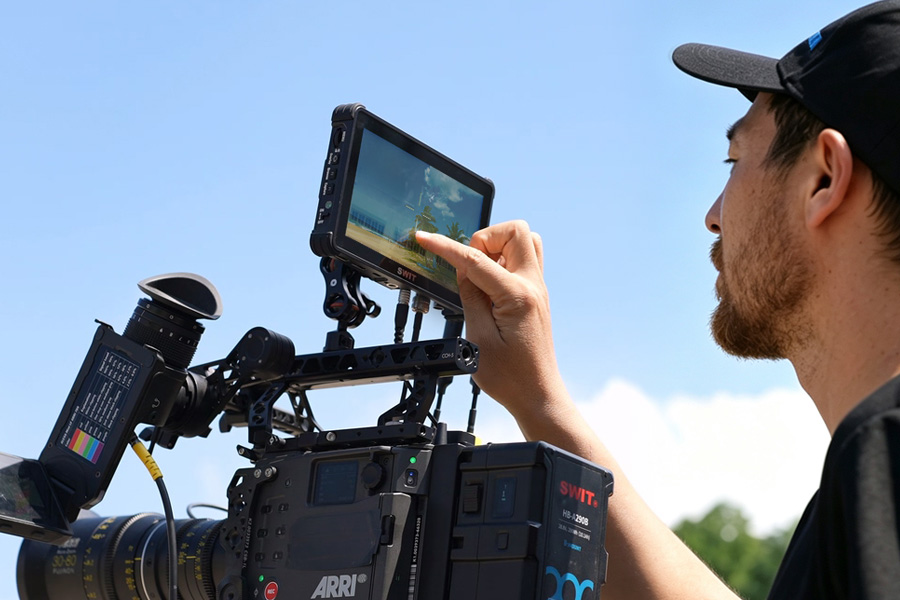

The K7 is a professional 7-inch on-camera
monitor built for filmmakers. Featuring a FHD
display with ultra-bright 2,800 nits, a rugged
full-metal body with rubber corner protections,
and both 3G-SDI and HDMI 2.0 (4K60P)
connectivity, it delivers exceptional visibility,
durability, and versatility—making it the ideal
monitoring companion on set.

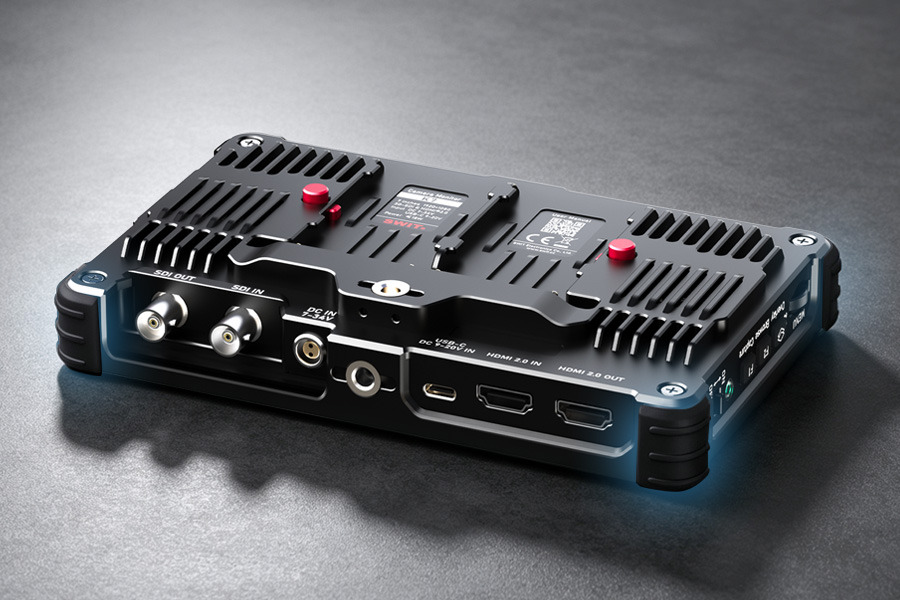

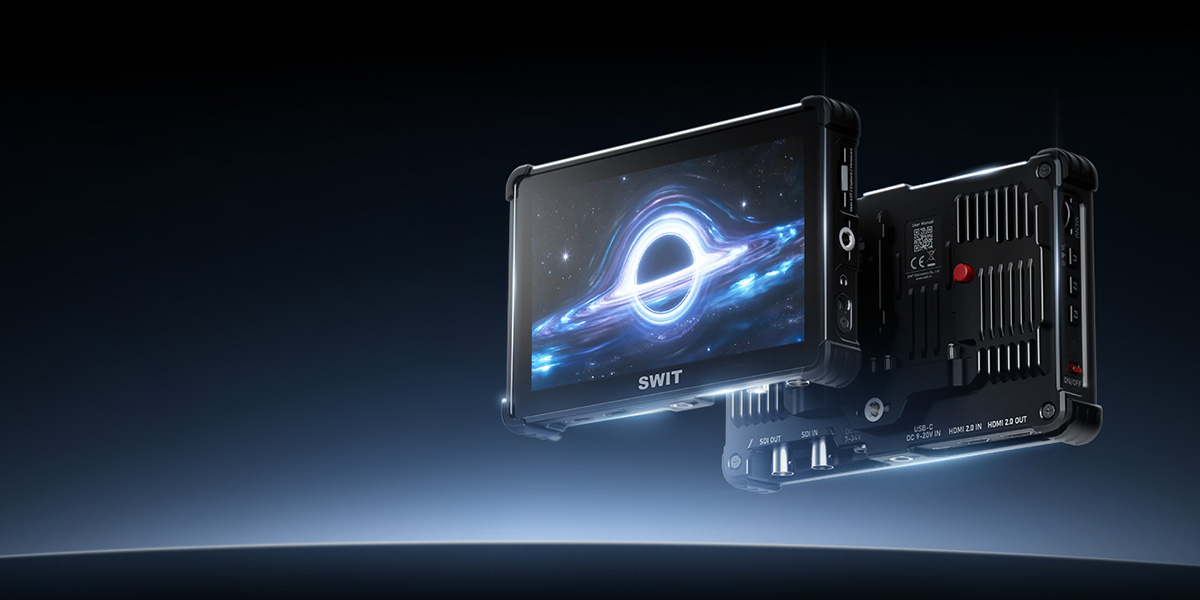

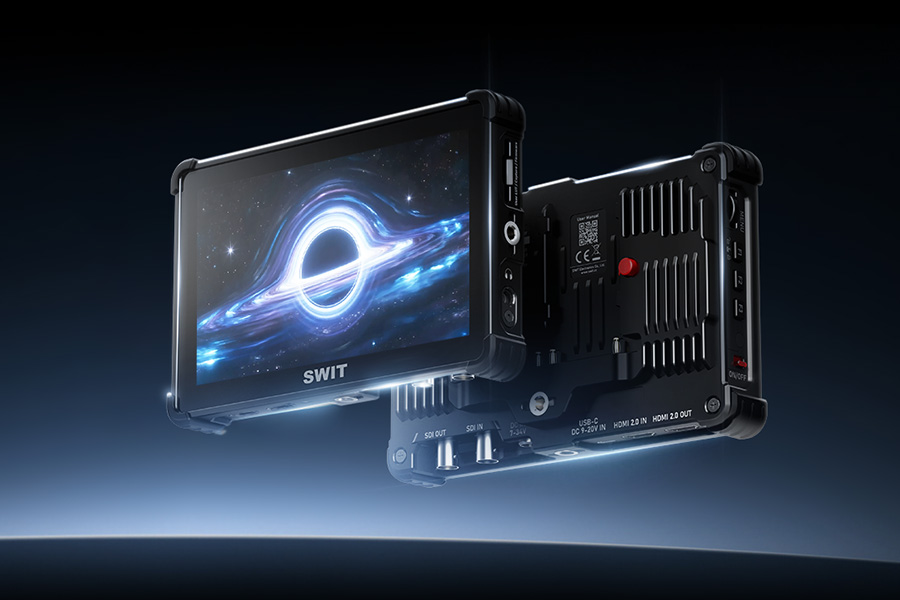

Rugged Durability
The K7 is built with a precision-CNC
full-metal aluminum body for rigidity
and heat management, plus four
rubber corner guards that absorb
shock from drops and collisions. This
rugged construction ensures reliable
protection on hectic sets, giving you
peace of mind in any shooting
environment.

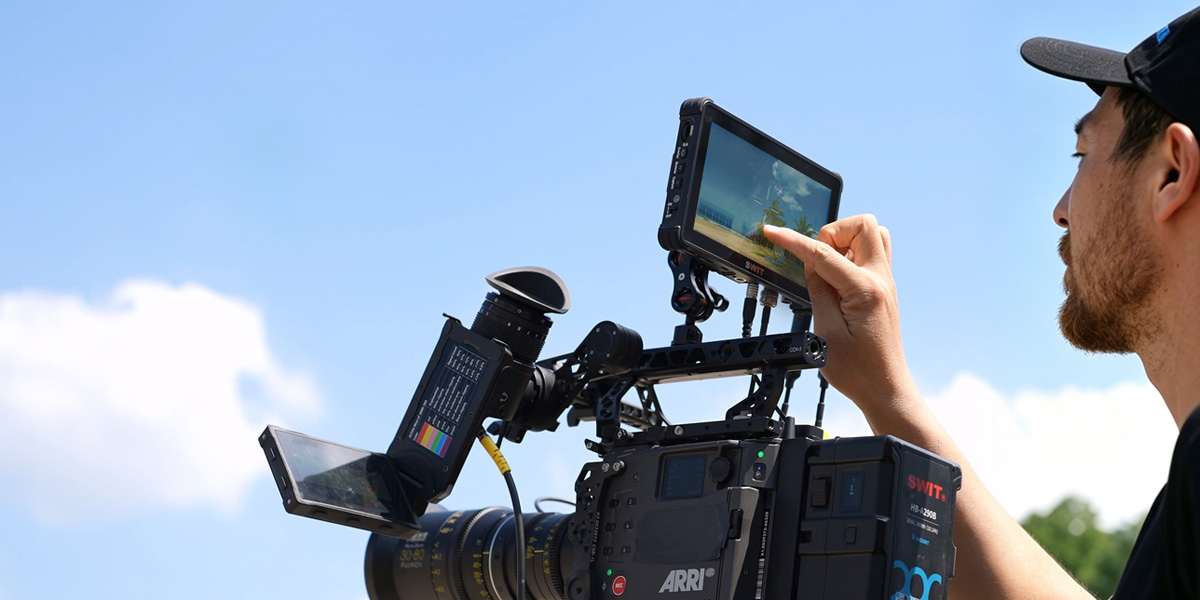

2,800nits Ultra Bright
The K7 delivers a crystal-clear image with its
2,800nits ultra-bright screen, ensuring easy
monitoring even in direct sunlight.

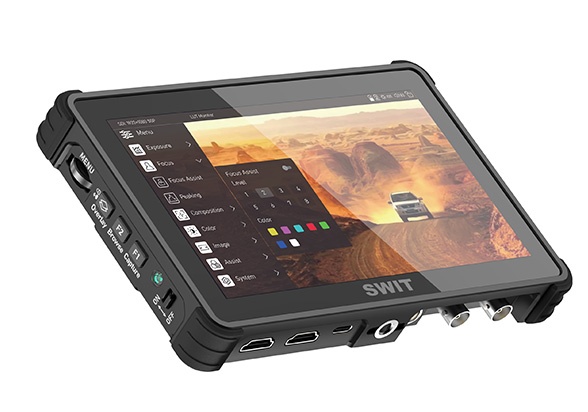

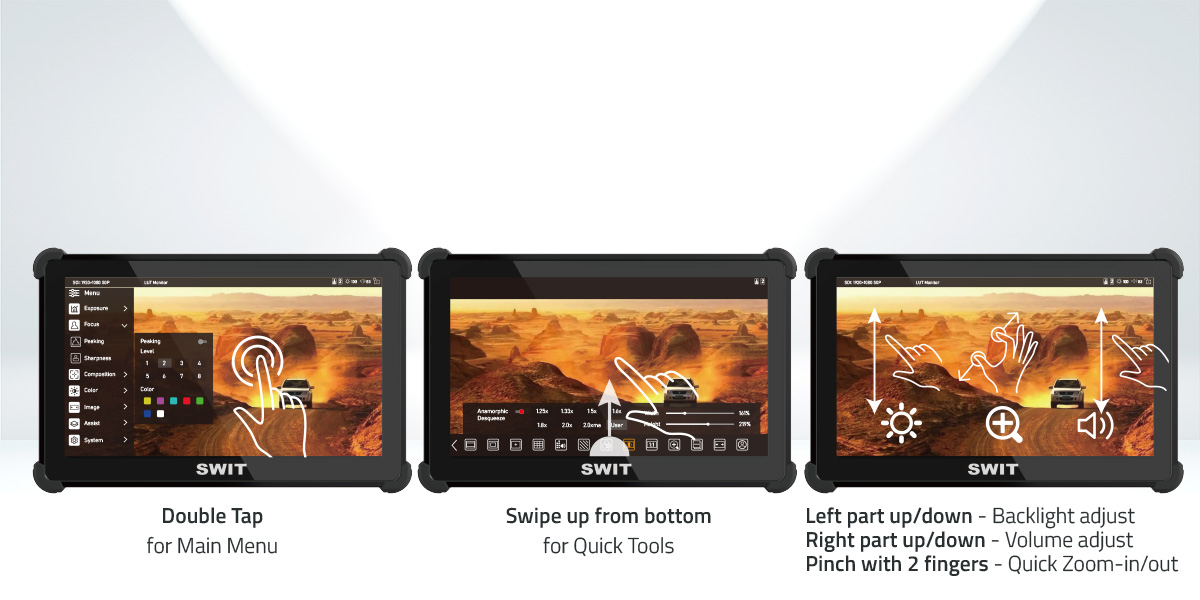

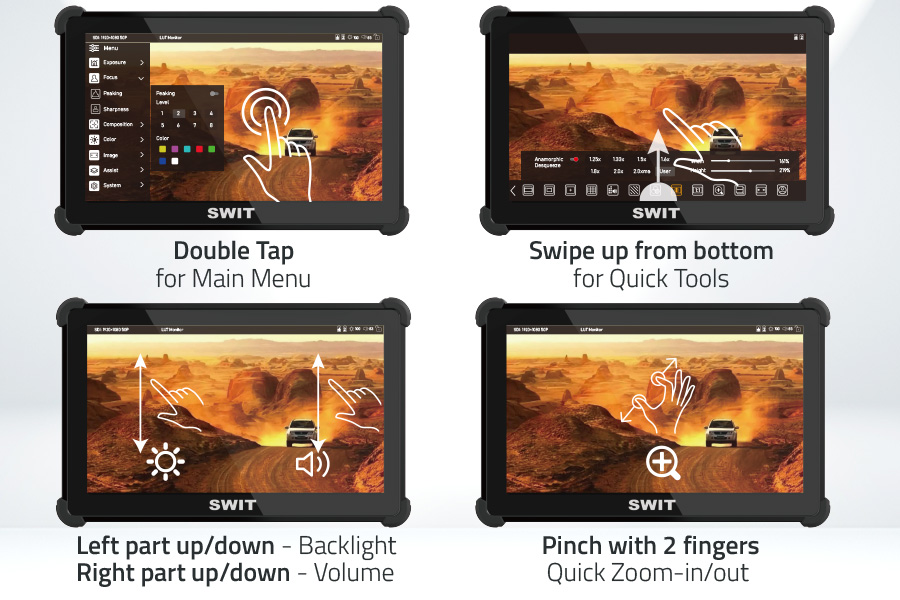

Intuitive Touch Control
The K7 features a fully laminated multi-touch screen for responsive, intuitive control. Gesture shortcuts like double-tap, swipe up,
and two-finger pinch allow quick access to focus zoom, settings, and menu navigation without distracting button presses.

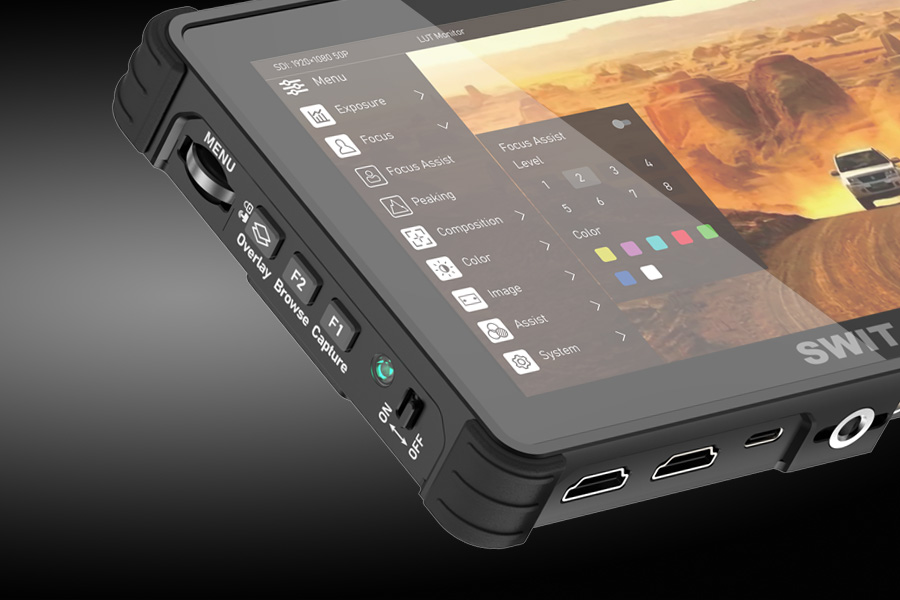

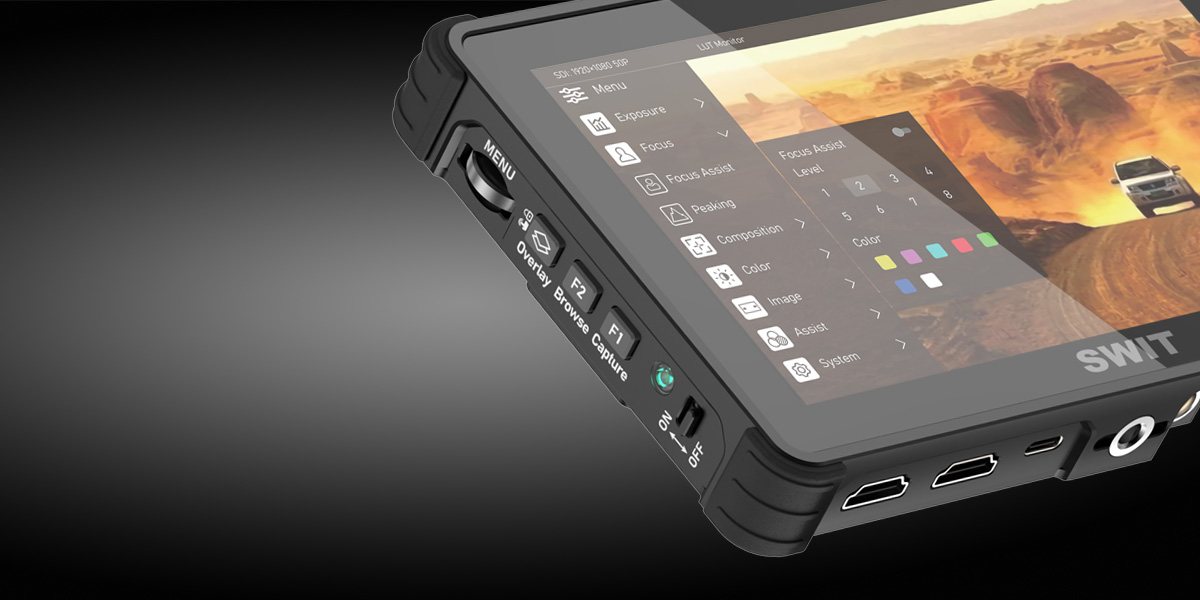

Button Controls
The K7 offers more than just touch—physical
controls are here for users who demand tactile
precision. A scroll wheel enables speedy menu
navigation, two customizable function keys put
your most-used tools at your fingertips, and a
dedicated button lets you instantly lock or unlock
the touchscreen to prevent accidental inputs
during critical takes.

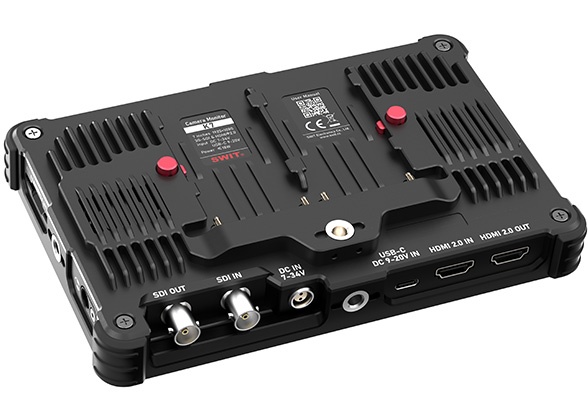

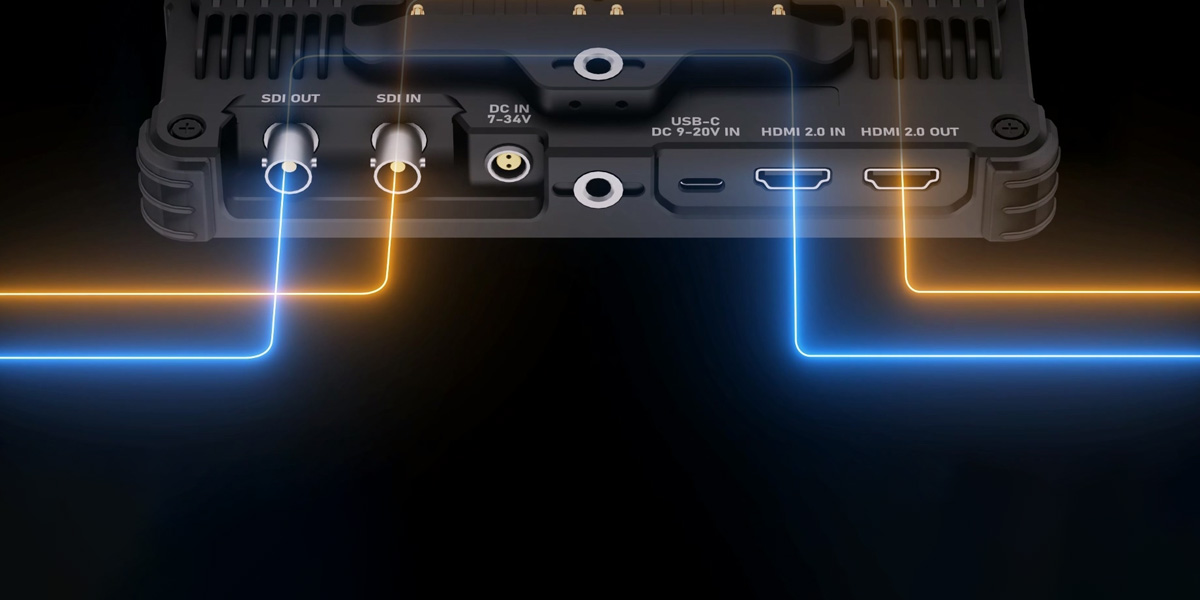

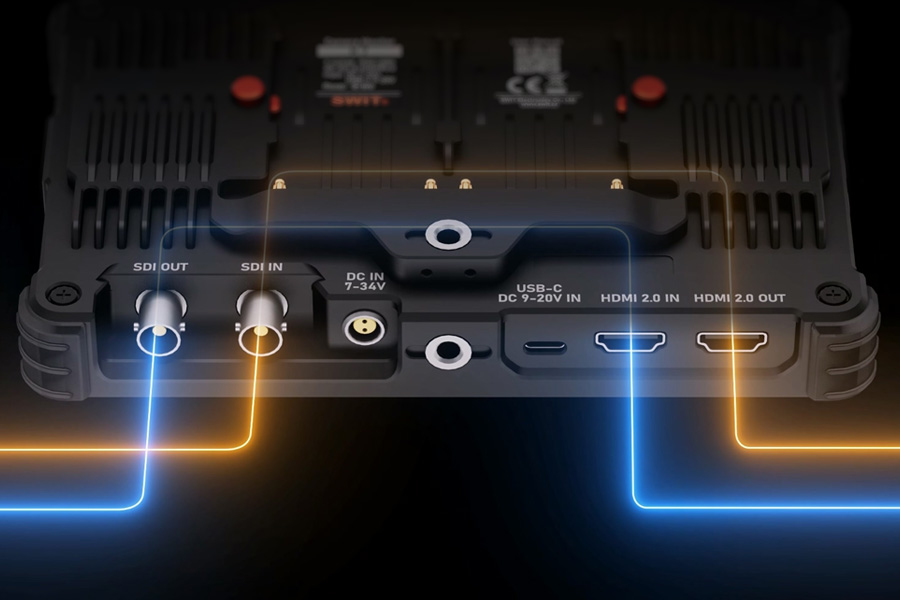

3G-SDI and HDMI 2.0, Cross-Conversion, Out with LUT
Both 3G-SDI and HDMI 2.0 (4K60P) input and loop out are provided for maximum connectivity, with support for SDI/HDMI
cross conversion to bridge different camera systems and external devices seamlessly. Moreover, you can choose whether to
apply the LUT to the SDI or HDMI output, perfect for sending a graded signal to monitors that don't support internal LUTs.

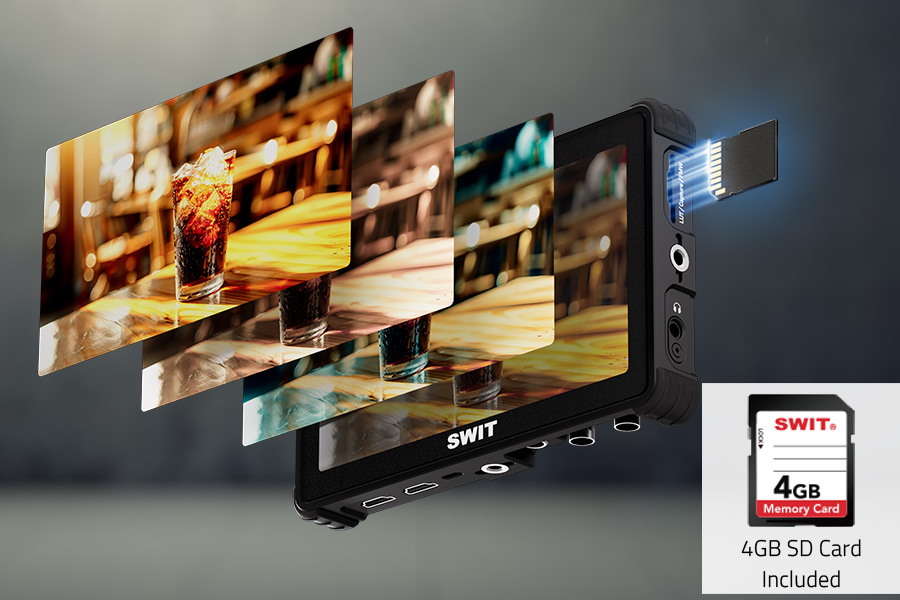

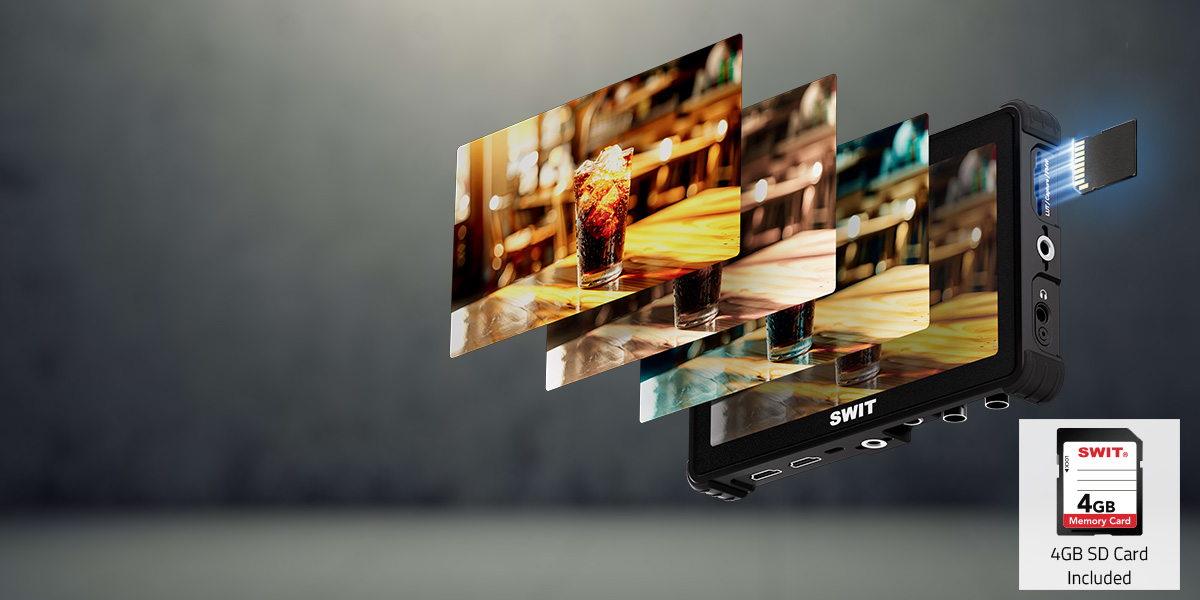

Delog LUTs and User LUTs
The K7 comes preloaded with delog LUTs for
SONY S-Log2/3, Canon C-Log2/3, ARRI
LogC3/C4, RED Log3G10 to Rec.709, allowing
accurate color preview on set. It also supports
User 3DLUTs import via SD card of variety
17/32/33/64/65 formats.
A 4GB SD card is included, so you can upload
your custom LUTs immediately and take full
creative control of your monitoring workflow.
Capture and Overlay
You can capture a still image of the
current frame and overlay it with
adjustable transparency over the live
camera video, which allows you to
perfectly match a camera move,
reposition a subject, or recreate a
previous framing by matching the
semi-transparent reference image
with the live action.

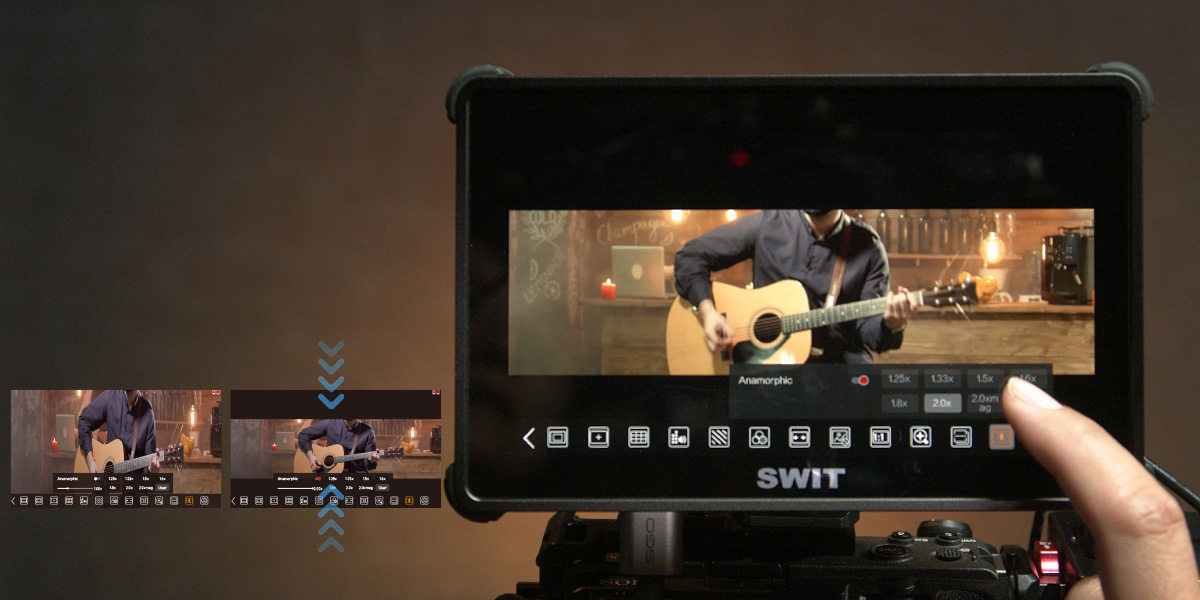

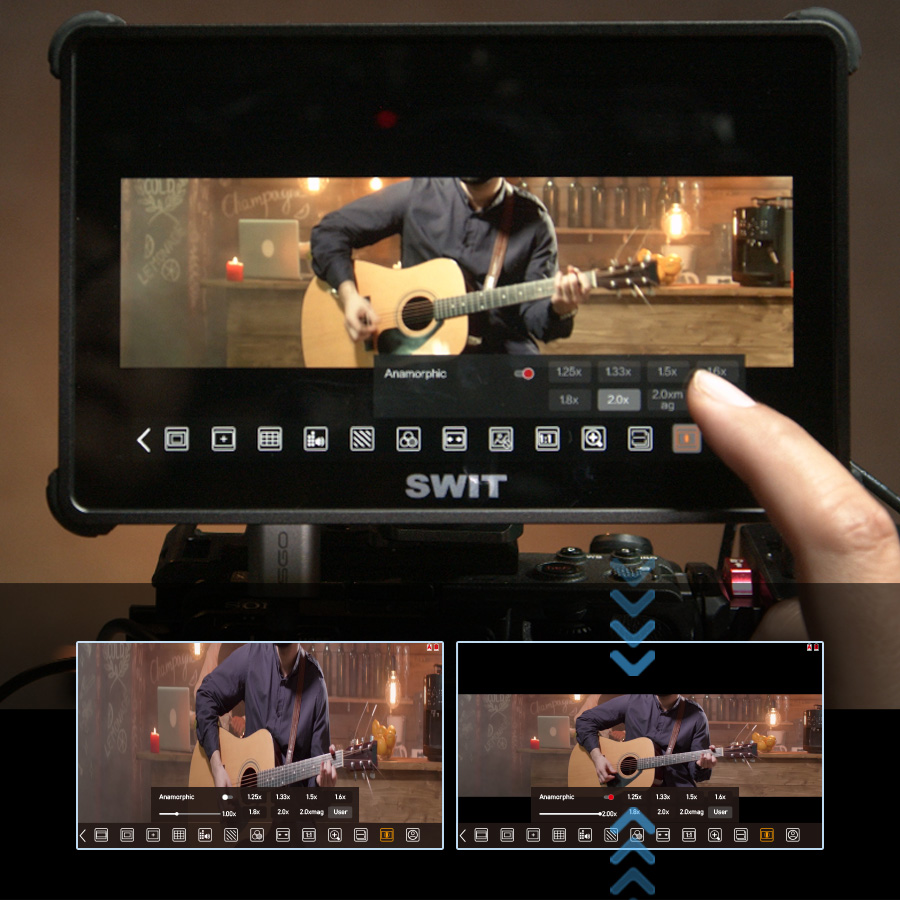

Anamorphic De-squeeze
The K7 supports a full range of anamorphic
de-squeeze ratios, including 1.25x, 1.33x,
1.5x, 1.6x, 1.8x, 2.0x, and 2.0x MAG. Whether
you're shooting with classic 2x anamorphic
lenses or modern lightweight options, the K7
restores the correct aspect ratio on screen.

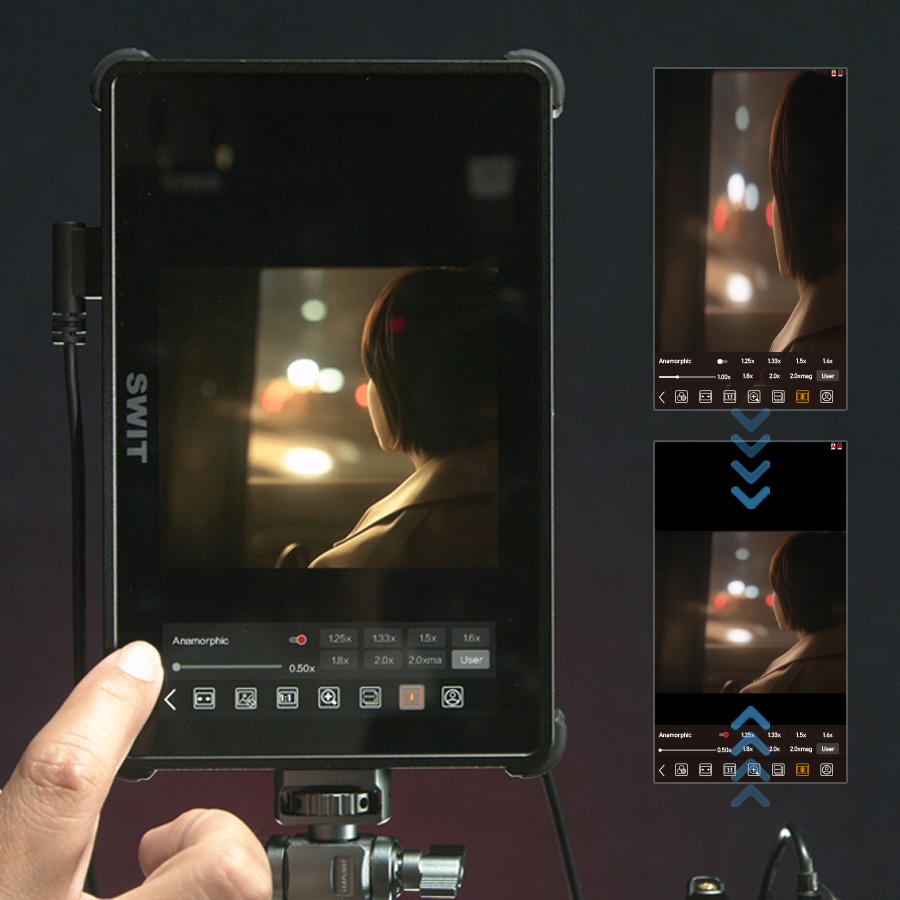

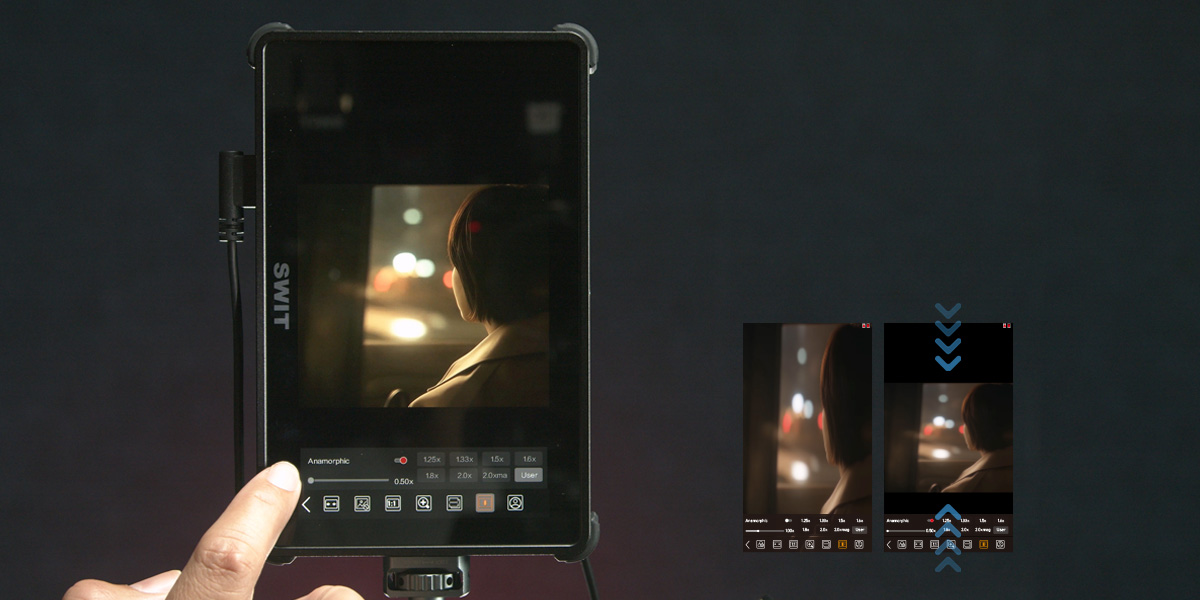

Support 0.5x Reverse De-squeeze
The K7 supports custom anamorphic de-squeeze ratios for
ultimate flexibility (0.5x-2x contineously adjust), along with a 0.5x
reverse de-squeeze mode designed for vertically mounted 2x
anamorphic lenses. This produces an 8:9 near-square frame that
is exceptionally friendly for both landscape and portrait cropping,
perfect for content destined for multiple platforms.

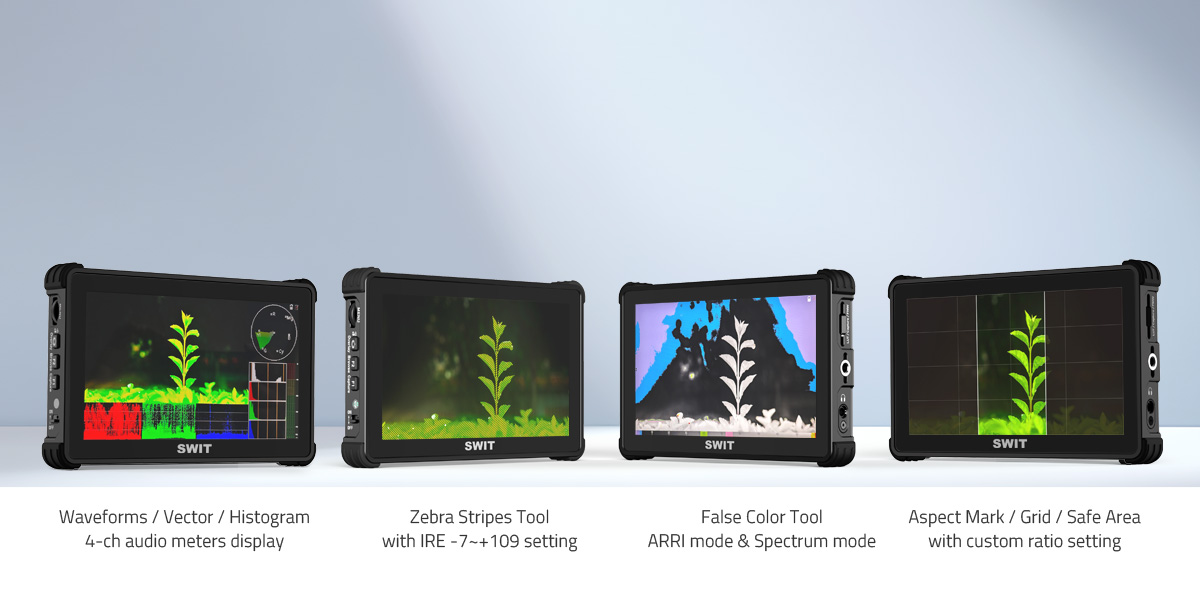

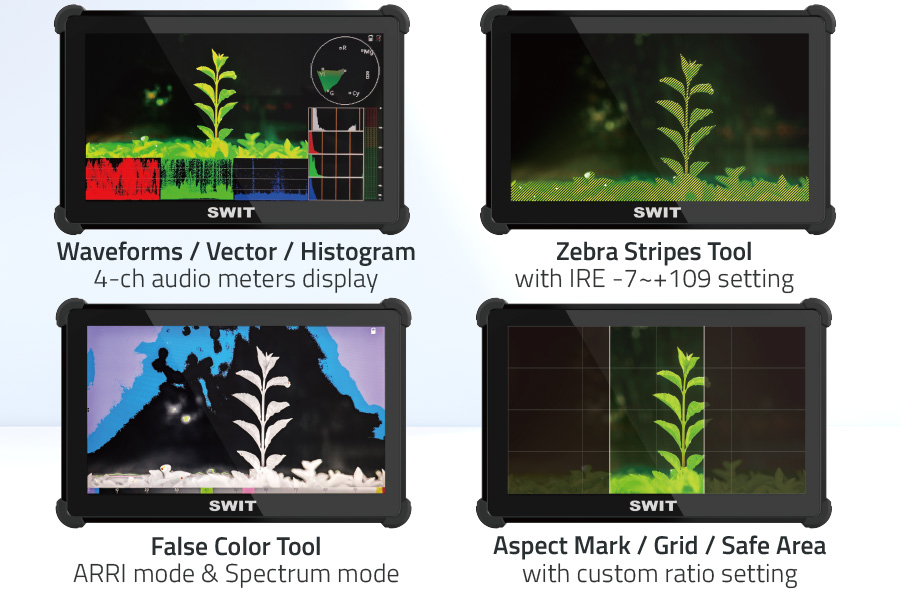

More Practical Camera Tools
The K7 is packed with a rich set of professional tools for composition, focus, and exposure assist. Most tools
support flexible custom parameters, so you can adjust sensitivity and intensity to suit your workflow.

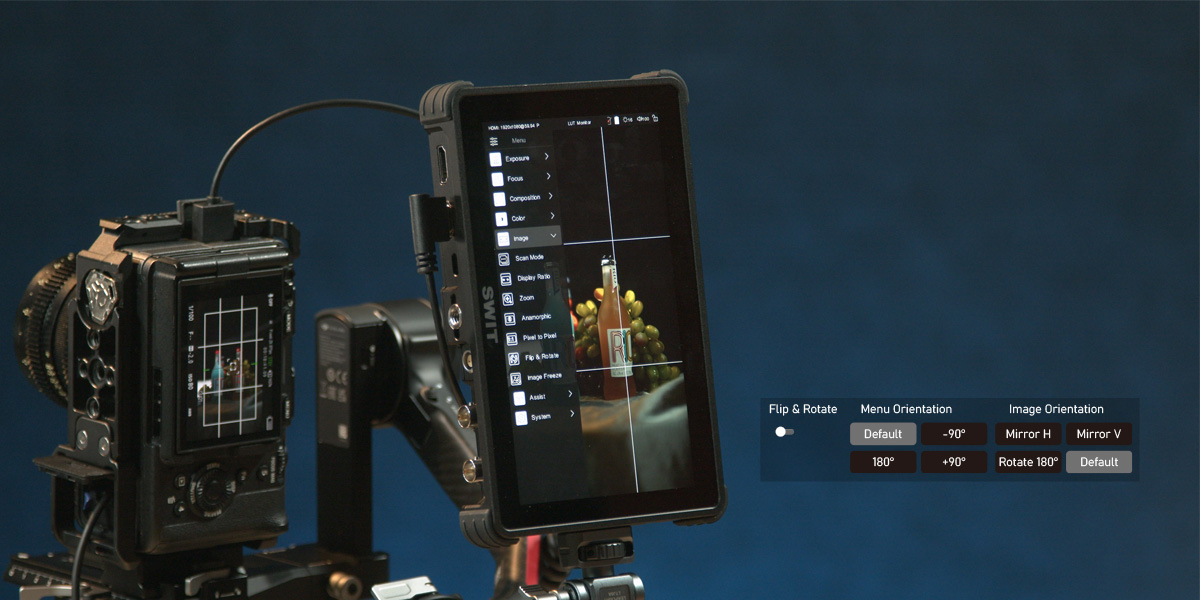

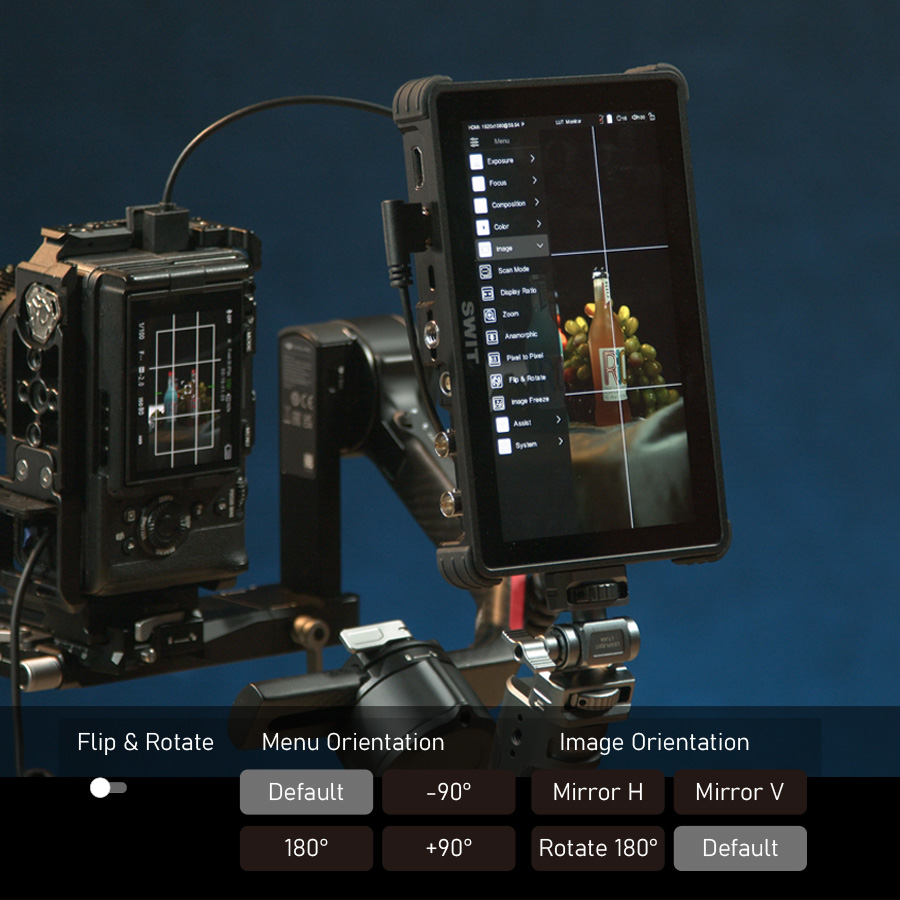

Rotatable OSD Menu
You can adjust the K7 menu orientation to ±90°
rotate or 180° flip. Whether you mount the
monitor vertically for portrait shooting or upside
down in tight rigging setups, the menu always
stays readable and easy to navigate, ensuring
smooth operation in any mounting orientation.

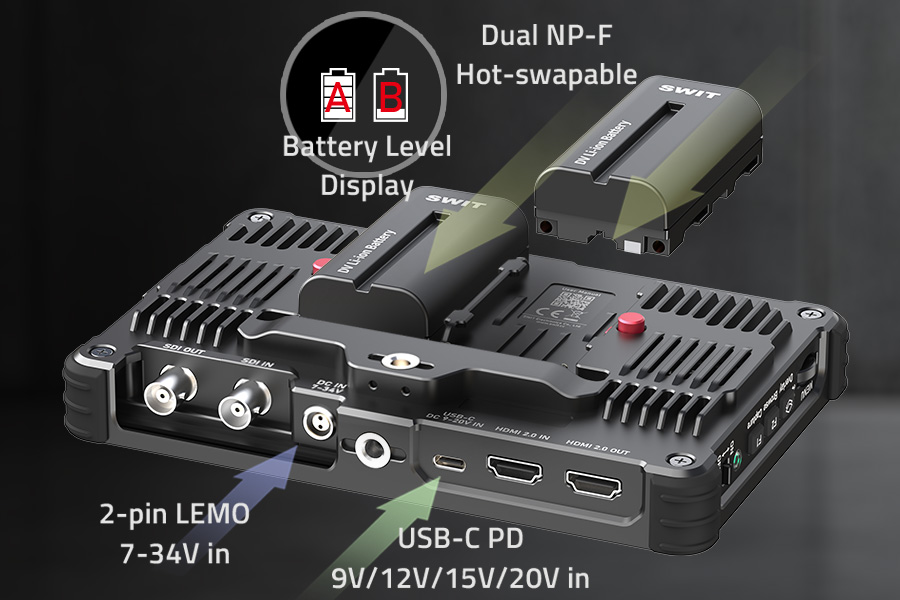

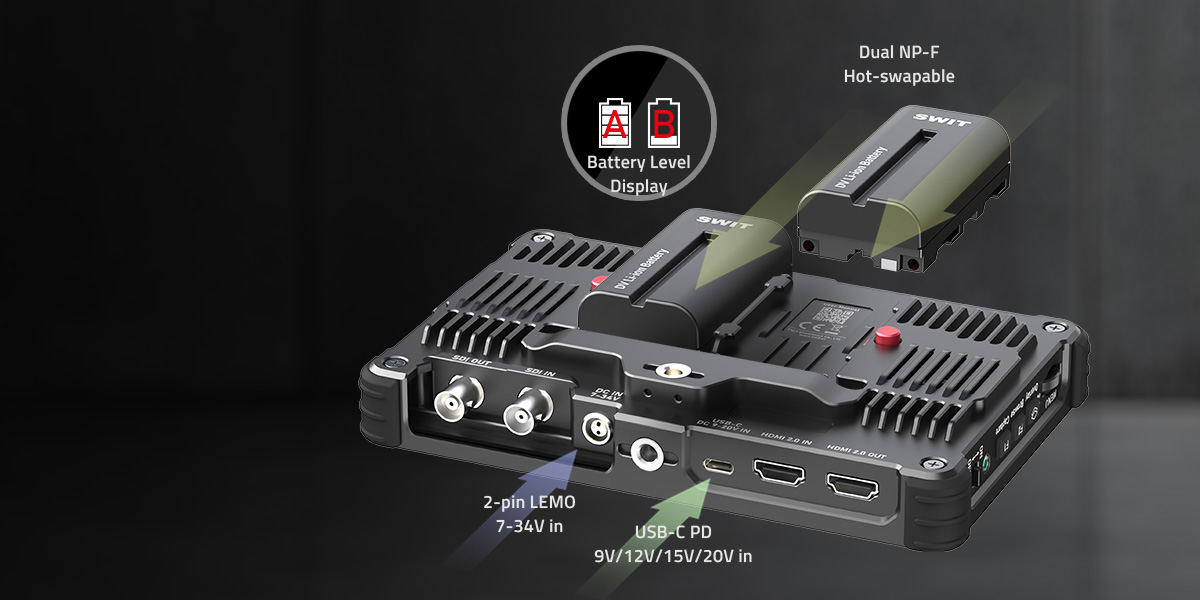

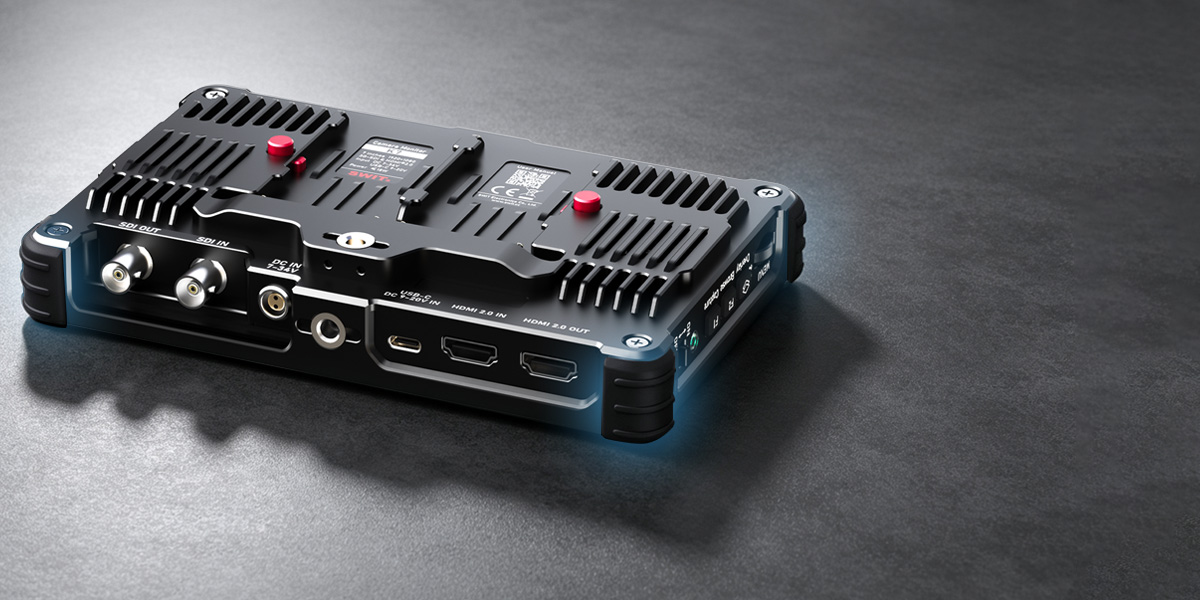

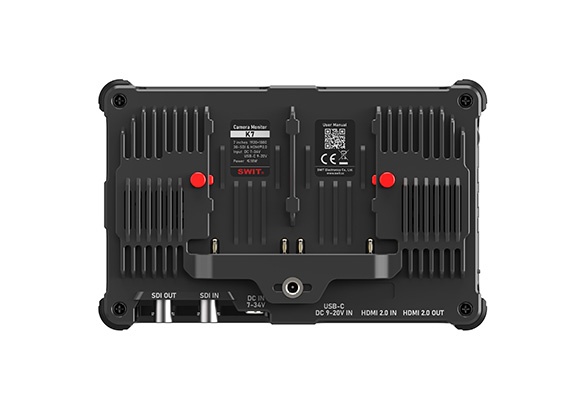

Versatile Power Optionse
2-pin LEMO, USB-C and Dual NP-F
The K7 supports 2-pin LEMO DC input,
USB-C PD (9-20V), and dual built-in NP-F
battery slots with hot-swap capability.
Real-time battery levels for both slots are
displayed on the screen, giving you full
visibility of your power status at all times.

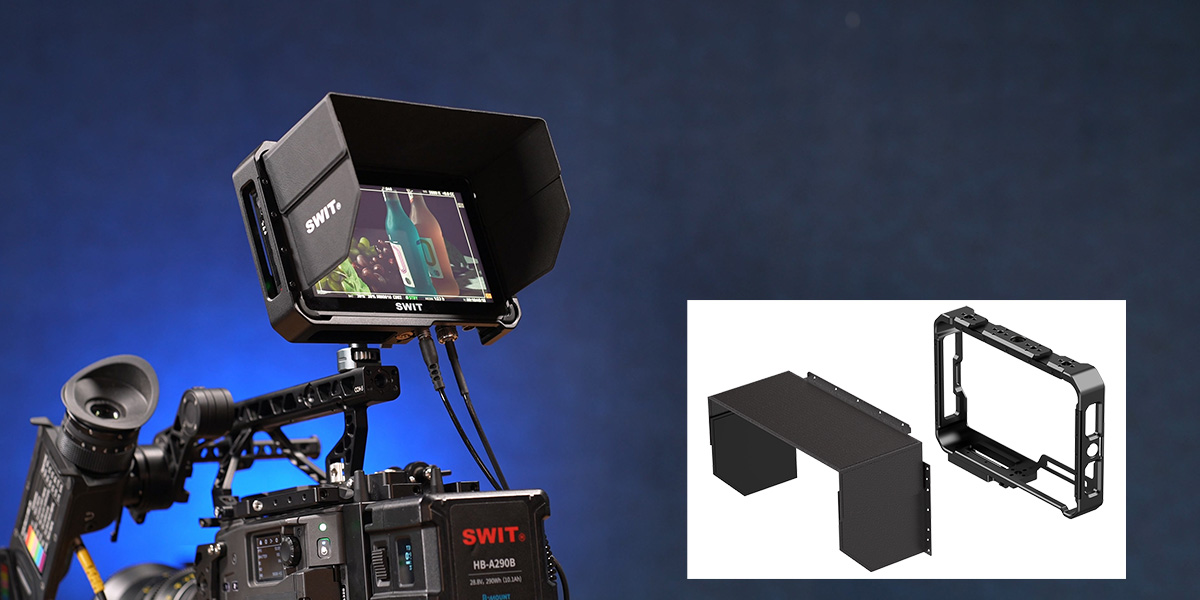

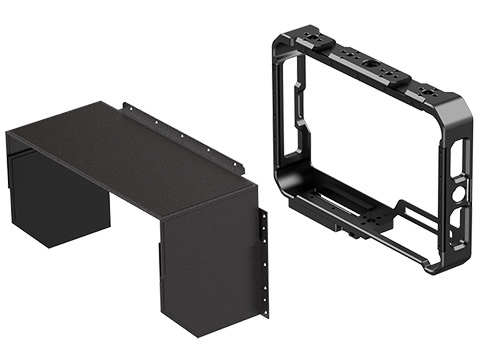

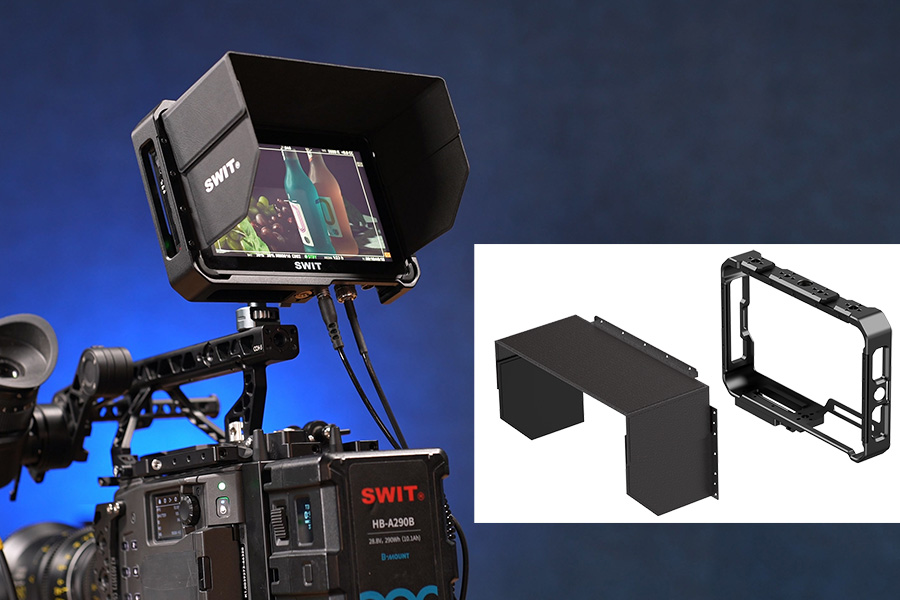

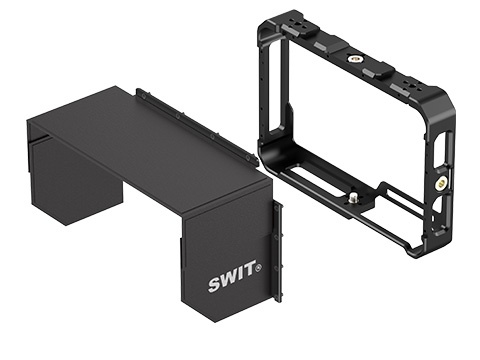

Optional Monitor Cage
The K7 offers an optional CNC high-strength monitor cage
(SKU: MA-K7CAGE) for enhanced protection in demanding
environments. The cage also includes a leather foldable
sunhood for extra glare reduction when needed. Designed
for filmmakers who want maximum durability without
compromising functionality.
Display
Size | 7 inches |
Display area | 154.4×86.8mm |
Resolution | 1920×1080, 16:9 |
Brightness | 2800nits Max |
Contrast | 1000:1 |
Color depth | 8-bit 16.77M colors |
Viewing angle | 160°(H) /160°(V) |
Input
BNC ×1 | 3G/HD-SDI input |
HDMI® type A ×1 | HDMI® 2.0 input |
SD card ×1 | LUT, firmware input |
Output
BNC ×1 | 3G/HD-SDI output |
HDMI® type A ×1 | HDMI® 2.0 output |
3.5mm ×1 | Embedded audio output |
Video Format
SDI | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
HDMI | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 /50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
General
DC Input | 2-pin LEMO 7-34V in |
Battery Power | Dual NP-F slots 6.5-8.4V in, hot-swapable |
Power Consumption | ≤18W |
Working temperature | 0°C～+40°C |
Working humidity | 10%～90% |
Net weight(without packaging) | 0.575kg |
Product dimensions(without packaging) | 187×121×32mm |
Gross weight(with packaging) | 0.9kg |
Package dimensions | 240×180×45mm |

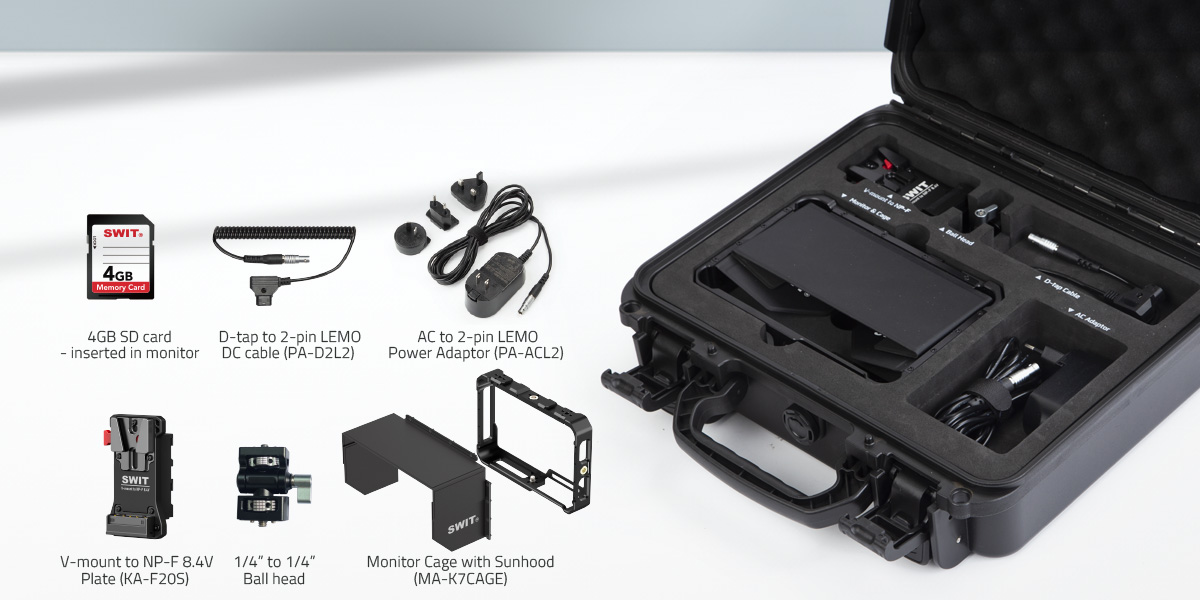

MSRP
MSRP
MSRP
-

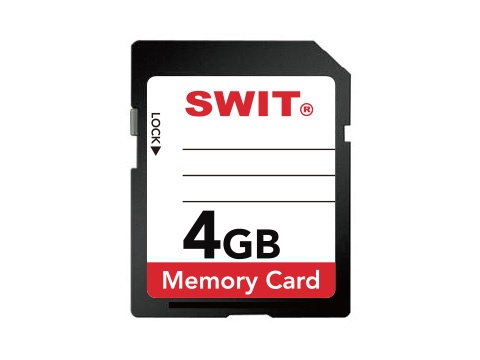

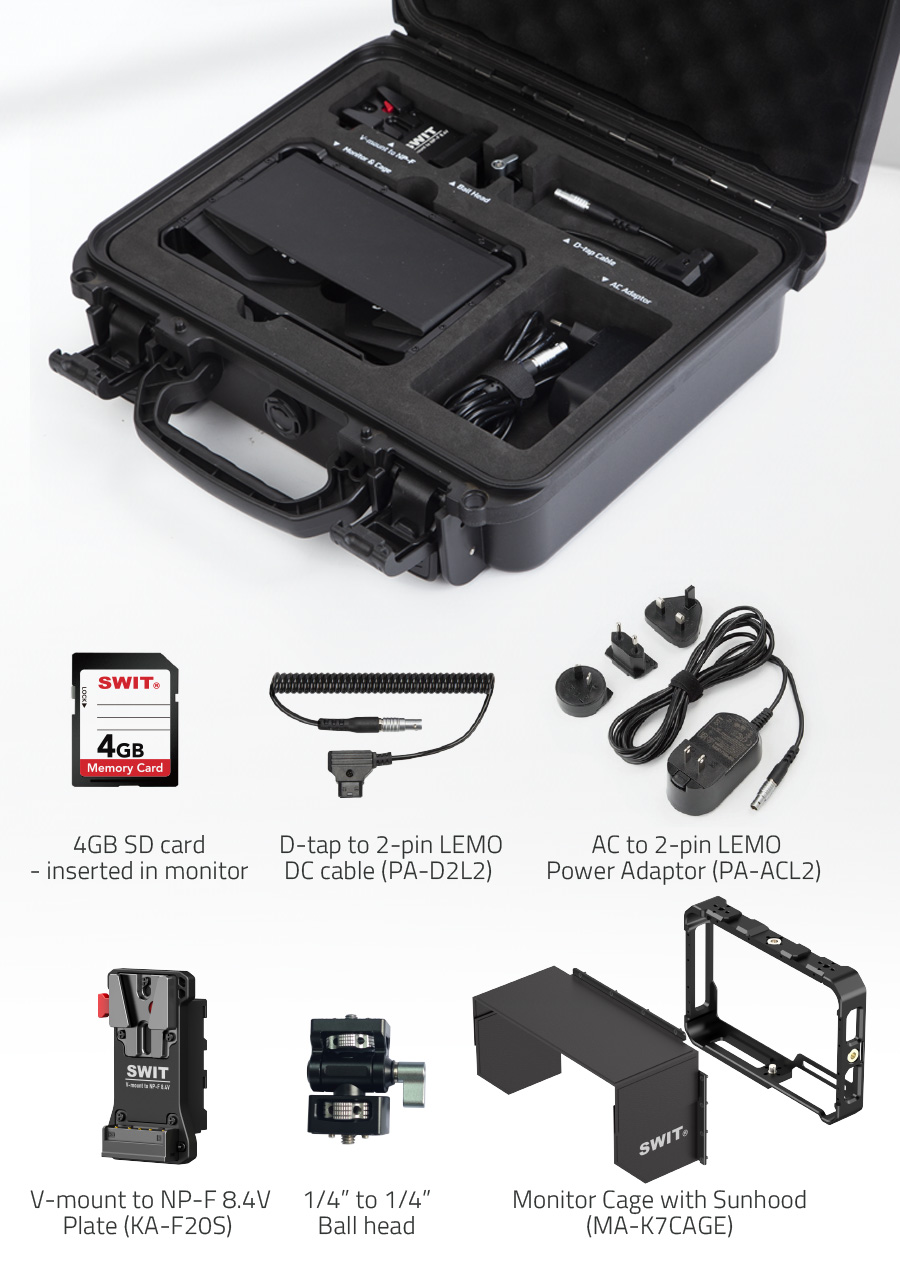

4GB SD card
-
PA-D2L2

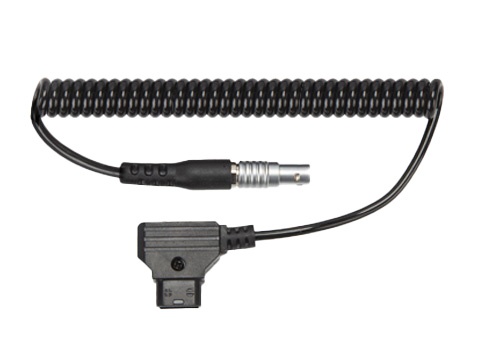

D-tap to 2-pin LEMO power cable -

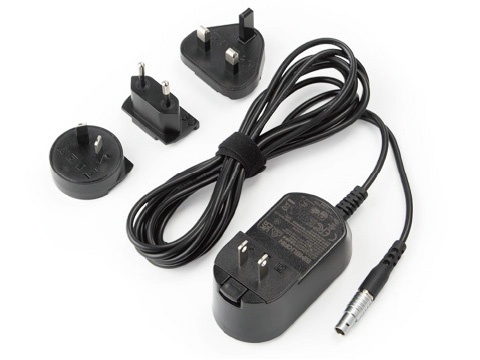

PA-ACL2

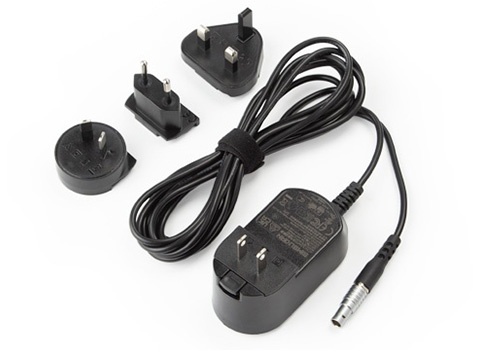

AC 100-240V to LEMO 2-pin DC 12V/2A 24W Power Adaptor, with US/EU/UK/AU switchable plugs -

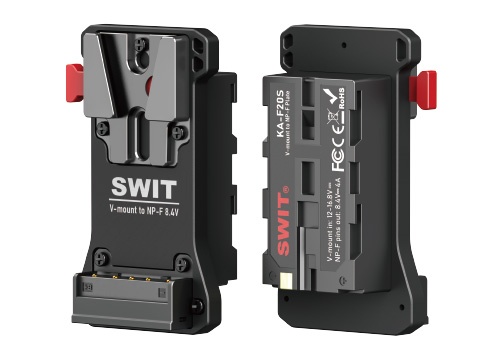

KA-F20S

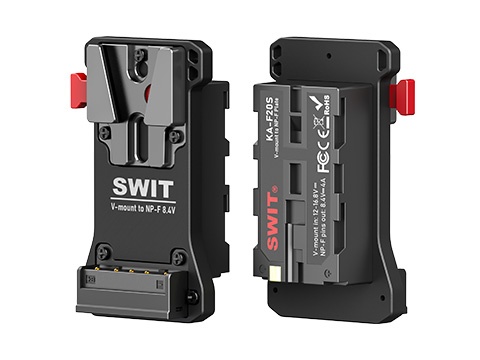

12-16.8V V-mount battery to Regulated 8.4V NP-F conversion plate -
MA-K7CAGE
CNC high-strength monitor cage for enhanced protection, includes a leather foldable sunhood.
-
