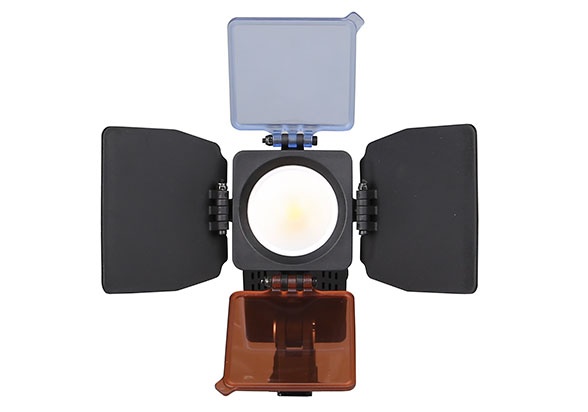

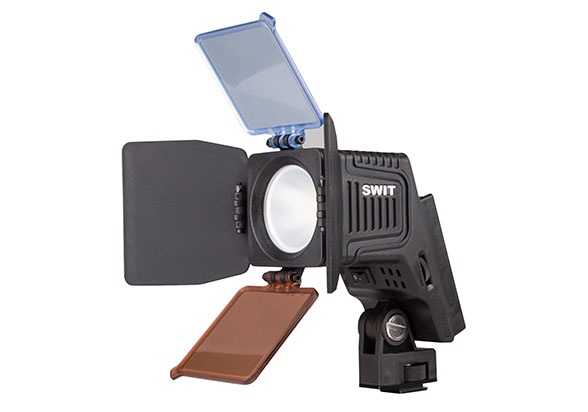

S-2070 COB LED On-camera Light

›  Chip on board COB LED technology

›  13W, 1100Lux @ 1 meter, dimmerable

›  70W equivalent output

›  Single shadow, glareless

›  60° wide beam angle, equally spread

›  Cool touch

›  5000K color temperature

›  5600K and 3200K filter

›  Color rendering index: 85

›  6-17V wide input voltage

›  Interchangeable DV mount and battery

›  Glass Fiber strong and durable housing

›  Screw and cold shoe mount


Features

Chip-on-board LED

Brighter and Non-glaring

The S-2070 on-camera LED light adopts the new generation Chip-on-board LED, which integrates the LEDs into a chip with high brightness output but in smaller size, and the most remarkable, it offers a equally spread, soft, glareless light, similar to the traditional Halogen bulb light.



13W Light Output, 70W Equivalent

1100Lux @1 meter distance and 1 meter scale

S-2070 requires only 13W power consumption but can output bright light equivalents to an 70W halogen bulb. The illuminance is 1100 Lux at 1 meter distance and 1 meter scale.



60° Wider Beam Angle

Equally spread lights, no visible beam edge

The traditional LED lights use lens to converge and get a higher brightness, but dropped down quickly around, which will generate a visible lighting border in the image. In comparison, the COB LED generates a wider beam angle, equally spread from the center to edge, and suitable for HD shooting.

Glareless light, Single Shadow

The traditional LED array always generates several highlight pots on retina and people will feel glaring, even can’t recover sight until a few seconds. In comparison, the SWIT COB LED has only one bulb in appearance, and output a non-glaring, single shadow light, suitable for close interview shooting.

3200K/5000K/5600K Color Temperature

The S-2070 LED has 5000K color temperature and also equipped with a 5600K (Daylight) and a 3200K (Tungsten) color temperature filter. You can switch the color temperature easily.

6-17V Wide Voltage Power Supply

The S-2070 accepts 6-17V wide voltage input, so you can get power from 14.4V V-mount/Gold Mount batteries or 7.2V DV batteries.
The light package goes with a D-tap to pole-tap cable (S-7104), to plug into the DC-IN port of S-2070 and get power from D-tap power output sockets, such as batteries, battery plates, or camera handle. You can also select SWIT pole-tap to pole-tap DC cable (S-7108) to get power from pole-tap DC adaptors.

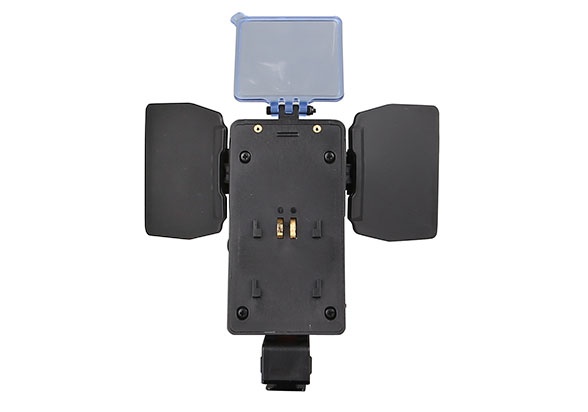

By installing a particular DV battery plate, you can directly mount a 7.2V DV battery onto the rear of the S-2070 light.

Interchangeable DV plates

You can power the S-2070 by most popular DV batteries, via the easy interchangeable DV battery plates. We supply the following DV plates for optional:

S-7004F
SONY NP-F970/770
S-7004U
SONY BP-U60/U30
S-7004D
Panasonic CGA-D54/D28, VW-VBD58, AG-VBR59
S-7004B
Panasonic VW-VBG6
S-7004J
JVC BN-V428U
S-7004V
JVC BN-VF823
S-7004I
SSL-JVC50
S-7004C
Canon BP-945/970G
S-7004E
Canon LP-E6



Power by Special Compact Battery

By optional purchased battery S-8040

If you want a compact battery power solution, you may choose SWIT S-8040 Li-ion battery to instead of the DV plates and DV batteries. The S-8040 is specially used for SWIT S-2041 and S-2070 lights, with 7.2V, 21Wh/3Ah capacity, and can run nearly 1 hour and 40 minutes on S-2070.
The S-8040 has a 4-level power indicators and a pole-tap charging input socket. You can use SWIT portable Pole-tap charger S-3010D to charger S-8040.

Dimmer control

S-2070 has a dimmer controller to adjust the light output from 10%-100%. The color temperature will not change during the dimmer controlling.

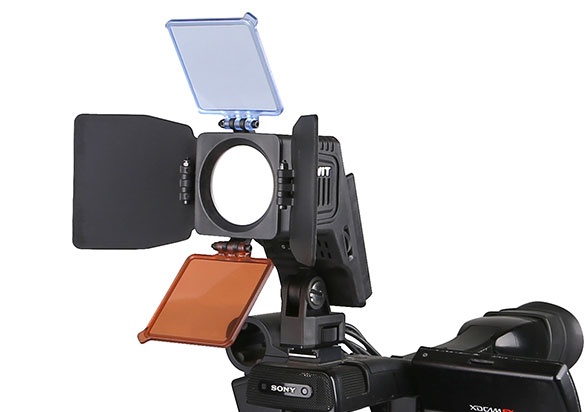

Easy Installation

Both cold-shoe and screw

S-2070 offers a dual purpose installation base, that can be fixed to camera via both cold shoe and 1/4” screw head.

Input voltage

DC 6V-17V

Power consumption

13W

Halogen equivalent

70W

Beam Angle

H60°/ V60°

Color temperature

5000K and 5600K/3200K switchable

Color rendering index

85

Illuminance

1100Lx @ 1m distance and 1m diameter scale

Power connector

DC IN socket, DV mount connection

Working temperature

-10℃~+40℃

Storage temperature

-20℃~+55℃

Dimensions

108×80×133mm

weight

Approx 274g
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

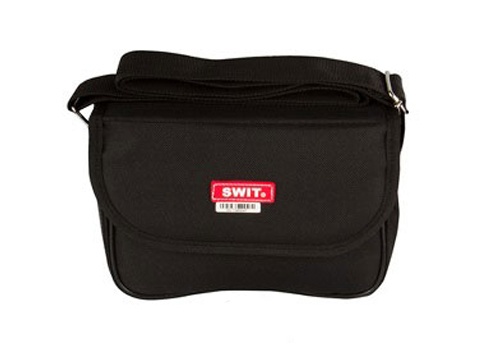

  • Bag

  • S-7004 battery plate (U/F/D/B/C/V/I/E selection)

  • S-7104

    Pluged into D-tap socket and output DC via 5.5mm pole-tap
  • S-7108

    DC cable with both ends of 5.5mm Pole-tap connector

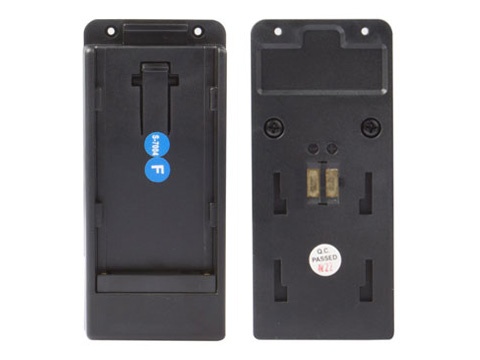

  • S-7004F

    SONY NP-F DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.

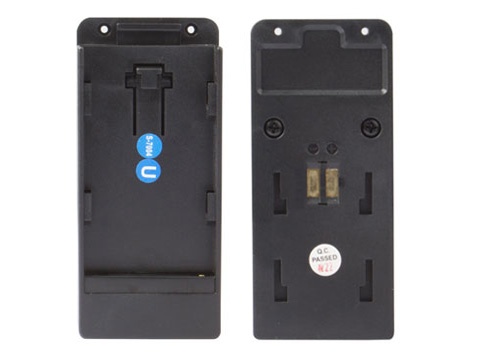

  • S-7004U

    SONY BP-U DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.

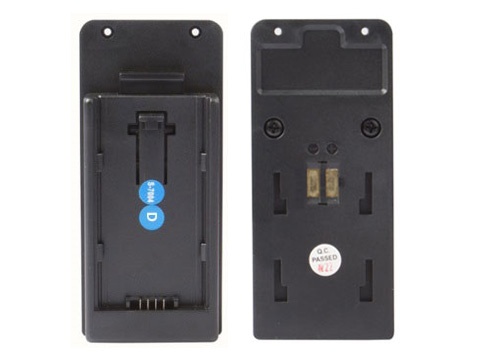

  • S-7004D

    Panasonic CGA/VBD DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.

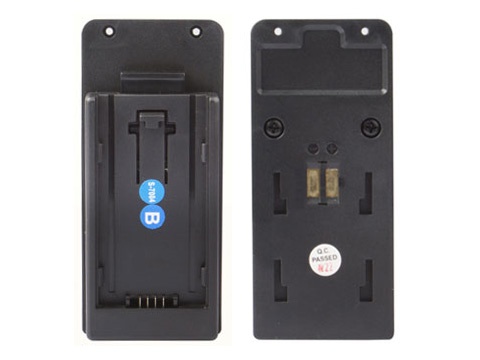

  • S-7004B

    Panasonic VBG DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.

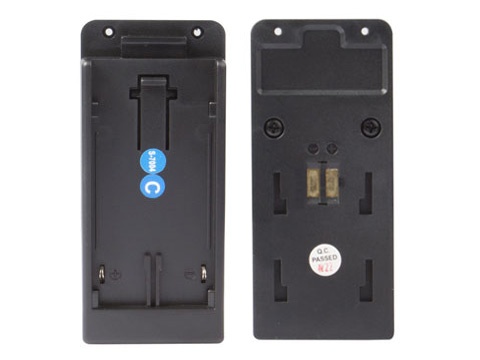

  • S-7004C

    Canon BP DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.

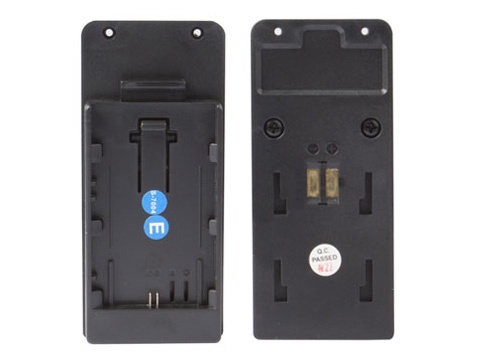

  • S-7004E

    Canon DSLR Battery Mount Plate, Snap-on type installation, quick release and exchangeable.

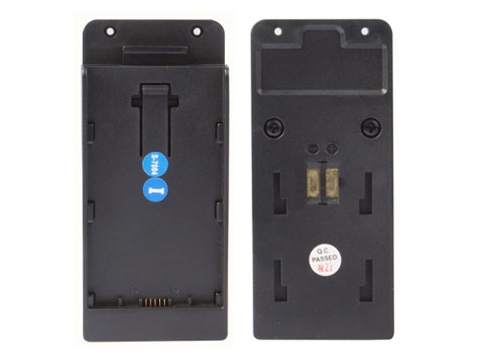

  • S-7004i

    JVC SSL DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.

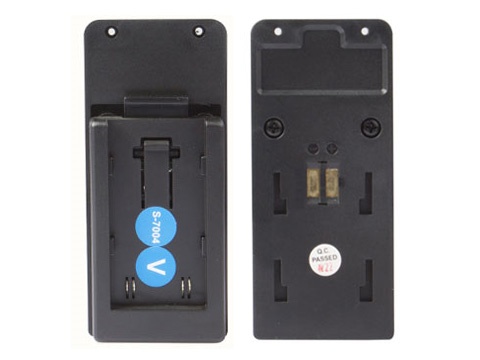

  • S-7004V

    JVC BN-VF DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7000F

    SONY NP-F DV Battery Mount Plate

    Metal back plate and open end wires; for SONY NP-F970/770 battery

    $8222

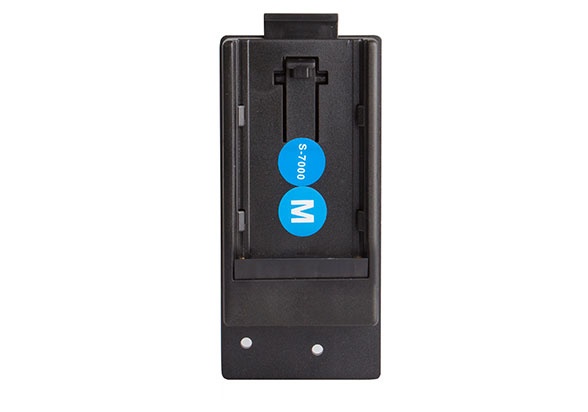

  • S-7000M

    SONY NP-QM DV Battery Mount Plate

    Metal back plate and open end wires; for SWIT S-8M91/8M71, SONY NP-QM91/71 battery

    $8222

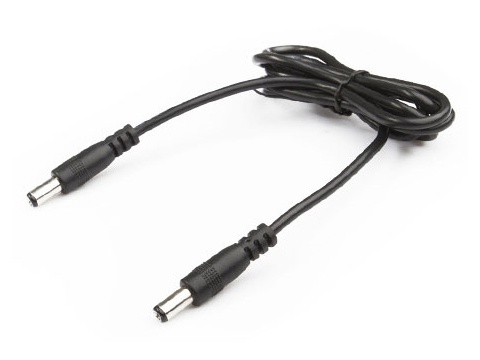

  • S-7108

    Pole-tap to Pole-tap DC Cable

    DC cable with both ends of 5.5mm Pole-tap connector

    $8222

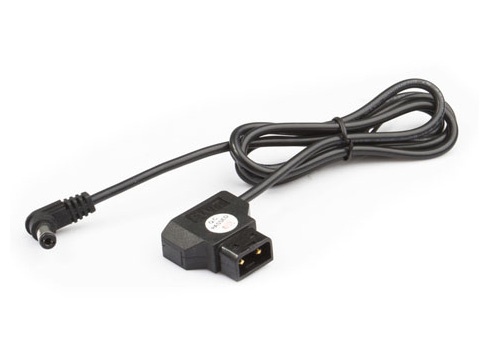

  • S-7104

    D-tap to Pole-tap DC Cable

    Pluged into D-tap socket and output DC via 5.5mm pole-tap

    $8222
