› 480pcs edge mounted SMD-LEDs
› Unique 90° light guide technology
› 90W power, 2200Lux @ 1meter
› 0-100% flick-free dimming
› 70° effective wide beam angle
› 2700K-6500K continuously adjustable
› Super high CRI Ra 98, TLCI 99
› LCD display color, dimmer and battery info
› DC 11-36V wide input voltage
› Power by V-mount / Gold mount battery
› Strong all-metal housing with U-stand
› Provide portable 3-light kit
› Optional 4-leaf barn door and 40° honeycomb
480pcs Edge Mounted LEDs
Super thin, area light, soft and glareless
PL-E90 is specially designed for field portable
lighting applications. 480pcs SMD-LEDs are
mounted in the inner edge of the light frame, and
with SWIT unique 90° light guide technology,
PL-E90 can output bright, soft and equally spread
light, meanwhile, the light body is slim enough and
portable, which is an ideal light source for inter-
view kit and field video productions.
Laser Dots 90° Light Guide
High efficiency and super bright
The traditional edge mounted LED lights are always not so
bright, because half of the light will go to the backside, even
if there’s reflection board, there’s still a lot of light lost.
SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.
2200 Lux @ 1 meter
0-100% flick-free dimming
PL-E90 outputs 90W power, feeds 2200Lux luminance at 1 meter distance
(center), much brighter than other similar size LED panels. The effective beam
angle reaches 70°, bounded by 50% decline. PL-E90 also supports 0 to 100%
PWM digital dimming, smoothly and non-flickering.
2700K-6500K continuously adjustable
PL-E90 alternated with 2700K and 6500K LEDs, and the output color temperature can be continuously adjustable between
2700K and 6500K.
High Color Render Index
CRI Ra 98; TLCI 99
CRI (Color Rendering Index) is a measure of the ability of a
light source to reveal the colors of various objects faithfully in
comparison with a natural light source. And TLCI (Television
Lighting Consistency Index) is special for the color reveal
ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while PL-E90
offers the super high CRI at 98 and TLCI at 99, and will not
lost the object original colors.
LCD Screen Display
Dimmer / color / DMX channel, battery info
The rear LCD screen can display the current dimmer
percentage, color temperature value, DMX channel and
CH channel, and remaining battery indications.
Quick Adjust Mode
By pressing the adjusting knob
PL-E90 supports quick adjusting brightness and color temperature:
Press the Dimmer knob, it will switch from 1% stepping to 10%
stepping, to quick adjust brightness;
Press Color temperature knob, it will switch from 50K stepping to the following commonly used color temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.
11-36V Wide Input Voltage
By V-mount/Gold mount battery or 4-pin XLR
PL-E90 supports 11-36V wide range voltage input, with 4-pin
XLR DC socket, and equipped with V-mount or Gold mount plate
to power by batteries.
(The default battery plate is V-mount.)
Barn Door / Honeycomb
Optional purchase, Easy to assemble
PL-E90 has all-metal housing, and provides the 4-leaf metal barn door and 40° metal honeycomb accessories, easy to assemble.
Barn door (Model # LA-HE90) and Honeycomb (Model # LA-GE90) are optional purchased.
480pcs SMD LEDs
2200Lux @ 1m
Single Light Package
3-Light Kit Package

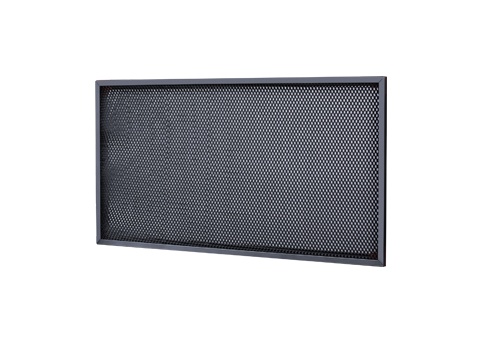

LA-GE90Honeycomb 40°, metal, Directly attached to the front frame of the light Light weight and easy to remove
LA-HE904-leaf metal barn door kit, mounted to the light by 4 screws.
