S-2120D 70W DIP-LED Daylight Panel LED Light

›  1024pcs of ultra bright LEDs

›  50,000hrs long lifetime

›  70W, Max 5100Lux @ 1m distance

›  60° beam angle

›  10%-100% flick-free dimming

›  5600K daylight output, 3200K output with filter

›  LCD touch screen, display and adjust brightness dimming

›  Power by V/Gold mount battery or AC-DC adaptor

›  U-shape support and lighting tripod mount

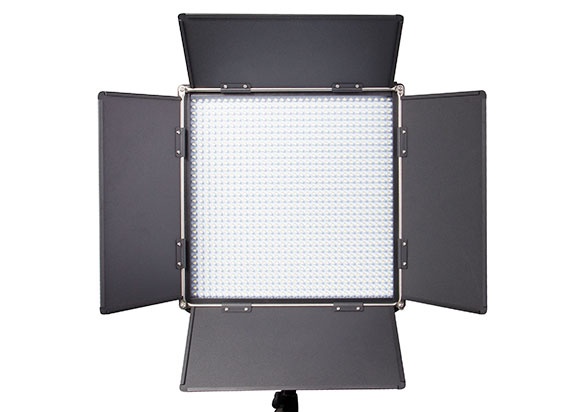

1024 LEDs Panel Light

S-2120D is a portable studio light, adopts 1024 advanced LEDs of 5600K color temperature, which can last in excess of 50,000 hours and requires no spare filament bulbs.


Strong but Light weight Housing

Adopted high intensity thermoplastic ABS plastic housing, only 2.7kg weight and effectively maximized heat dissipation.
The metal barn doors are strong enough to protect LED bulbs.


5100 Lux @ 1 meter

S-2120D feeds 5100 Lux illuminance at 1 meter distance, while consumes less than 70W power.

5600K color temperature

Change to 3200K by filter

S-2120D provides constant 5600K color temperature by the LED itself, and can be changed to 3200K by inserting a color temperature filter.

Touch screen display and control

Dimmer control

The rear LCD touch screen can display the current dimmer value in percentage, and you can press the up/down arrows on the screen to adjust the lighting output.
You can also directly revolve the knob to adjust the illuminance. The light output is non-flick during dimming.

DC 11-17V Power Supply

By V/Gold mount battery or AC-DC adaptor

The S-2120D is equipped with a V-mount camera battery plate on the rear panel. (Gold mount plate optional)
It also provides a 4-pin XLR DC input socket, to power the light by the AC-DC adaptor.

Lighting Tripod Mount

S-2120D has a U-shape bracket, rotatable, and can be fixed on lighting tripod steadily.


1024PCS of ultra bright  LEDs



Beam angle


Color Temperature

5600K, or 3200K by filter



Working voltage

DC 11-17V, 4-pin XLR socket

External power

V-mount plate




Net 2.7kg; With package 5.1kg
Basic Package

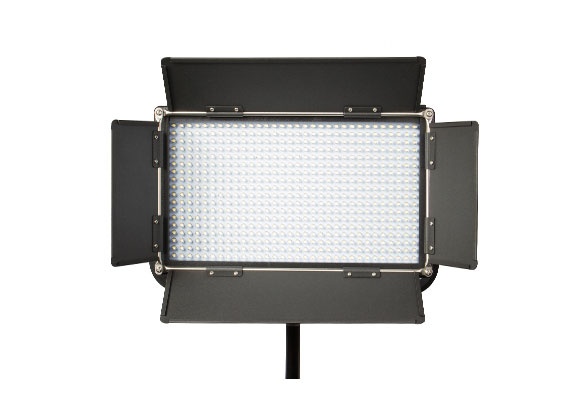

  • S-2110DA

    576-LED Daylight Panel LED Light

    40W, 3200Lux LED, 5600K with 3200K filter, dimmerable, AC-DC adaptor power or Gold mount battery power

  • S-2110CA

    576-LED Bi-Color Panel LED Light

    40W, 3200K-5600K continuous adjustable, dimmerable, AC-DC adaptor power or Gold mount battery power

  • S-2120CA

    1024-LED Bi-Color Panel LED Light

    70W, 3200K-5600K continuous adjustable, dimmerable, AC-DC adaptor power or Gold mount battery power

  • S-2120C

    70W DIP-LED Bi-Color Panel LED Light

    1024pcs LEDs, 3200K-5600K continuous adjustable, dimmerable, AC-DC adaptor power or V/Gold mount battery power
