23.8-inch Full HD LCD

IPS LCD panel, LED backlight

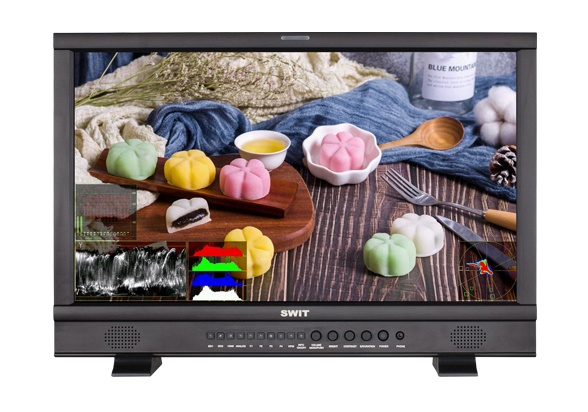

S-1243F adopts a 23.8 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight, 1000:1 contrast for accurate color repro- duction. The viewing angle is Horizontal: 178° / Vertical: 178°.

Multi-format Input/Output

S-1243F supports：
2K/3G/HD/SD-SDI input×2
2K/3G/HD/SD-SDI loop ×2
HDMI® input ×1
HDMI® loop×1
YUV input ×1
VGA input ×1
CVBS input ×1
CVBS loop ×1
RS485 UMD input×1
RS485 UMD output×1
RS232C UMD input ×1
RS485 GPI input ×1
L/R analog audio input×1

Video Analysis Assistant Pattern

Waveform / Vector scope / Histogram

S-1243F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

Embedded audio monitoring

Up to 16-ch meters with alert and select output

S-1243F supports SDI-16ch and HDMI®-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from Up/Down/Left/Right, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display

TSL 3.1/4.0 Protocol

S-1243F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD inputs via RS485 or RS232C port and outputs via RS485 port.

Peaking, R/G/B/Mono only, Zebra, False color

Timecode, H/V delay, AFD, Scale Markers

3DLUT Color Calibration

Built-in De-Log LUTs and User LUT upload

Support 17x17x17 3DLUT accurate color calibration. Use professional color analyzer (KONICA MINOLTA CA310 e.g.) and 3DLUT calibration software (SpectralCal CalMAN5 e.g.) to measure and generate 3DLUT cube file to upload to the monitor by USB stick.
The monitor also has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm.
You can import own 3DLUTs to monitor by USB stick.

USB Firmware Upgrade

S-1243F provides a standard USB port for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1243F monitor to upgrade, without PC connection.

Multiple Power Sources

AC adaptor / V-mount / Gold mount

S-1243F provides a 4-pin XLR socket of DC 11-17V power input, and V-mount or Gold mount plate for outdoor using.

3-color TALLY Light

RS485 input signal

There are three colors for the Tally light: Red, Green and Yellow. Users can define the pins of RS485 port to control the TALLY lights.
