S-4600 SDI to HDMI Converter

› Portable 3G/HD/SD-SDI to HDMI Converter

› 1 SDI input, 1 HDMI output, and 1 SDI loop output

› SDI audio output via 3.5mm socket

› Embed SDI audio to HDMI output

› Power/input/output status indicator

› Pole-tap 6-18V DC power input

› Heavy duty aluminium housing

› Bottom screw threads for installing


Features

Portable Mini Converter

SDI to HDMI

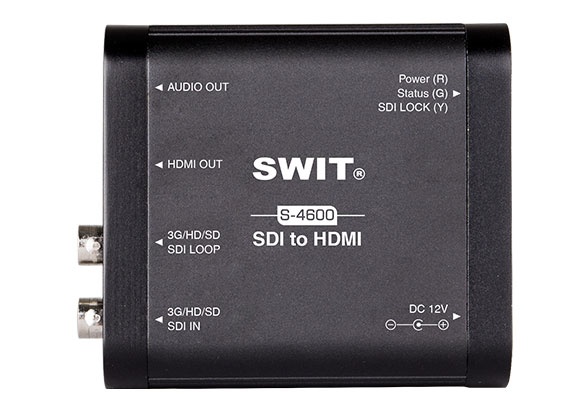

S-4600 is a mini converter for SDI to HDMI conversion, widely used on HDMI televisions, LED screens, projectors to display up to 3Gb/s broadcast SDI videos.

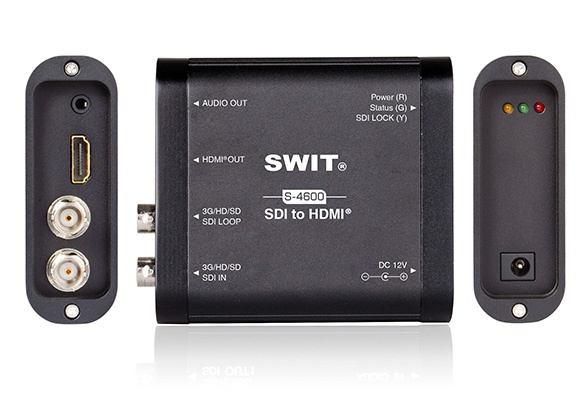

Input & Output

S-4600 offers:
1× 3G/HD/SD-SDI input
1× 3G/HD/SD-SDI loop output (Reclocked)
1× HDMI Type-A output
1× 3.5mm audio output
(The SDI to HDMI supports the same format conversion only.)

SDI Embedded Audio Converting and Monitoring

The SDI embedded audio ch-1 & ch-2 can be converted into HDMI and output via 3.5mm headphone socket, and support 48kHz sample rate.

Status Indicators

Power / Input / Output

S-4600 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.

Power Supply

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing

The S-4600 mini converter adopts uni- body aluminium alloy housing, strong for field using and protects the BNC connec- tors effectively.

Installation

S-4600 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate A-IP00 is supplied in the package, for fixing on wall and binding the BNC/HDMI cables.

Input

BNC ×1

3G/HD/SD-SDI input

Output

BNC ×1

3G/HD/SD-SDI loop output

HDMI ×1

Converted HDMI output

3.5mm ×1

SDI audio output

Video Format

SDI

1080p (60 / 59.94 / 50)

1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

HDMI

1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
480i / 576i

Audio

48KHz Sync

General

Power

≤3W

Working Voltage

DC 6-18V

Working Environment

Temperature: 0°C-+70°C, Humidity:10%-90%

Dimensions

98×84×29 mm

Net weight

200g
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

  • Installation plate

  • AC-DC Adaptor
