› Portable 3G/HD/SD-SDI 1 to 4 distributor
› 1 SDI input, 4 SDI output
› SDI re-clocking and amplifier
› Power/input/output status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing
Portable Mini Converter
SDI 1 to 4 distributor

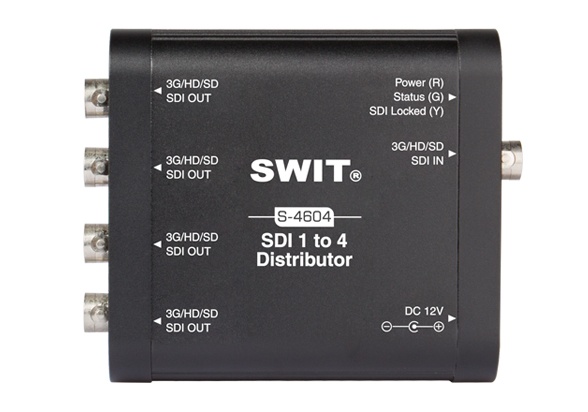

S-4604 is a mini converter for
distributing 1 SDI input to 4 SDI
output, supports up to 3Gb/s SDI,
with all embedded information,
widely used on broadcast projects.
Input and Output
S-4604 offers:
1× 3G/HD/SD-SDI input
4× 3G/HD/SD-SDI output (Reclocked)
SDI Amplifier
The S-4604 features low SDI jitter and SDI re-clocking, so
that you can use several S-4604 to prolong the SDI
transmission distance.
Status Indicators
Power / Input / Output
S-4604 provides 3 LED indictors, to check if the power is
connected, and if the input/output signal is delivered.
Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an
AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4604 mini converter adopts
unibody aluminium alloy housing, strong
for field using and protects the BNC
connectors effectively.
Installation
S-4604 provides the bottom 1/4-inch screw threads for fixing on cameras, and
an installing plate is supplied in the package, for fixing on wall and bind-
ing the BNC cables.
Input
BNC×1 | 3G/HD/SD-SDI input |
Output
BNC ×4 | 3G/HD/SD-SDI output |
Video Format
SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
Audio | 48KHz Sync |
General
Power | ≤2W |
Working Voltage | DC 6-18V |
Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
Dimensions | 105×84×29 mm |
Net weight | Net 240g; With package 0.55kg |
