› Cine style V-mount battery
› 14.4V / 28.8V Bi-voltage auto switch
› Voltage switch by Magnetic Sticker
› Compatible with any 3rd party V-mount
› Support any standard V-mount Charger
› 290Wh large capacity, -20°C Power up
› 250W constant high load, 335W peak
› 2×D-tap 11-16.8V output & charging input
› OLED remaining run time display
› Rear LED torch for dark environment
› Strong housing 1.2m drop-off proof
› BMS multiple circuit protections

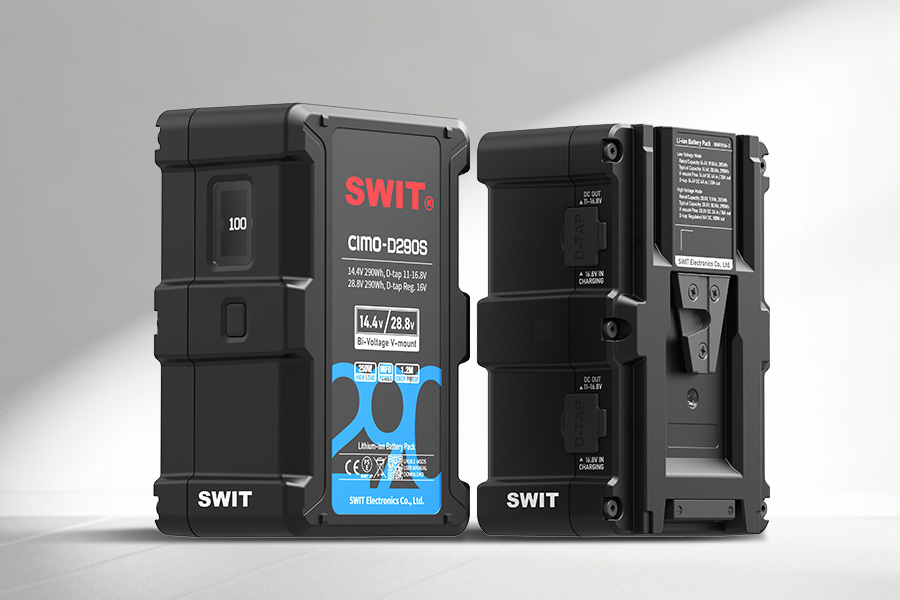

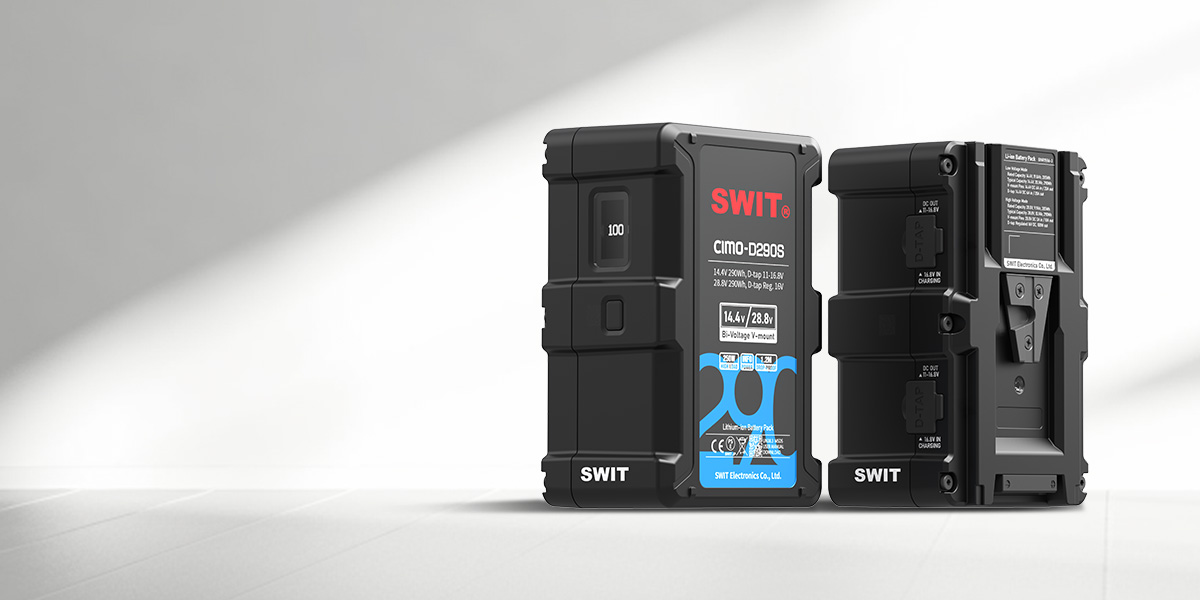

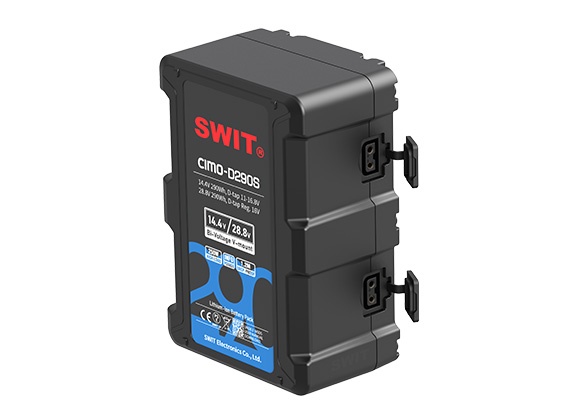

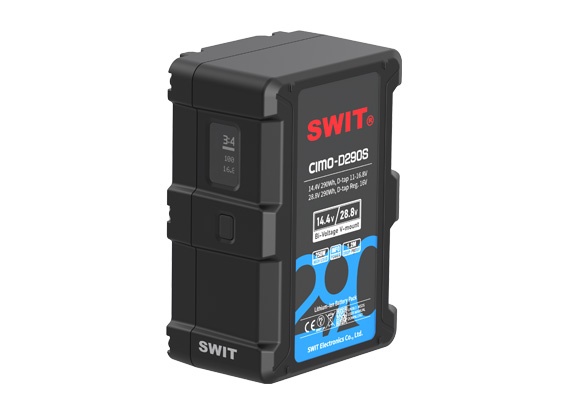

14.4V & 28.8V Bi-voltage V-mount Battery
CIMO-D290S is an intelligent Bi-voltage V-mount battery can switch from 14.4V to 28.8V by contacting a Magnetic Sticker.

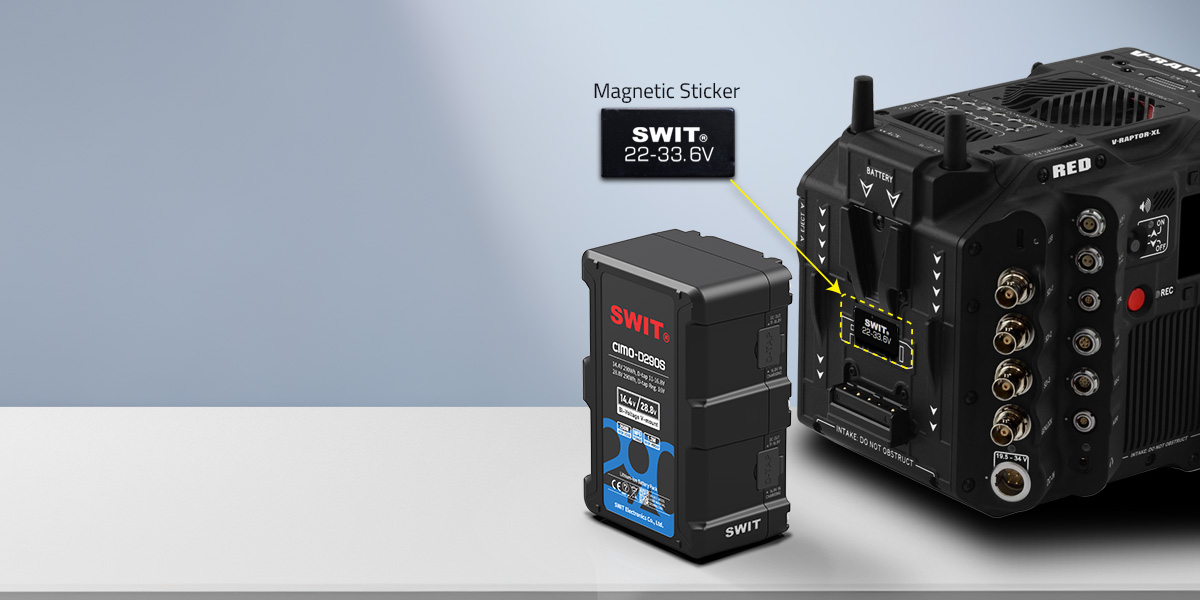

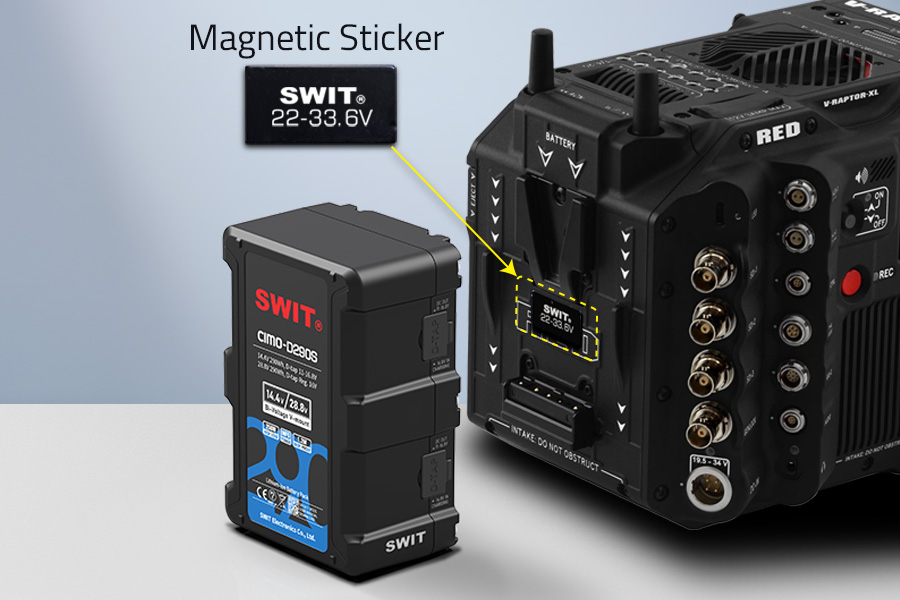

For cameras that require 28.8V high-voltage power supply, like RED V-Raptor XL, ARRI ALEXA LF/65, or BMD URSA CINE, simply put the Magnetic Sticker on the specific position of the V-mount plate. When the CIMO-D290S battery is attached, it will automatically supply 28.8V (22-33.6V) power. This effectively prevents safety hazards caused by improper voltage usage.

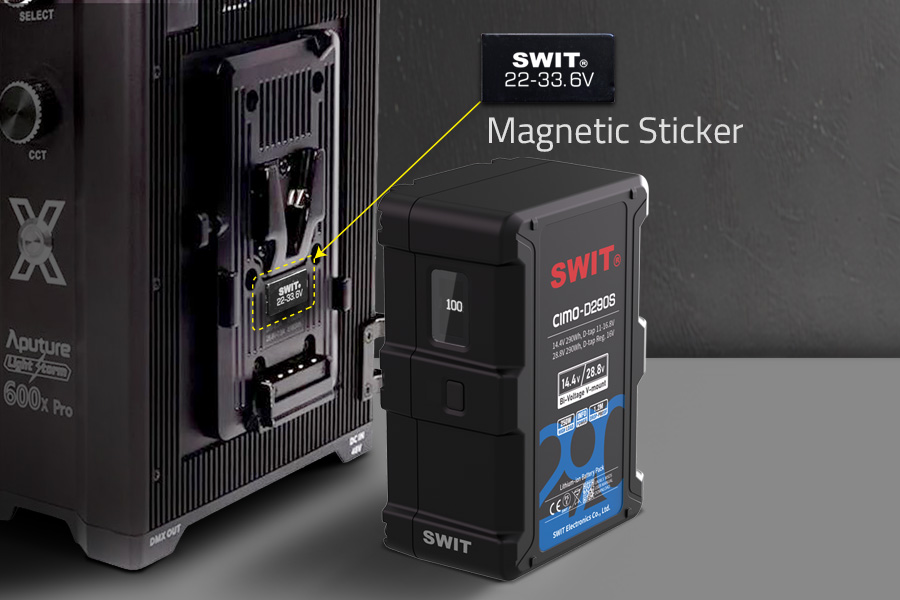

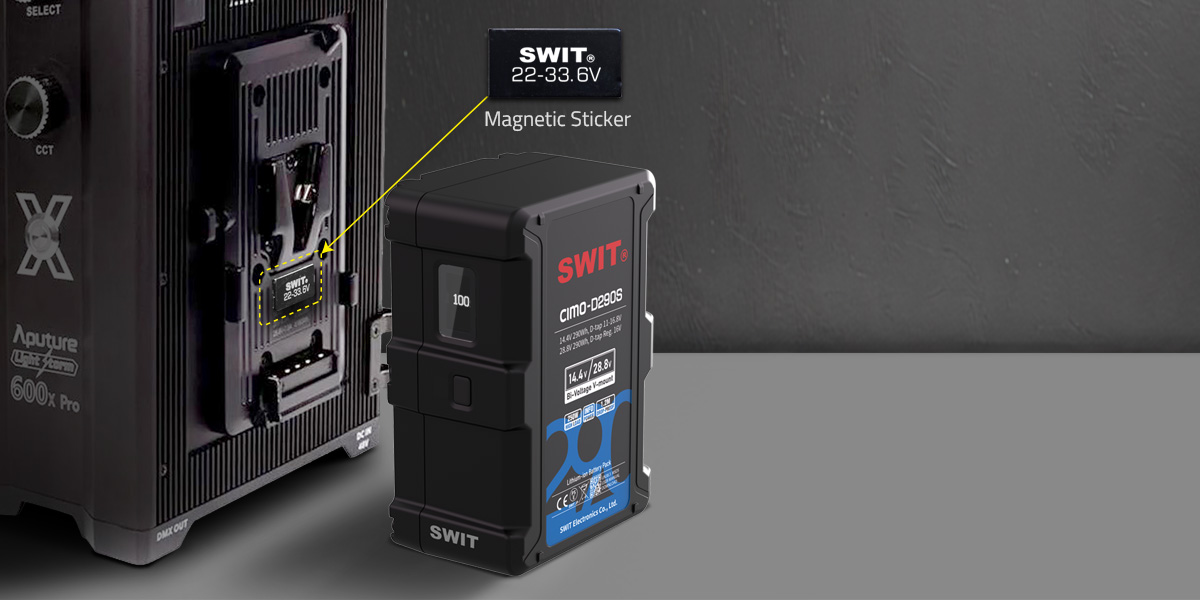

Magnetic Sticker on Any 3rd Party V-mount Plate
You can put the Magnetic Sticker on any V-mount devices that require 28.8V (22-33.6V) voltage like the high power lightings, to switch 28.8V output of CIMO-D290S battery.
When the battery is separated from the Magnetic Sticker, it automatically reverts to the standard voltage mode of 14.4V (11-16.8V). This makes it suitable for use with other regular V-mount devices or standard V-mount chargers, ensuring safe and reliable operation.
290Wh Large Capacity
CIMO-D290S consists of 24pcs ternary lithium cells, 290Wh large capacity.
The ternary lithium cells provide higher energy density, achieve higher capacity with a smaller size, and excellent low-temperature performance, capable of supplying power under -20°C cold environment.

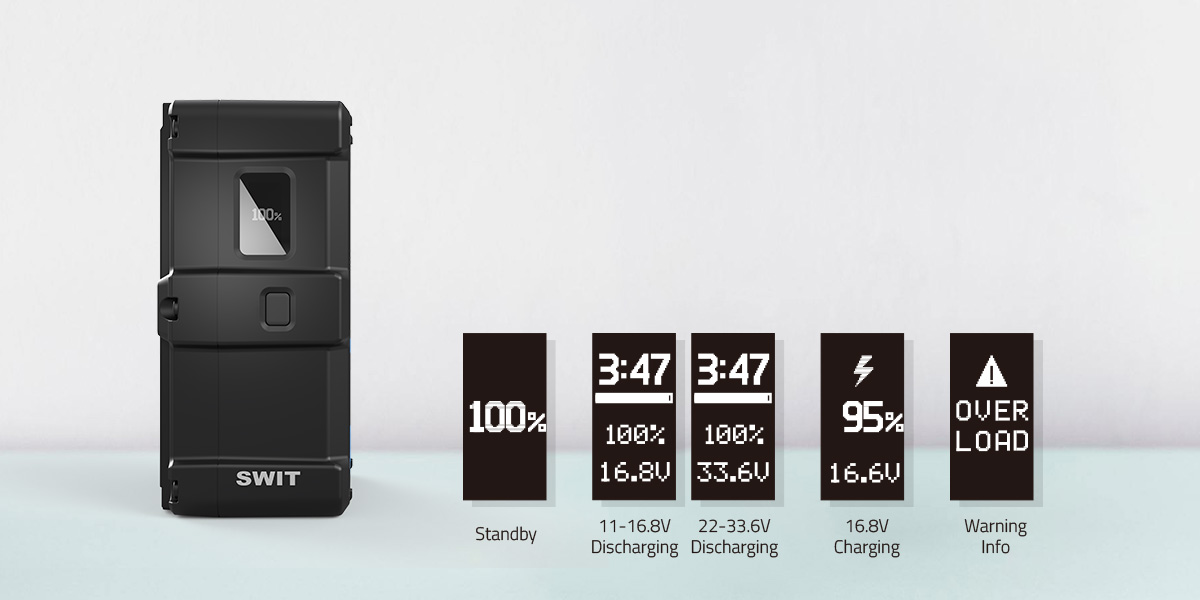

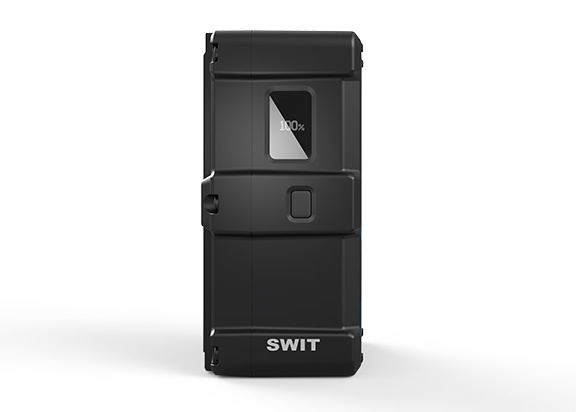

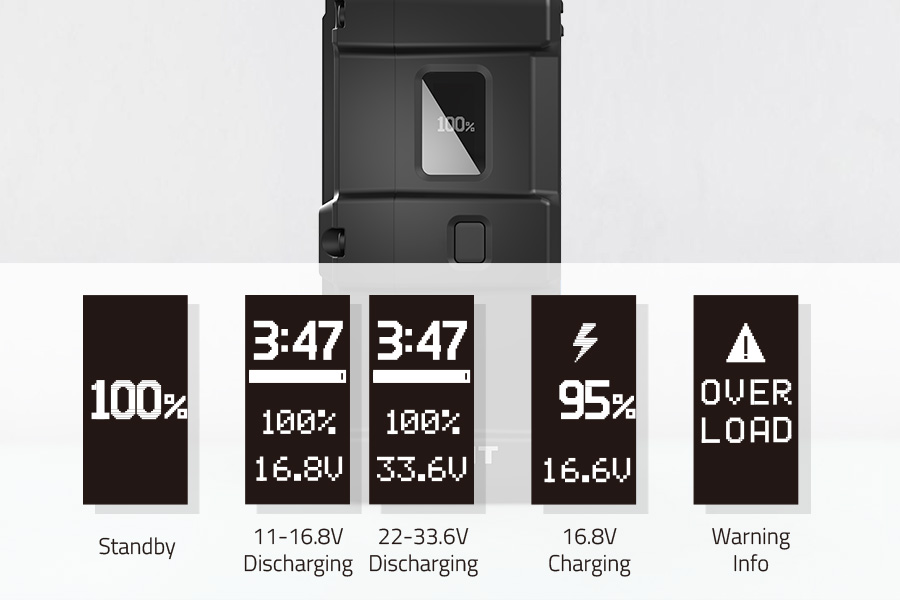

OLED Power Info Display
CIMO-D290S battery provides an OLED screen to display battery status and power information, includes output voltage, power percentage, remaining running time, and will display warning information when any abnormal detected.

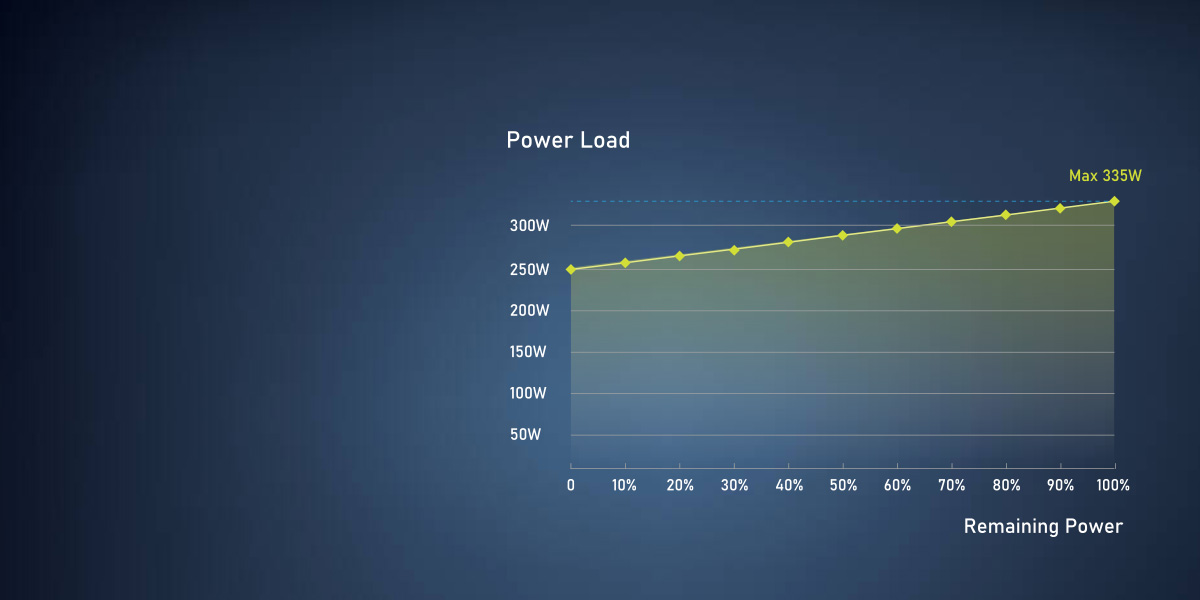

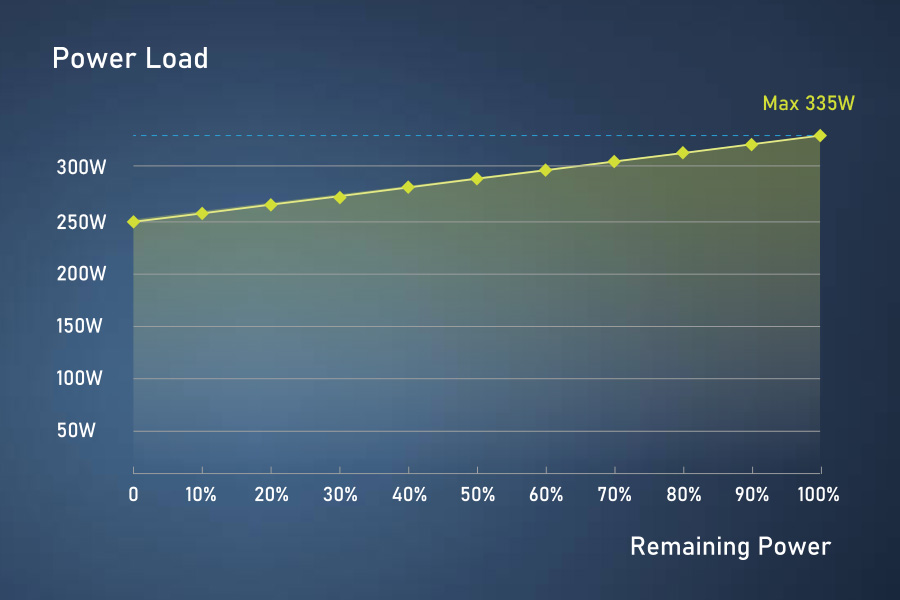

250W Constant / 335W Peak High Load Output
CIMO-D290S outputs at least 250W high load even at 1% capacity (Peak load up to 335W), to drive the power hungry devices.
Under the 28.8V high-voltage mode, the current output is only half of that in the 14.4V mode, which effectively protects the safety of the electrical devices and also extends the battery's service life.

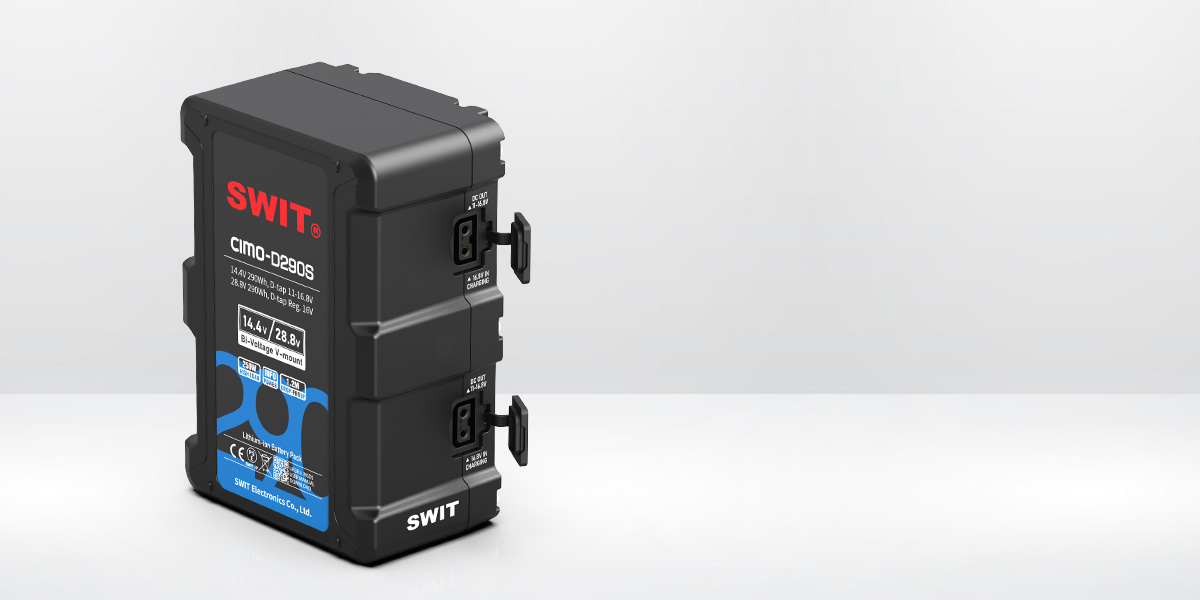

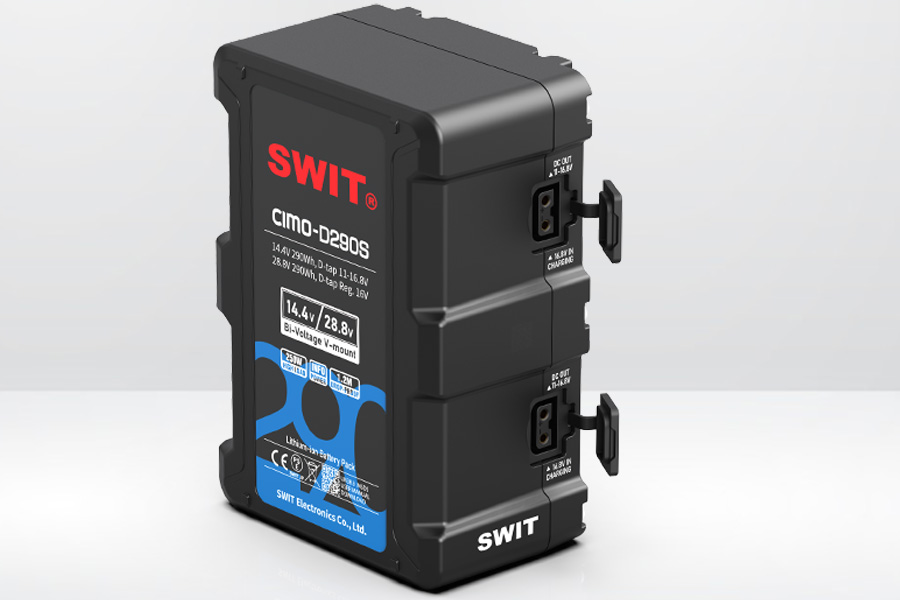

2× D-tap Power Socket
CIMO-D290S provides with 2x D-tap sockets.
In 14.4V mode, D-tap outputs 11-16.8V 150W 10A load;
In 28.8V mode, D-tap outputs regulated 16V, 100W 6A load.
You can also charge the battery via D-tap socket only when it’s in 14.4V mode: separate from the magnetic sticker.

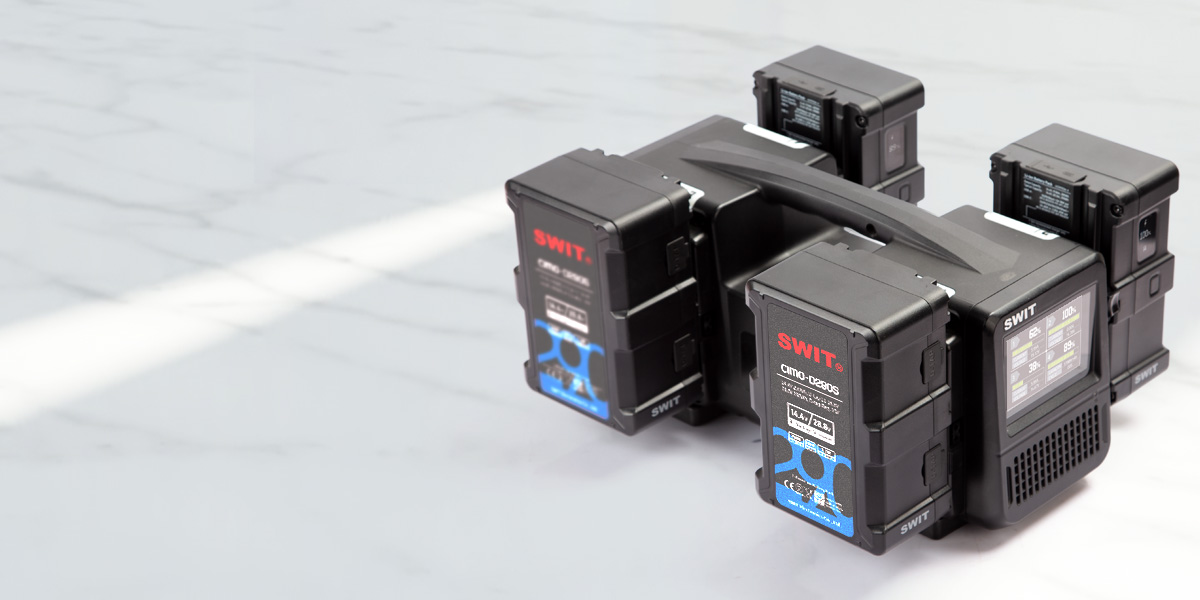

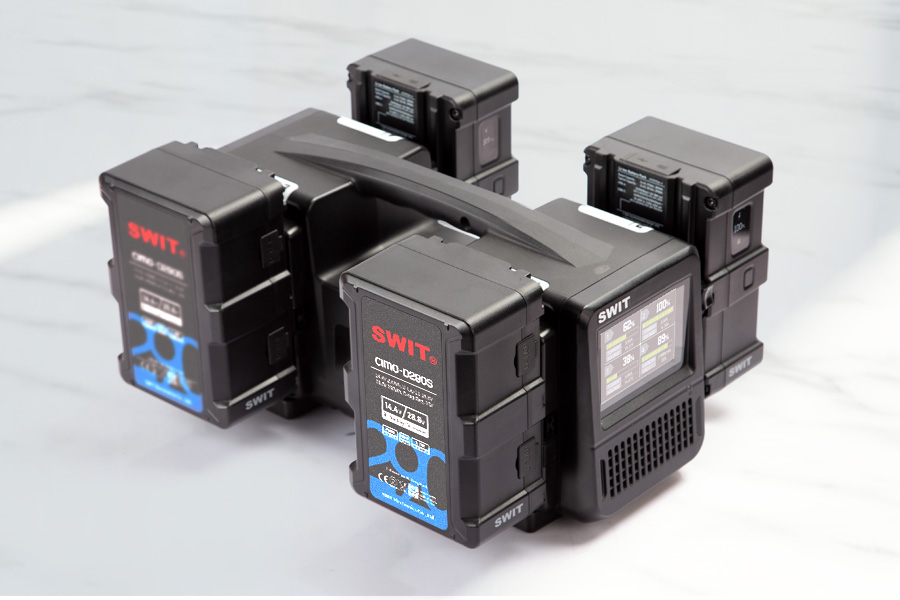

100W Fast Charging
CIMO-D290S supports 100W fast charging by SWIT PC-P461S / MATRIX-S8 / S-3812S chargers, twice the charging speed, and the 100W fast charging will not affect the lifespan of ternary lithium cells.
The 290Wh battery can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.

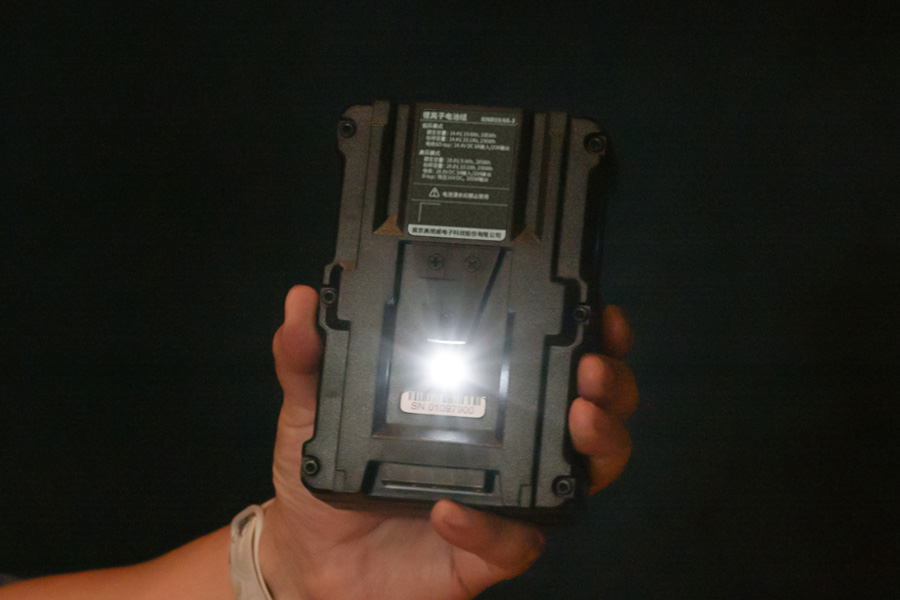

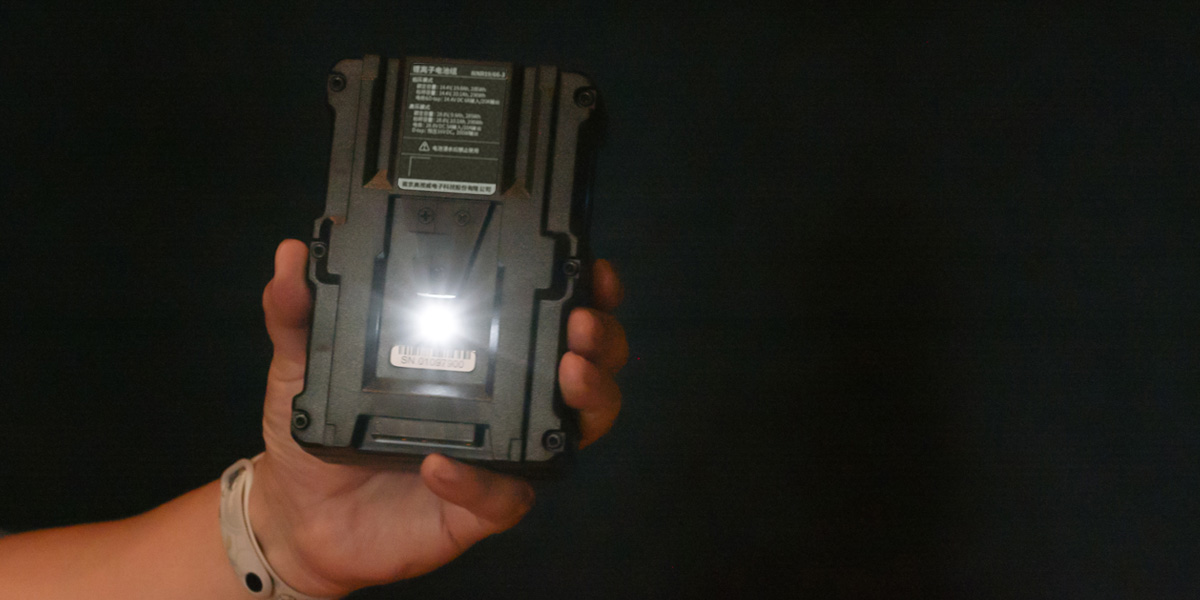

LED Torch
You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find V-mount plate in dark production environment.
Double press the Power Check button again to switch the light off, and it will be automatically switched off after 60 seconds.

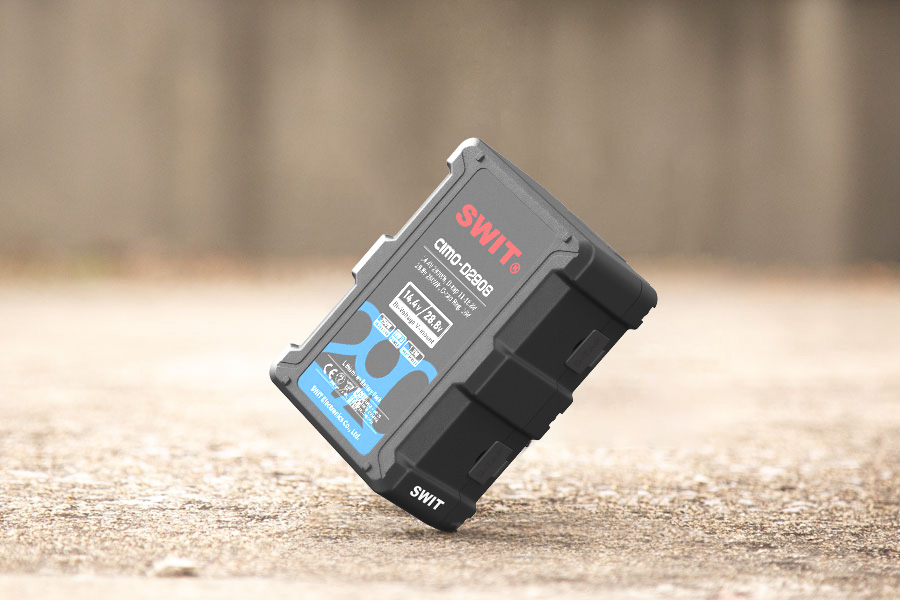

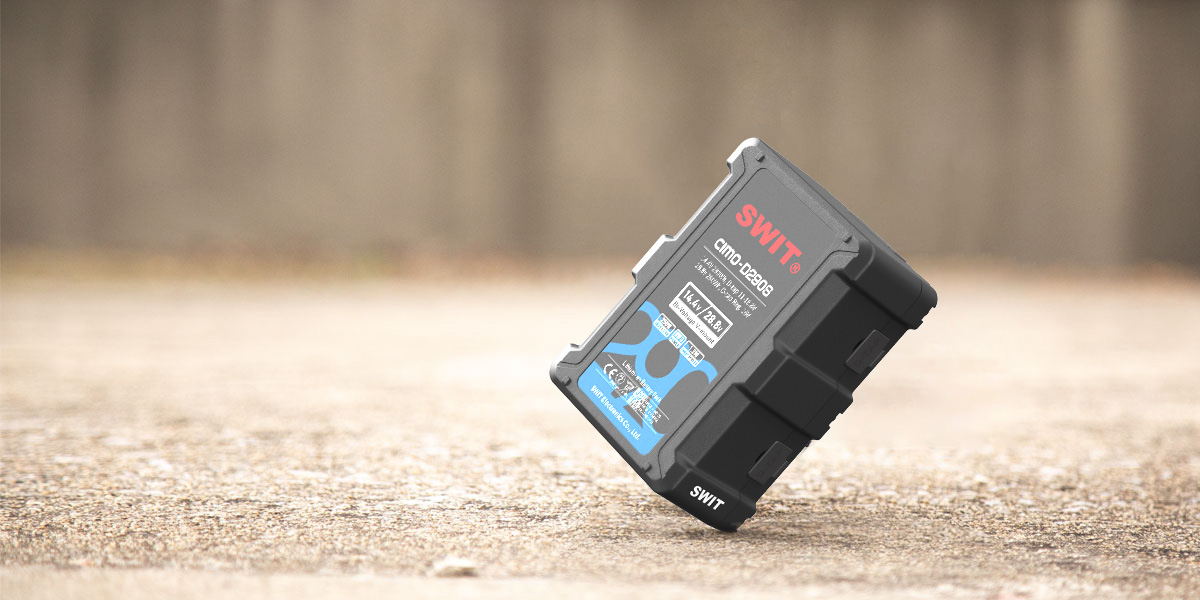

1.2 meters Drop-off Proof
CIMO series batteries are dual housing designed and can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Battery plate | V-mount |
Nominal voltage | 14.4V / 28.8V Bi-voltage |
Capacity | 290Wh |
Power Load | 250W constant; 335W peak |
D-tap IN/OUT | 14.4V Mode: 2× D-tap 11-16.8V output, 150W 10A in total Support 16.8V Charging through any D-tap |
28.8V Mode: 2×D-tap Regulated 16V output, 100W 6A in total Charging through D-tap not supported | |
Dimension | 144×100×67mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C |
Net weight | Net 1.52kg; With package 1.6kg |
