› Portable DMX-512 standard console
› 8× faders with A/B page switch to 16 channels
› 1× Master fader control all 16 channels
› 3-pin female DMX port with 5-pin converter
› AC-DC 9V 1A input, 2W power consumption
› Support 9V PP3 battery power
› 9.5-inch half rack size 3U install

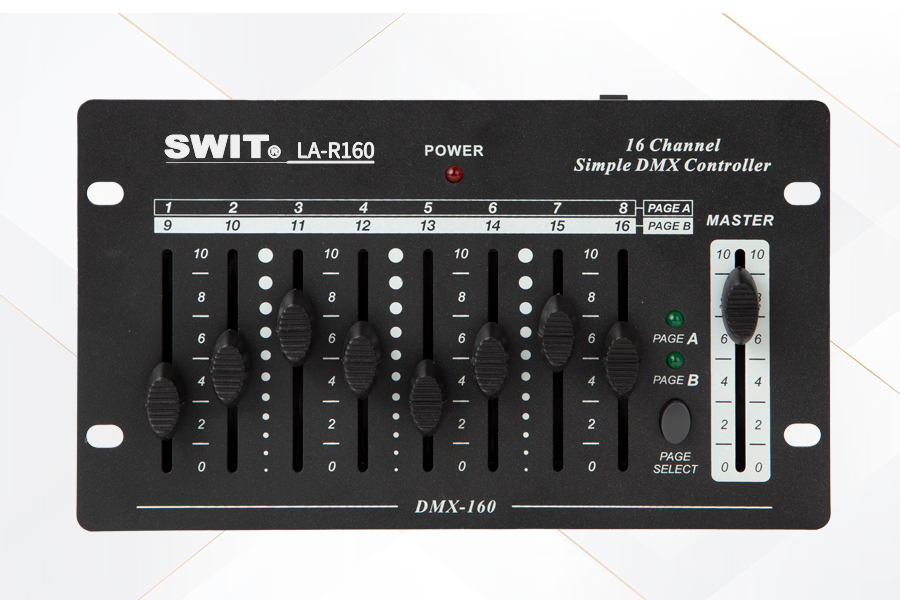

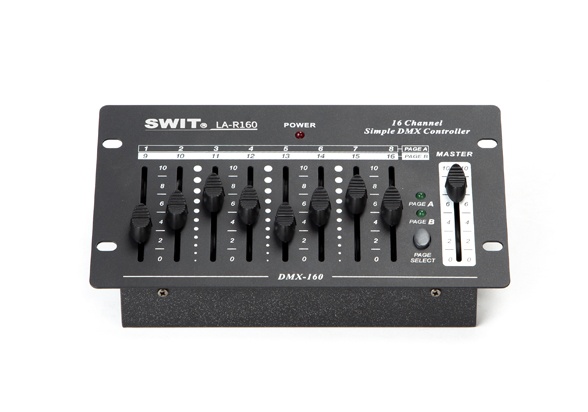

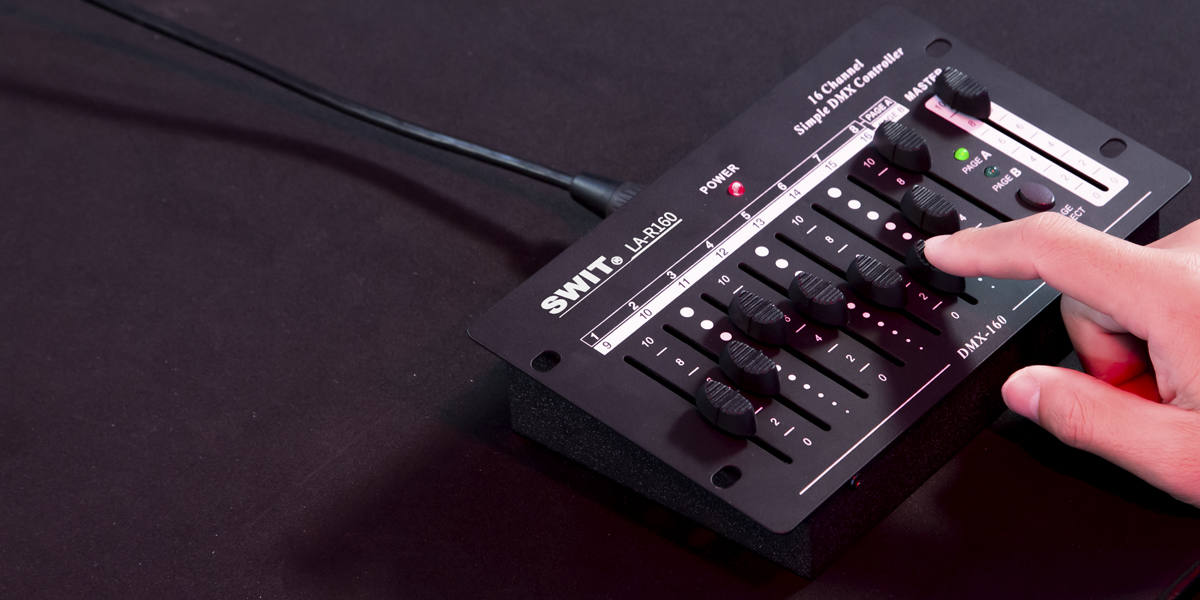

16-ch DMX Console
LA-R160 is a compact and user-friendly 16-ch DMX lighting console designed for simplicity without sacrificing capability. Fully compliant with the DMX512 protocol, built for anyone to start controlling lights instantly—no experience required.

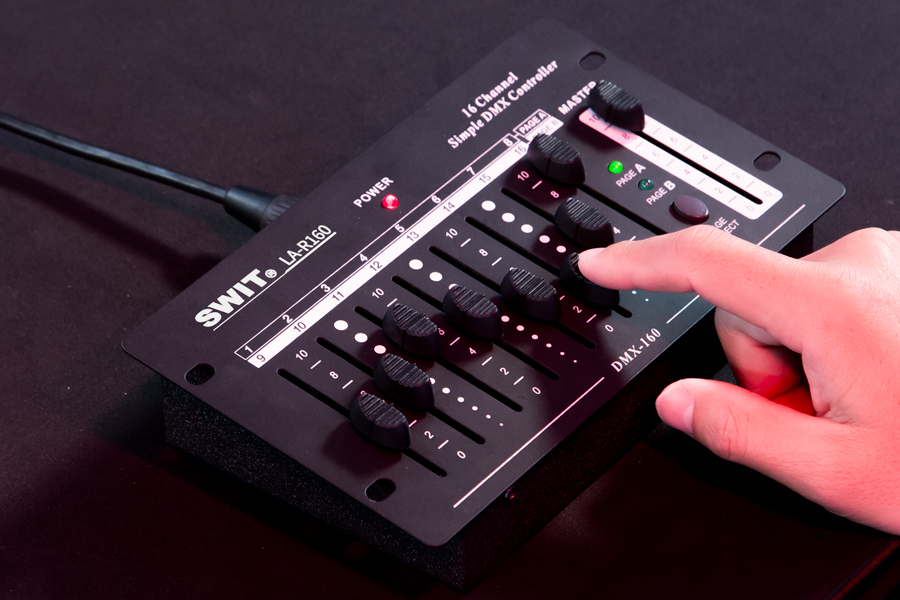

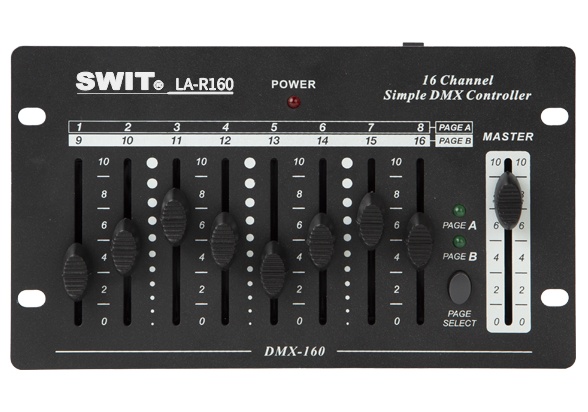

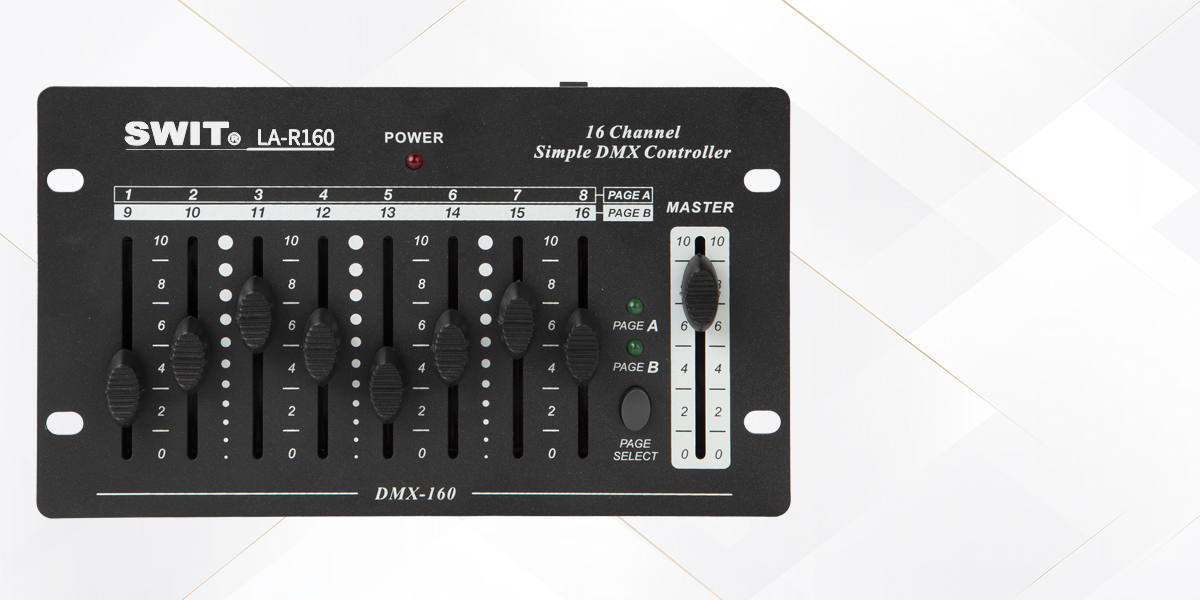

A/B Page Switching
LA-R160 provides 8 smooth faders,
and by A/B page switching, you can
seamlessly access and control 16×
DMX channels.
The dedicated MASTER fader gives
you instant overall control of the
intensity for all 16 channels.

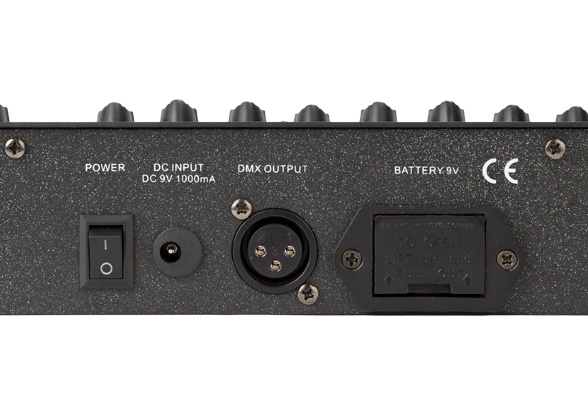

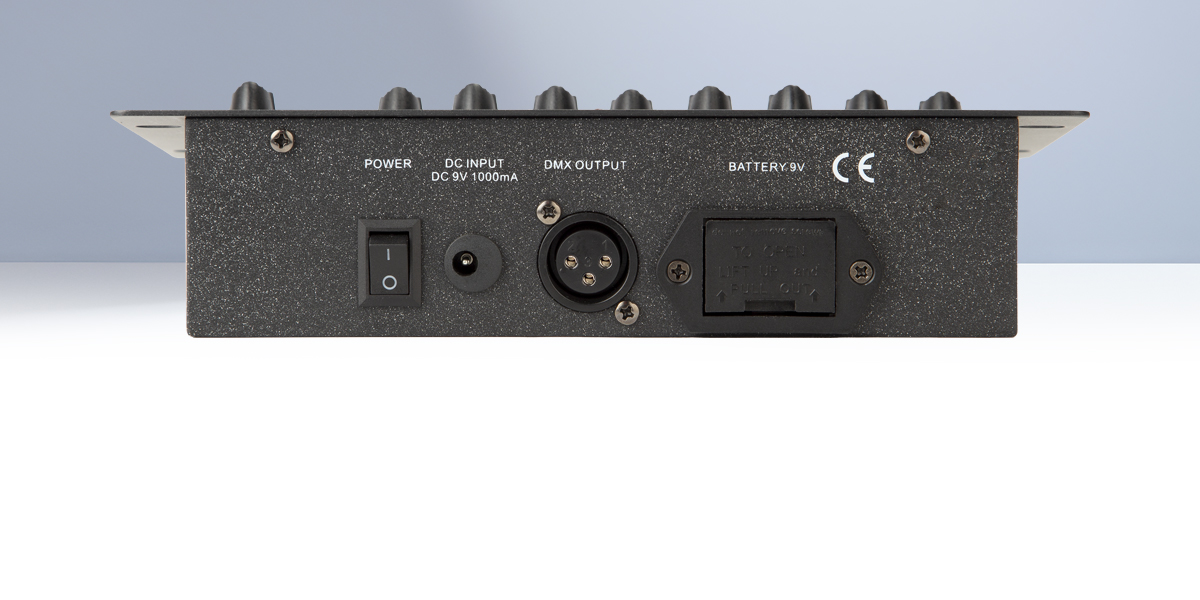

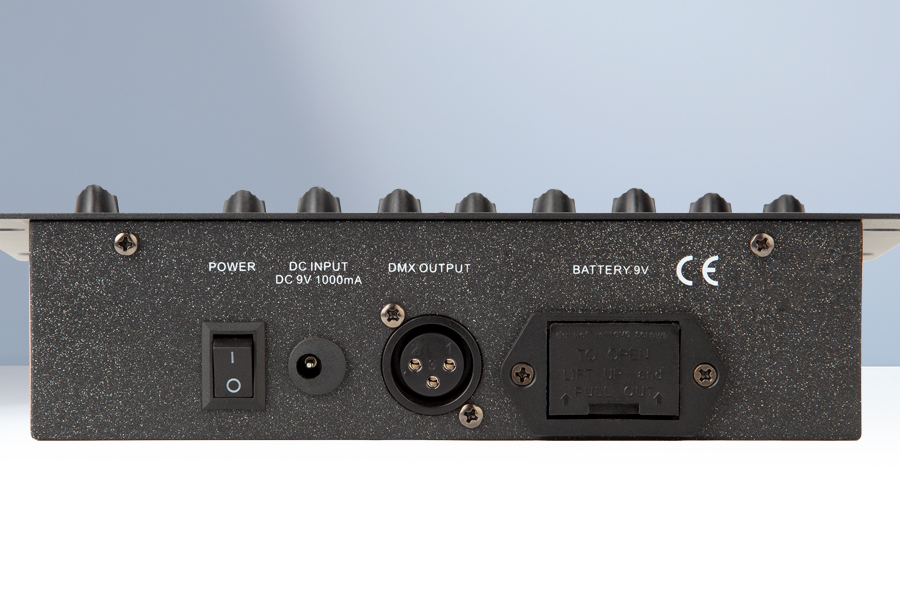

Interface
The DMX output adopts 3-pin XLR female port, and a 3-pin to 5-pin converter is provided in the
package, to ensure compatibility with a wide range of equipment. The power input port is a 9V 1A
DC barrel and supplied with a 100-240V AC adapter of UK/EU/US/AU plug standard option.

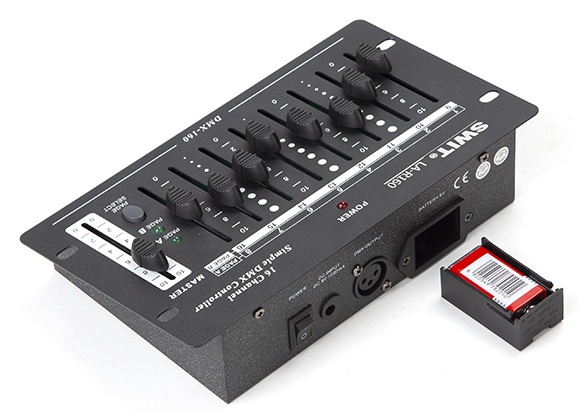

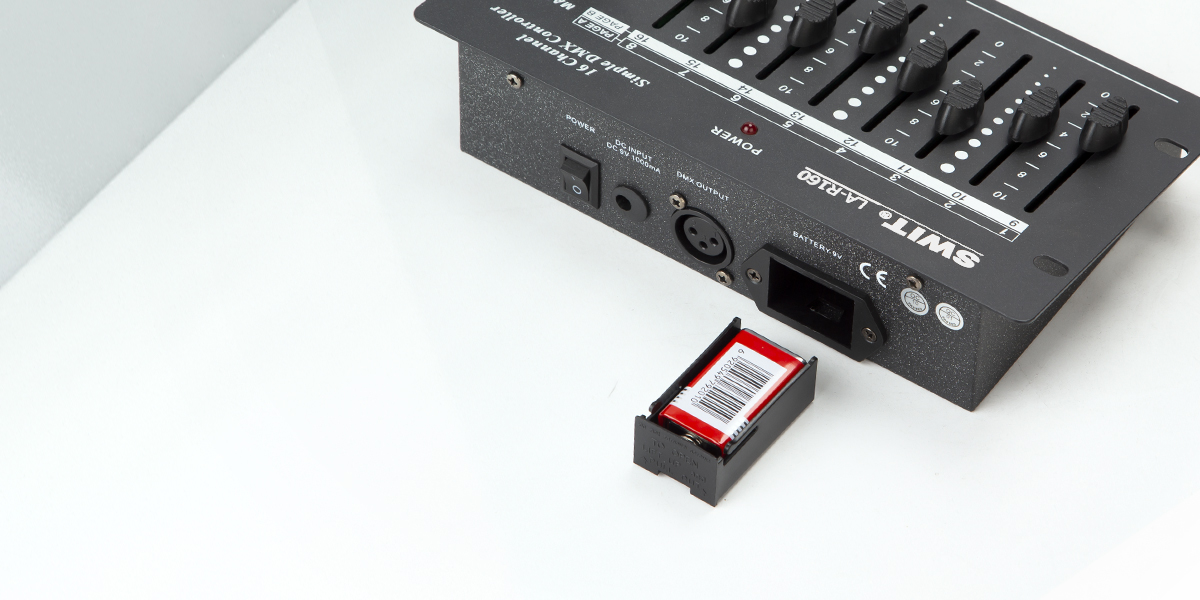

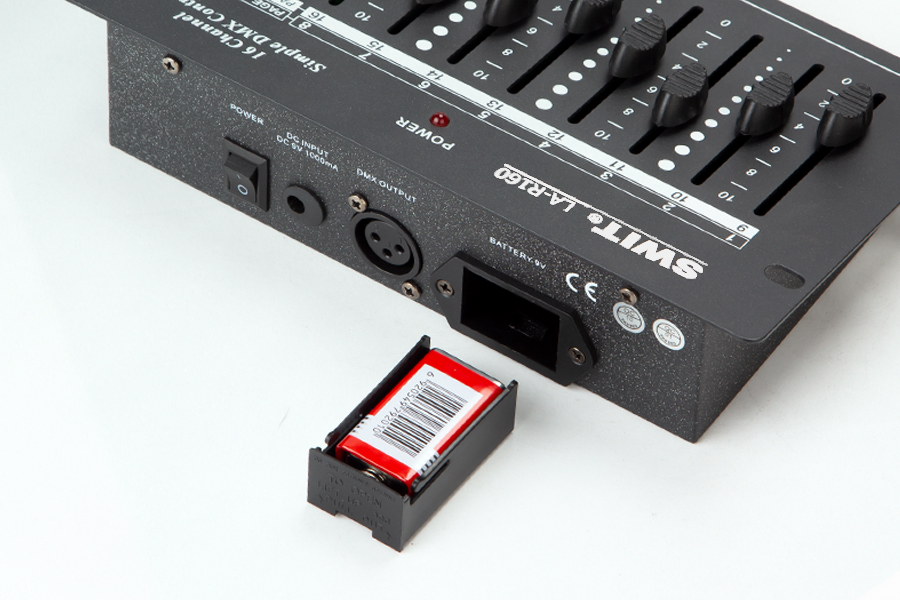

9V PP3 Battery Power
Unplug and create anywhere. The LA-R160 features an internal compartment for a standard 9V PP3 battery, providing true cable-free operation for at least 1 hour of continuous use. Perfect for mobile setups, quick adjustments on location, or as a reliable backup.
Channel | 16 |
Fader | 8 |
Master fader | 1 |
DMX | 3-pin XLR Female x1 |
DC power | DC 9V 1A in, provide with AC-DC adaptor |
Battery Power | 9V PP3 battery insert (battery not included) |
Dimension | 232×135×55mm |
Weight | Net 0.9kg |
MSRP
MSRP
MSRP
-

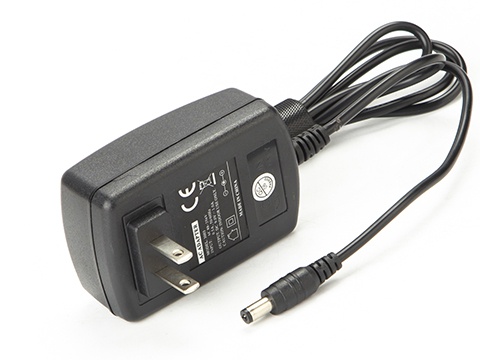

AC-DC 9V Adaptor EU UK US AU option
-

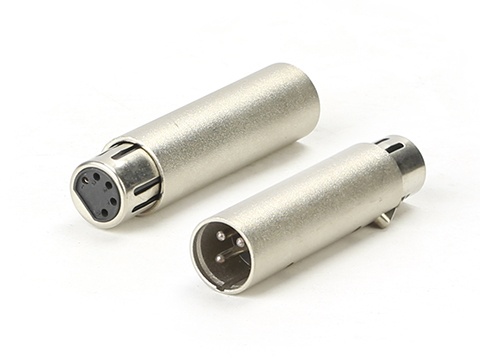

DMX 3-pin Male to 5-pin Female Converter
-
