LA-R240 24-ch DMX512 Light Console
› Standard DMX512 console with isolater
› 24x channel faders, 6x submaster, 1x master
› Up to 4 units serial connection to 96 channels
› LCD display DMX values of each channel
› Flash control buttons for each slider
› 19-inch rack mountable
24-ch DMX Console
LA-R240 is a Zero-basis operatable standard DMX512 light console of 24 channel faders, for broadcast studio and stage.
Interface

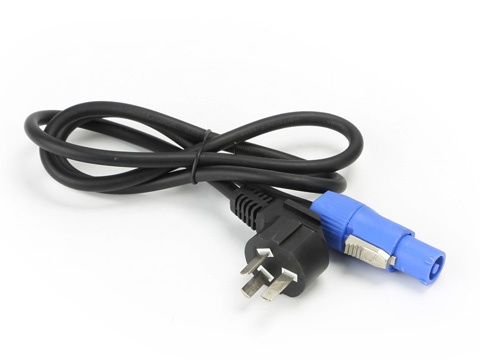

LA-R240 supports PowerCON AC 88-256V 50/60Hz input and loop output, RS232 remote control,
RJ45 serial link ports and DMX sockets of both 3-pin male and female.
Submaster and Master Control
LA-R240 provides 6x Submaster faders to group any of the
24 channels, and a Master fader to control all connected
lights. The LCD displays exact values of every DMX channel,
and has FINE +/- buttons to fine adjust slide values.
Serial Connection to Max 96-ch
You can connect up tp 4x LA-R240 by RJ45 cables, to expand DMX channels to Max 96. The Master unit is in charge of DMX 1-24, and the Slave units are DMX 25-48, 49-72 and 73-96.
Channel | 24 |
Submaster | 6 |
Master | 1 |
DMX | 3-pin XLR Female x1; Male x1 |
Serial connection | 4 units, Max 96-ch |
Power | PowerCON AC 88-256V 50/60Hz IN x1; LOOPx1 |

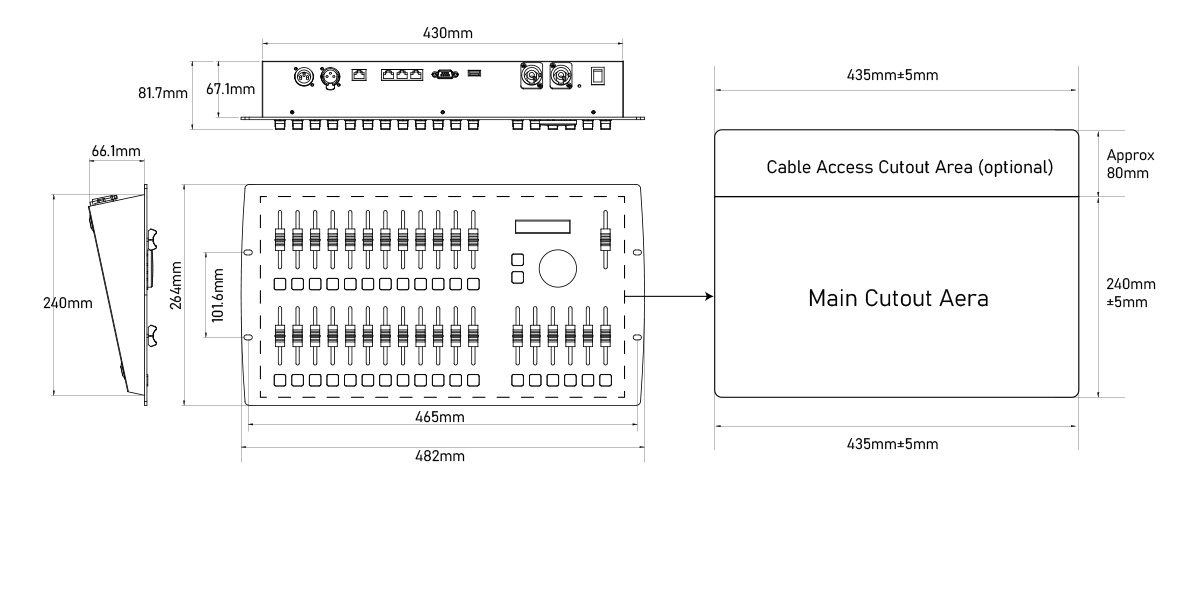

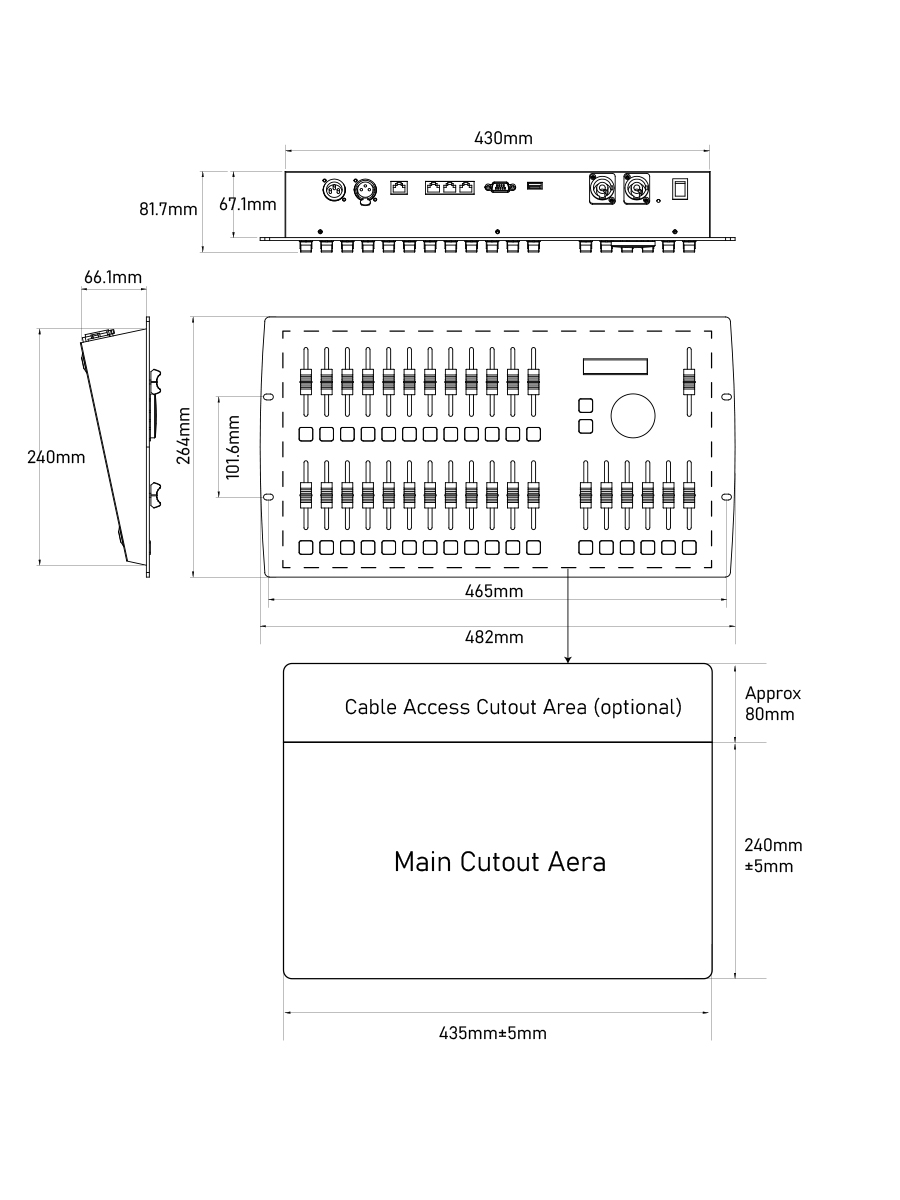

Dimension | 482×265×75mm |
Weight | Net 2.65kg; With package 4kg |
MSRP
MSRP
MSRP
-
LA-R480
48-ch DMX512 Light Console
24x channel faders with A/B switch, 6x Submaster, 1x Master, 4 units serial connection to 192-ch
-
RadioLux
Professional Wireless DMX Transmission
915MHz license-free Stable Wireless, 500 meters, 0.03s latency, DMX512 channels
-

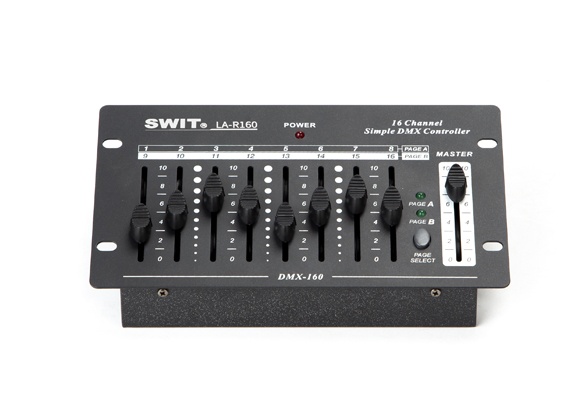

LA-R160
