› Li-ion battery of 7.2V nominal voltage
› For Panasonic AU-EVA1, AG-DVX200, etc
› Comparable to Panasonic VW-VBD58
› Comparable to Panasonic AG-VBR59
› Can be charged by Panasonic DE-A88
› Can be charged by SWIT S-3602D
› 43Wh / 6000mAh capacity
› 4-level LED power indicator
› 7.2V Pole-tap DC output
› 5V/1A USB charging output
› Multiple circuit protections
Panasonic EVA1, DVX200 Compatible
Similar battery for Panasonic VW-VBD58/AG-VBR59
S-8D58 is the replacement battery for Panasonic VW-VBD58
or AG-VBR59, compatible with Panasonic AU-EVA1,
AG-DVX200 and AJ-PX270/285, etc.
43Wh/6000mAh Capacity
With 7.2V nominal voltage, the S-8D58 has 43Wh / 6000mAh capacity,
and can run more than 2 hours on AU-EVA1 camcorder.
Build-in Pole-tap DC Socket
For DC output or Charging input
A 5.5/2.1mm pole-tap DC output socket is equipped on the S-8D58
battery, for DC 7.2V (Nominate) connection. You can connect
on-camera LED light, monitor or wireless transmitter on the
pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 30W, 4A.
Build-in 5V/1A USB Socket
Use S-8D58 as Power Station to your cell phone!
It’s rather a fantastic function to have a USB socket on the
DV battery!
Connect your smart phone or pad to the USB socket, press the “Check”
button, and then the S-8D58 starts to output 5V/1A power to charge your
devices!
4-level LED Power Indicator
The S-8D58 battery has the 4-level
LED power indicators to check the
battery remaining capacity.
You can get a quick view of capacity
before using.
Easy Charging

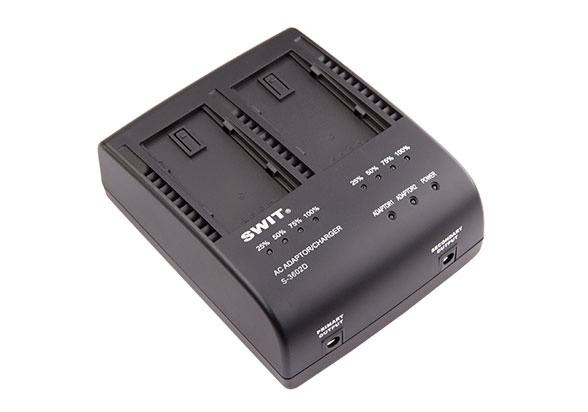

The S-8D58 can be charged on Panasonic original charger
DE-A88, and SWIT also provides the Dual channel charger
S-3602D or 4-ch charger LC-D421 for S-8D58, will take about 4 hours to charge from
empty to 100%.
Nominal Voltage | 7.2V |
Capacity | 43Wh, 6000mAh |
Max output power | Total: 30W, 4A |
Pins: 25W,3.5A | |
| Pole-tap: 30W, 4A | |
| USB: 5W (5V / 1A) | |
Compatible cameras | Panasonic AU-EVA1 |
| Panasonic AG-DVX200 | |
| Panasonic AJ-PX270 | |
Panasonic AJ-PX285 | |
Dimension | 41×70×64mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Net 235g; With package0.25kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
1. Warranty Period
We provide 1 year conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party 5.5/2.1 barrel DC head charger of reversed polarity connections and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
