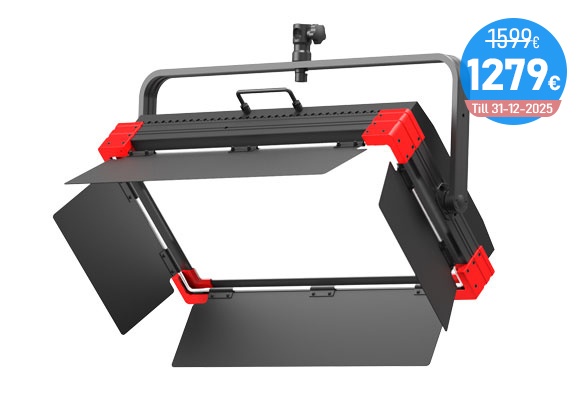

PL-S300D 300W Bi-color Studio SMD Panel LED Light

›  1200pcs ultra bright long-life SMD LEDs

›  2x1' size, 300W, 10,000Lux @1m ultra bright

›  No fans, no noise

›  Linear, Log, Exponential, S- dimming curves

›  2700K-6500K continuously adjustable

›  Color rendering CRI 96, TLCI 99, SSI(D55)75

›  DMX512 controlled color and dimmer

›  LCD display color and dimmer value

›  PowerCON True1 AC in and loop out

›  3-pin XLR DC 48V in

›  4-leaf metal barn doors and Yoke bracket

›  Optional Honeycomb/Softbox/Pole-operated Yoke

Features

300W Soft Ultra Bright Studio Panel

PL-S300D is a 300W 2:1 Bi-color SMD-LED soft light, 10,000Lux @ 1m high intensity and half-peak 64° wide beam angle for large scale broadcast studios, film sets, and event stage lighting.



10,000Lux @ 1m High Bright and Soft

The 300W soft light produces high illuminace of 10,000Lux @1m, 63° half-peak, applied for head light, key light, and background light in large-scale studios, comference hall, etc.



2700K-6500K Continuously Adjust

PL-S300D consists of 300W 2700K LEDs and 300W 6500K LEDs, and can be continuously adjusted between 2700K and 6500K, and output 300W power at any color temperature.

No Fan, No Noise

With SWIT's unique heat dissipation design, this high-power studio light utilizes passive cooling structure, can be full-power operated without the need for fans, ensuring zero noise in the studio environment.

Accurate Color Render

CRI 96; TLCI 99; SSI(D55) 75

These high color rendering indexes ensure that objects illuminated by the light retain their true colors, both to the human eye and in camera lenses.

Dimming Curves Selection

PL-S300H offers 4 dimming curves: linear, exponential, logarithmic, and S-curve for selection, enabling precise and smooth dimming control.

DMX, AC / DC Interfaces

PL-S300D provides 5-pin XLR DMX512 in & out, and supports USB-A 5V out to power wireless DMX receiver. The light provides PowerCON True1 AC in and loop out for serial connection in the studio project, and also support 3-pin XLR DC48V power input for field application.

LCD Display and Menu Operation

Accessing the menu allows users to separately set the DMX addresses for dimmer and color temperature, select and configure lighting effects, choose dimming curves, and support system reset, USB firmware upgrades, and more.



Optional Accessories



LED

1200pcs SMD LEDs

illuminance

10,000Lux @ 1m

Beam angle

120° (64° half peak)

Color Temperature

2700K ~ 6500K

Color Render

CRI 96; TLCI 99; SSI (D55) 75

DMX

5-pin XLR IN & OUT

Input Voltage

PowerCON True1 AC100-240V IN & OUT

3-pin XLR DC 48V IN

Power

300W

Dimension

543×301×100mm

Lighting area

484×242mm

weight

Net 9.74kg
Basic Package

MSRP

MSRP

MSRP

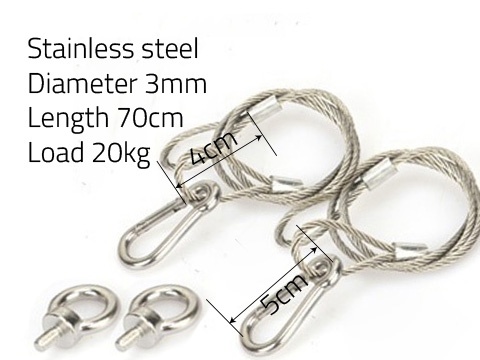

  • Safety rope

  • PowerCON TRUE1 AC cable

  • Barn door kit

  • PA-LC20

    PowerCON TRUE1 loop out cable, 2meters, 16A load

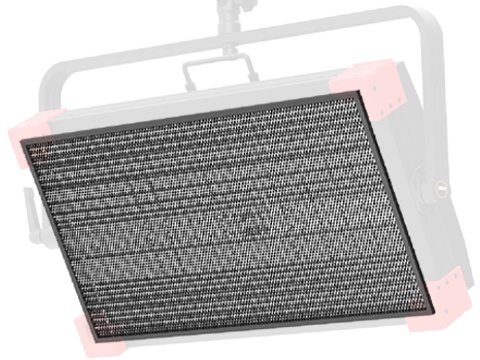

  • LA-GS150

    40° HoneyComb, to replace the standard barndoor kit, quick assemble and disassemble.
  • LA-BX300

    Softbox diffuser, 6000Lux@1m on PL-S300D
  • LA-POS150

    2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Compatible with PL-S150D, PL-S300D, PL-S300H
  • CL-120D

    120W 2:1 Bi-color SMD LED panel light

    3700Lux@1m, CRI 98 TLCI 99, 2700-6500K, DMX control

  • PL-S150D

    150W Bi-color Studio SMD LED Light

    5500Lux @ 1m high intensity, Smooth Exponential dimming curve, CRI 97 TLCI 99 SSI 73

  • CL-100D

    100W Bi-color Studio SMD Panel LED Light

    2:1 size, 3300Lux@1m, 2700-6500K, DMX, CRI 97 TLCI 99, AC IN & OUT

  • PL-S300H

    300W Hard Bi-color Studio Panel LED Light

    47,000Lux@1m ultra bright, large studio applications
