› 4-ch simultaneous charging
› 2A charging current per channel
› Snap-on exchangeable DV plates
› Mixed types of DV batteries charging
› U/F/D/B/C/I/V/E plates supported
› 4-LED charging indicators
![](https://www.swit.cc/uploads/image/LC-D421/LC-D421-5.jpg)
![](https://www.swit.cc/uploads/moimage/mLC-D421/LC-D421-5.jpg)
4-channel DV Charger
2A per channel
LC-D421 can charge 4 DV batteries simultaneously,
with 2A charging current per channel. Users can
exchange different types of battery plate to charge
different types of DV batteries together.
![](https://www.swit.cc/uploads/image/LC-D421/LC-D421-6.jpg)
![](https://www.swit.cc/uploads/moimage/mLC-D421/LC-D421-6.jpg)
Exchangeable DV Plates
You can select the following snap-on quick exchangeable DV
plates to mount on LC-D421, to charge different batteries:
KA-C10U: SONY BP-U type
KA-C10F : SONY NP-F type
KA-C10D : Panasonic CGA, AG-VBR59
KA-C10B : Panasonic VW-VBG6
KA-C10C: Canon BP-945 type
KA-C10I: SSL-JVC50 type
KA-C10V : JVC BN-VF823 type
KA-C10E : Canon LP-E6
![](https://www.swit.cc/uploads/image/LC-D421/LC-D421-7.jpg)
![](https://www.swit.cc/uploads/moimage/mLC-D421/LC-D421-7.jpg)
LED Charging Indicators
LC-D421 charger has 4-LED indicators for
each charging channel, and display the re-
al-time battery capacity level.
In case of the 4 LEDs are all flashing or all
off, please check the connection condition
of the batteries and plates, and restart the
charger.
Input | 100~240VA, 50/60Hz |
Power consumption | power 100W |
Charging output | DC 16.8V, 2A×3 or 1.5A×4 for 14.4V batteries DV 8.4V, 2A×4 for 7.2V DV batteries |
Working temperature | 0°C~+40°C |
Working humidity | 10%~90% |
Dimensions | 220mm×125mm×69.3mm |
Net weight | Net 706g; With package 1.04kg |
-
KA-C10F
SONY NP-F DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -
KA-C10U
SONY BP-U DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -
KA-C10D
Panasonic CGA/VBD DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -
KA-C10E
Canon DSLR Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -
KA-C10C
Canon BP DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

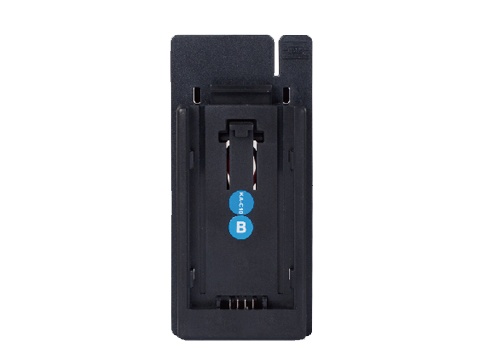

KA-C10B
Panasonic VBG DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -
KA-C10i
JVC SSL DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -
KA-C10V
JVC BN-VF DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable.
-
LB-SU98
SONY BP-U Camcorder Battery Pack
98Wh, for SONY PXW-FX6 FX9, PXW-Z280/Z190, PXW-X280, PXW-FS5/FS7; D-tap output, USB output; LED power indicators,
-

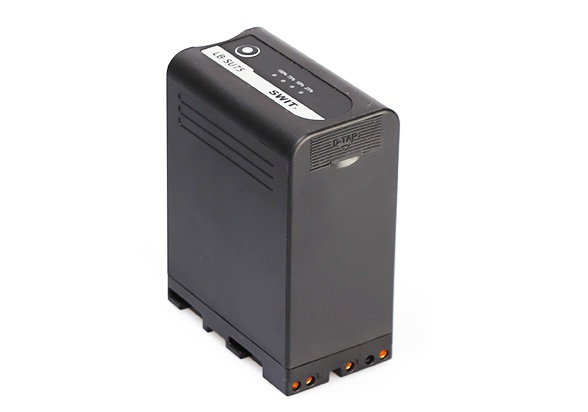

LB-SU75
SONY BP-U Camcorder Battery Pack
75Wh, for SONY PXW-FX6 FX9, PXW-Z280/Z190, PXW-X280, PXW-FS5/FS7; D-tap output, USB output; LED power indicators,
-
LB-SU90C
SONY BP-U Series Battery Pack
90Wh, with D-tap and USB-C 45W in and out, SONY FS5/FS7, FX6/FX9, Z280/X280 etc
